MÄDLERMÄDLER· Timing Belts and Pulleys
Neoprene timing belt 100 MXL 012 125 teeth Lw 254.00mm belt width 3.2mm
Manufacturer part no. 18165000
$3.62≈ 3.14 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €3.14 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.63 |
| Total delivered | €21.77 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Belt width | 3.2 mm |
| No of teeth | 125 |
| Nominal length | 10 |
| Type | 100 MXL |
| Material | Neoprene |
| Profile | MXL |
| Surface | Blank |
| Weight | 3.4 g/m |
Description

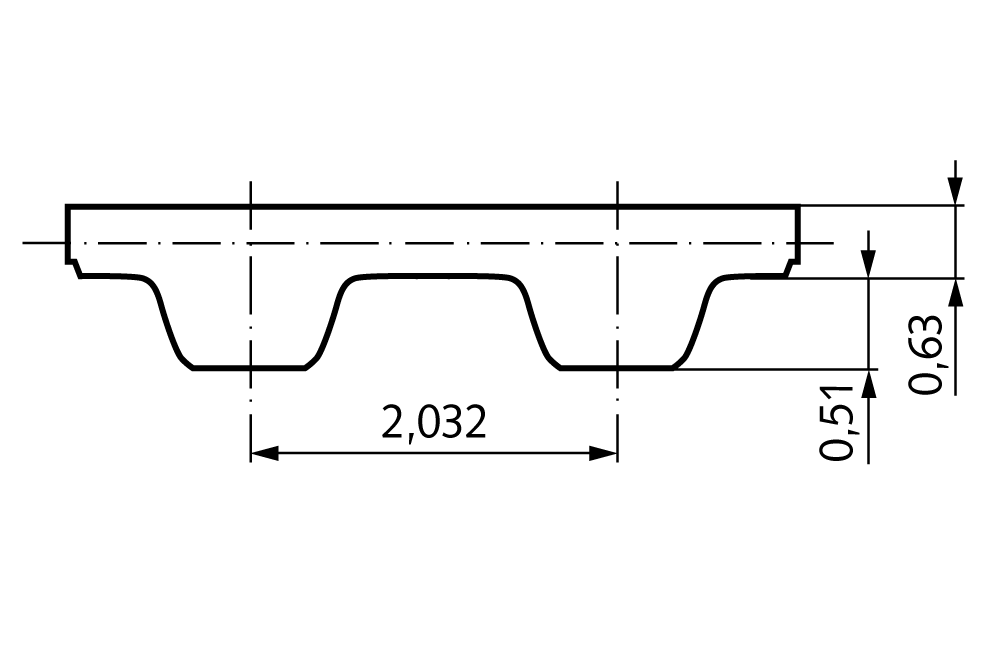

Material: Neoprene with glas-fibre tensile member. Teeth surface fabric-coated. Timing belt with inch dimensions, classical shape with trapezoid teeth. Profile MXL = 0,08" = 2.032 mm. Belt width 012 = 3.2mm. Temperature range -20º to +100ºC.
