MÄDLERMÄDLER· Bevel Gears, Worm Wheels, Worms

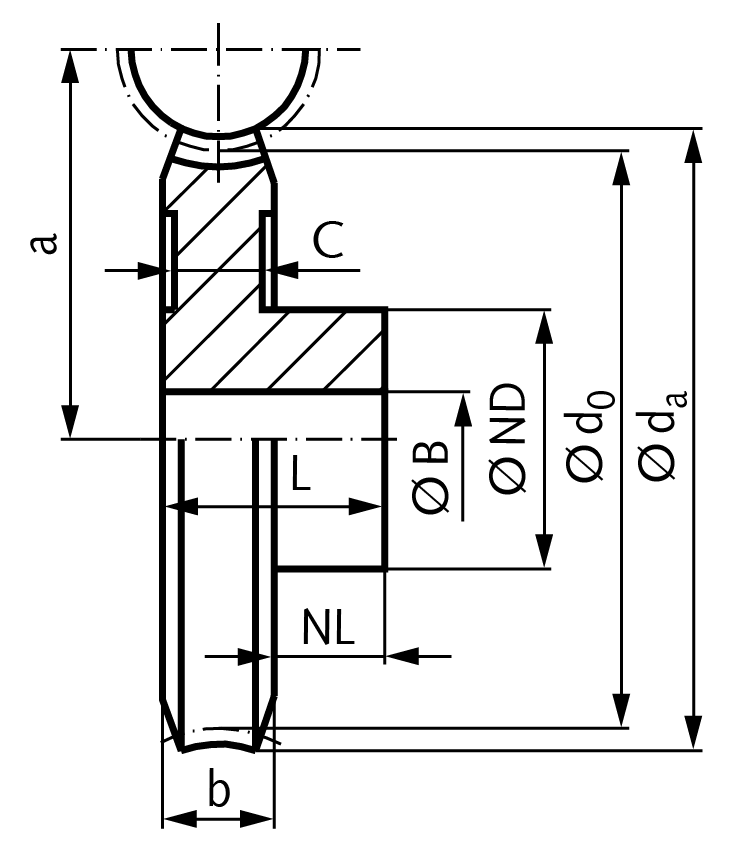

Worm wheel made of bronze module 0.5 50 teeth single-thread right hand
Manufacturer part no. 30002000
$26.53≈ 23.04 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €23.04 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.61 |
| Total delivered | €45.65 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 16 g |
Other characteristics
| Bore | 4 mm |
| Max torque | 0.87 Nm |
| No of teeth | 50 |
| Outer diameter | 26.2 mm |
| Material | Bronze |
| Ratio | 50 : 1 |
| Surface | Blank |
Description
Material: G-CuSn12, with milled out, hollow teeth. With one-sided hub. Single-thread worm gears to be paired with single-thread worms. If the module (and number of threads) are matching, various ratios at various axle distances can be realized. Pressure angle 20°. Efficiency: approx. 0,53. Limited self-locking capacity.
