MÄDLERMÄDLER· Bevel Gears, Worm Wheels, Worms

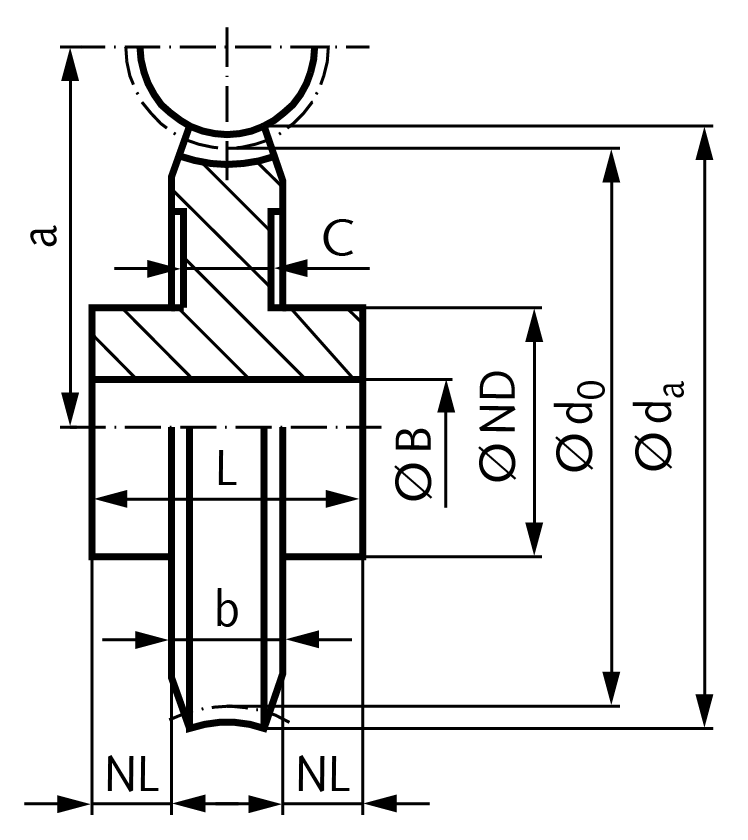

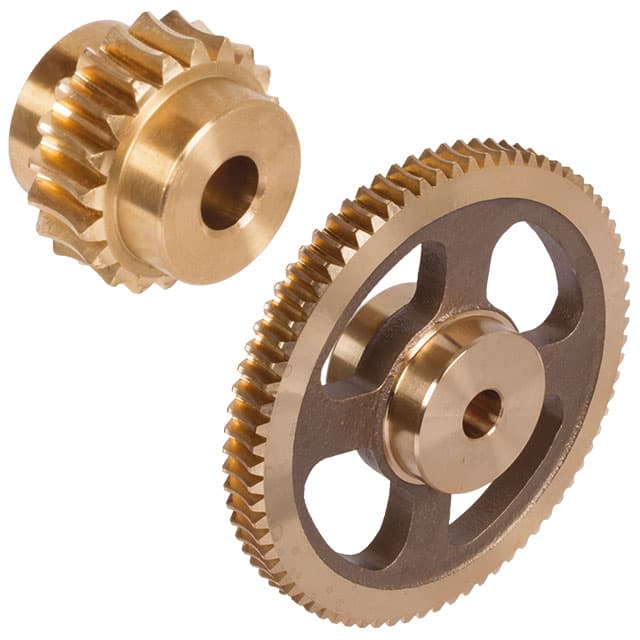

Worm wheel made of bronze module 1.5 18 teeth double-thread right hand
Manufacturer part no. 30120600
$58.93≈ 51.18 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €51.18 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €13.24 |
| Total delivered | €79.42 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 80 g |
Other characteristics
| Bore | 8 mm |
| Max torque | 0.7 Nm |
| No of teeth | 18 |
| Outer diameter | 31.7 mm |
| Material | Bronze |
| Module | 1.5 double-thread RH |
| Ratio | 9 : 1 |
| Surface | Blank |
Description
Material: G-CuSn12, with milled out, hollow teeth. With double-sided hub. Double-thread worm gears to be paired with double-thread worms. If the module (and number of threads) are matching, various ratios at various axle distances can be realized. Pressure angle 20°. Efficiency: approx. 0,49/0,65. Not self-locking.
