MÄDLERMÄDLER· Bevel Gears, Worm Wheels, Worms

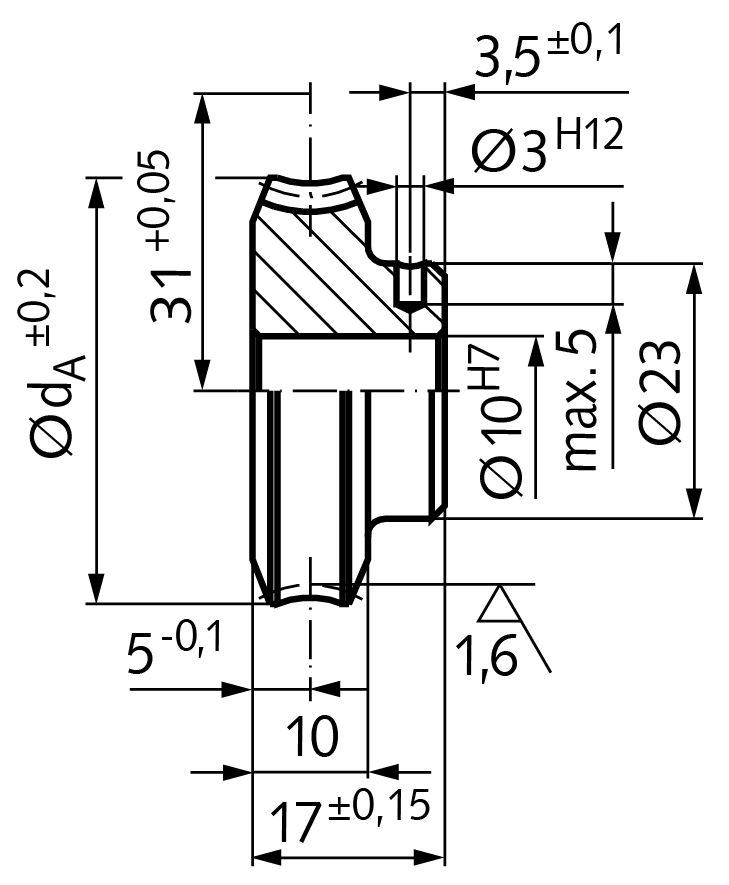

Precision worm wheel centre distance 31mm i=15 30 teeth
Manufacturer part no. 32101500
$67.51≈ 58.63 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €58.63 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €14.73 |
| Total delivered | €88.36 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 145 g |
Other characteristics
| Max torque | 10.7 Nm |
| Module | 1.5 |
| No of teeth | 30 |
| Outer diameter | 50 mm |
| Helix angle | 10°40 ° |
| Material | Brass |
| Ratio | 15 : 1 |
| Surface | Blank |
Description
Material: Special brass CuZn37Mn3Al2PbSi/So. Pressure angle 15°. The gear wheels can only be used with worms having the same centre distance and the same transmission. * Worm only polished – worm gear with helical gearing. ** The figures stated for the efficiency are only reference values, since – besides the lead angle – also mounting, lubrication, speed and assembly have an influence on the efficiency.
