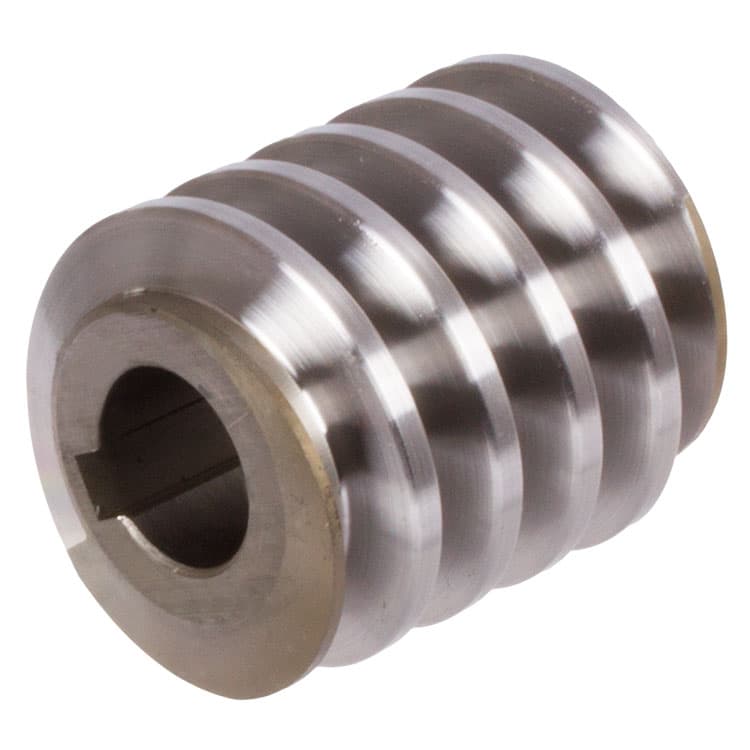

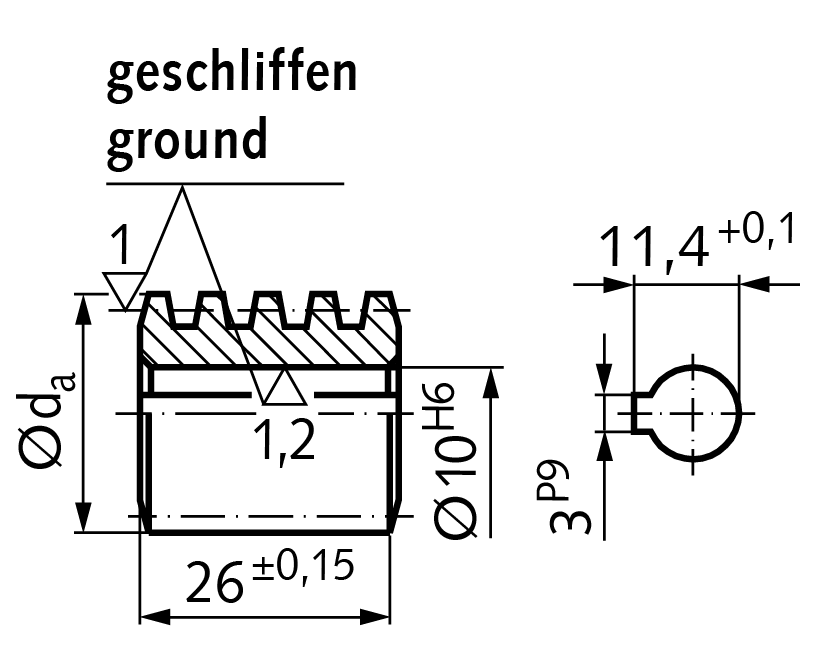

Precision worm centre distance 40mm i=30
Manufacturer part no. 32243000
$74.60≈ 64.79 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €64.79 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €15.96 |
| Total delivered | €95.75 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 42 g |
Other characteristics
| Level of efficiency | 0.51 eta |
| Module | 2 |
| No of threads | 1 |
| Outer diameter | 23.68 mm |
| Material | Steel (12L13) |
| Pitch angle | 5°50 ° |
| Ratio | 30 : 1 |
| Surface | Ground finish |
Description
Material: Steel 11SMnPb37 (1.0715), inspected for fissures, case hardened HV 620-700, ground. Pressure angle 15°. The worms can only be used with gear wheels having the same centre distance and the same transmission. Can be built into gear systems, no reworking required, thus short assembly times. The figures stated for the efficiency are only reference values, since – besides the lead angle – also mounting, lubrication, speed and assembly have an influence on the efficiency.
