MÄDLERMÄDLER· Bevel Gears, Worm Wheels, Worms

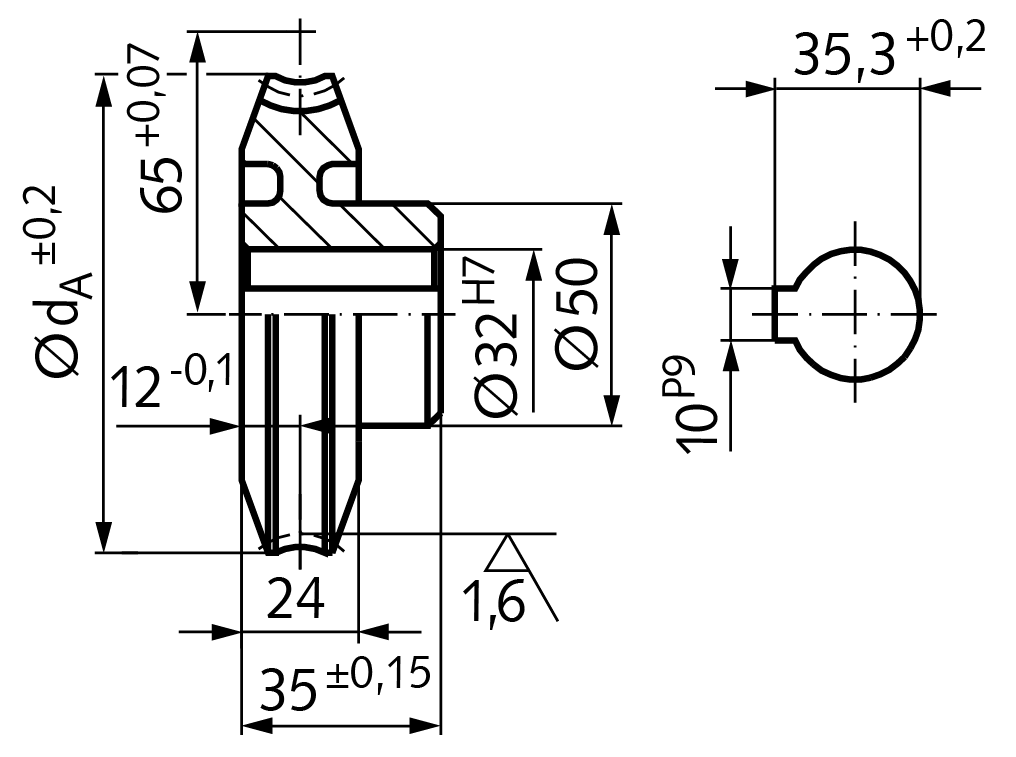

Precision worm wheel centre distance 65mm i=50 50 teeth
Manufacturer part no. 32335000
$205.81≈ 178.73 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €178.73 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €38.75 |
| Total delivered | €232.48 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.2 kg |
Other characteristics
| Max torque | 137 Nm |
| Module | 2 |
| No of teeth | 50 |
| Outer diameter | 108 mm |
| Helix angle | 3°51 ° |
| Material | Brass |
| Ratio | 50 : 1 |
| Surface | Blank |
Description
Material: Special brass CuZn37Mn3Al2PbSi/So. Pressure angle 15°. The gear wheels can only be used with worms having the same centre distance and the same transmission. Can be built into gear systems, no reworking required, thus short assembly times. ** The figures stated for the efficiency are only reference values, as besides the lead angle, also mounting, lubrication, speed and assembly have an influence on the efficiency.
