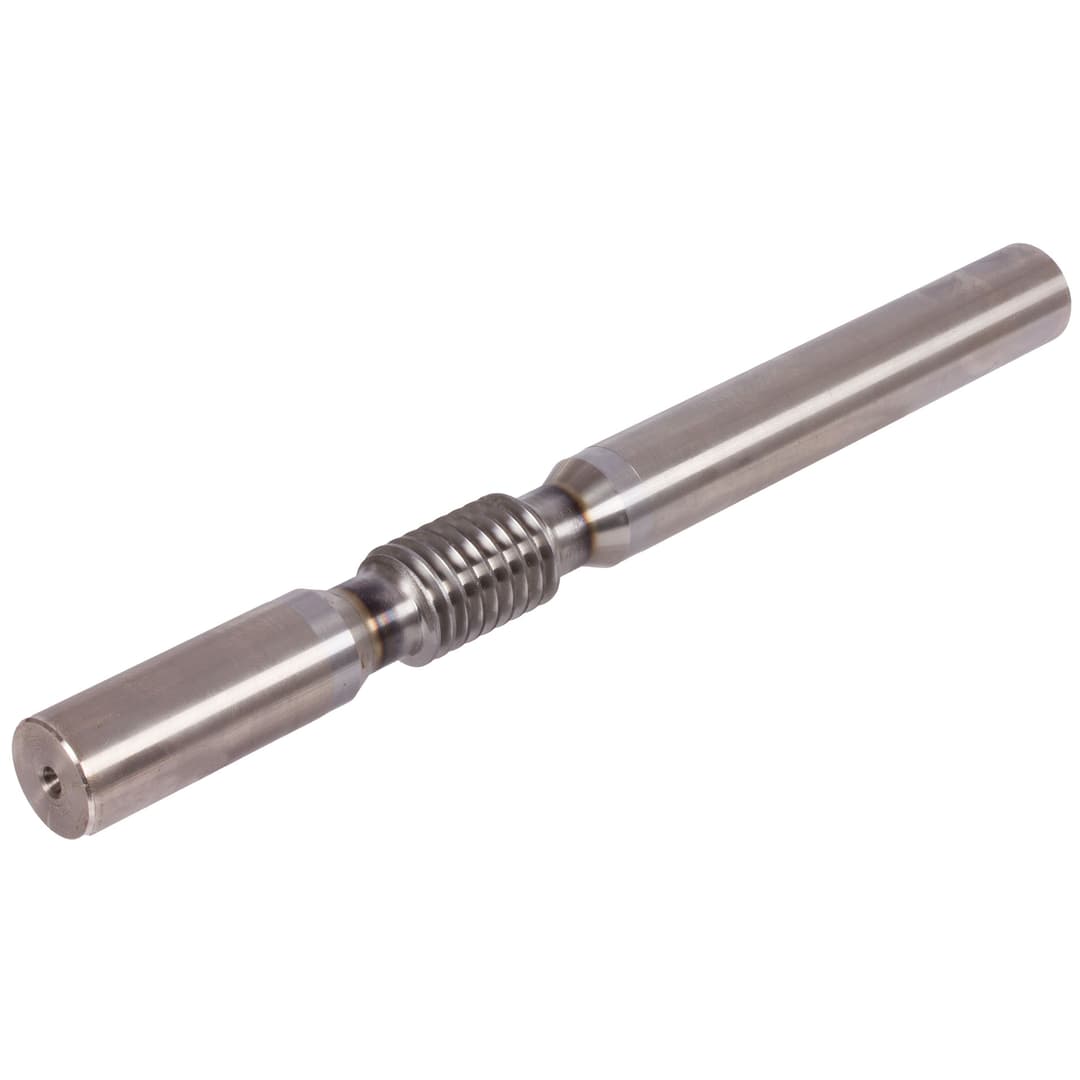

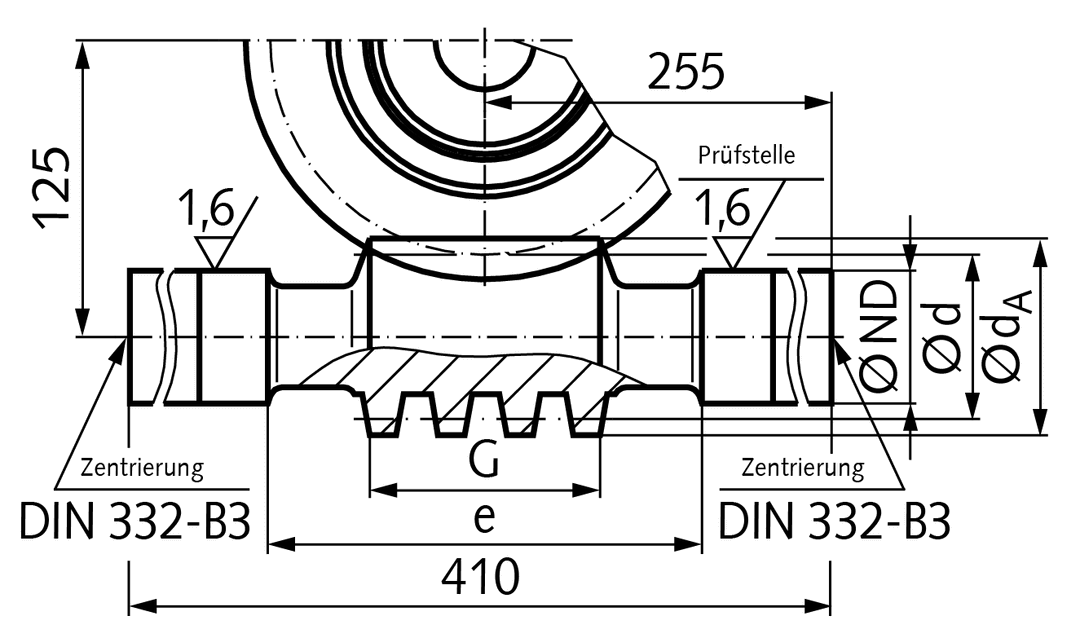

Precision worm shaft centre distance 125mm i=62 single-thread
Manufacturer part no. 33226202
$571.73≈ 495.35 €
Price summary
Listed by MÄDLER at €495.35. Delivered to France, including shipping, VAT and any customs duty, it comes to about €612.42. Prices last checked on 2026-08-07.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 56 d
Estimated landed cost
| Item | €495.35 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €102.07 |
| Total delivered | €612.42 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 6.35 kg |
Other characteristics
| Hub diameter | 50.5 mm |
| Level of efficiency | 0.68 % |
| Module | 3.15 |
| Number of threads | 1 |
| Outer diameter | 59.3 mm |
| Pitch circle diameter | 53 mm |
| Tooth length | 64 mm |
| Material | Steel (1045) |
| Ratio | 62 : 1 |
| Surface | Ground finish |
Description
Material: Steel C45 hardened. Shaft ends soft. Tooth flanks ground. Pressure angle: 20°. The worms can only be used with gear wheels having the same centre distance and the same transmission. Can be built into gear systems, no reworking required, thus short assembly times. The figures stated for the efficiency are only reference values, as besides the lead angle, also mounting, lubrication, speed and assembly have an influence on the efficiency.
