MÄDLERMÄDLER· Bevel Gears, Worm Wheels, Worms
Bevel gear made of brass Ms58 module 0.5 50 teeth i=1:1 milled
Manufacturer part no. 35023200
$47.52≈ 41.27 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €41.27 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.25 |
| Total delivered | €67.52 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

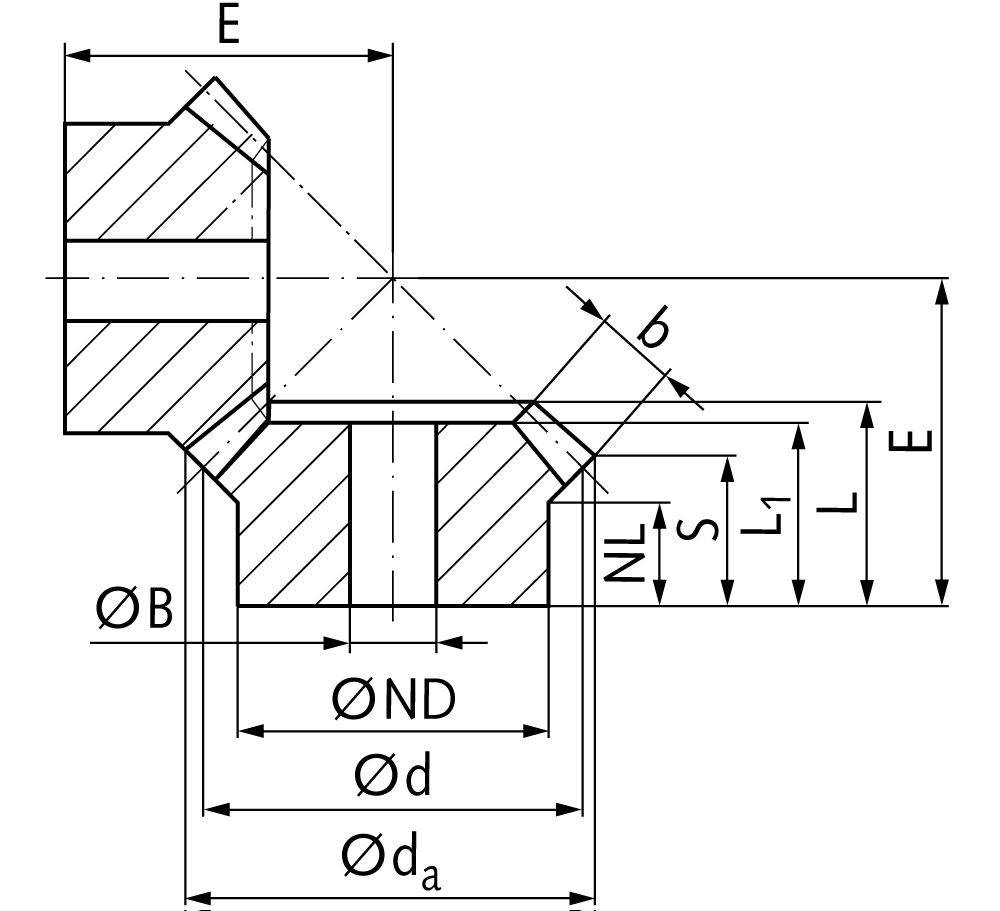

Specifications (automatically extracted)
Mechanical
| Weight | 16 g |
Other characteristics
| Bore | 4 mm |
| Max torque | 18 Ncm |
| Module | 0.5 |
| No of teeth | 50 |
| Optional counter wheel part no | 35 023 200 |
| Outer diameter | 25.7 mm |
| Tooth quality | 8 |
| Material | Brass (Ms58) |
| Ratio | 1:1 (50/50) |
| Surface | Blank |
Description
Material:Brass Ms58 (2.0401). Milled teeth. Shaft angle = 90°. The bevel gears only run as a pair at the stated ratio. Note for ordering: These gears are sold singulary, not by pair. For a pair of bevel gears, you have to order two matching gears of the same module and ratio. At ratio 1:1, you need two pieces of the same number of teeth. At ratio uneven 1:1, you need two pieces with a different number of teeth of the same ratio.
