MÄDLERMÄDLER· Bevel Gears, Worm Wheels, Worms

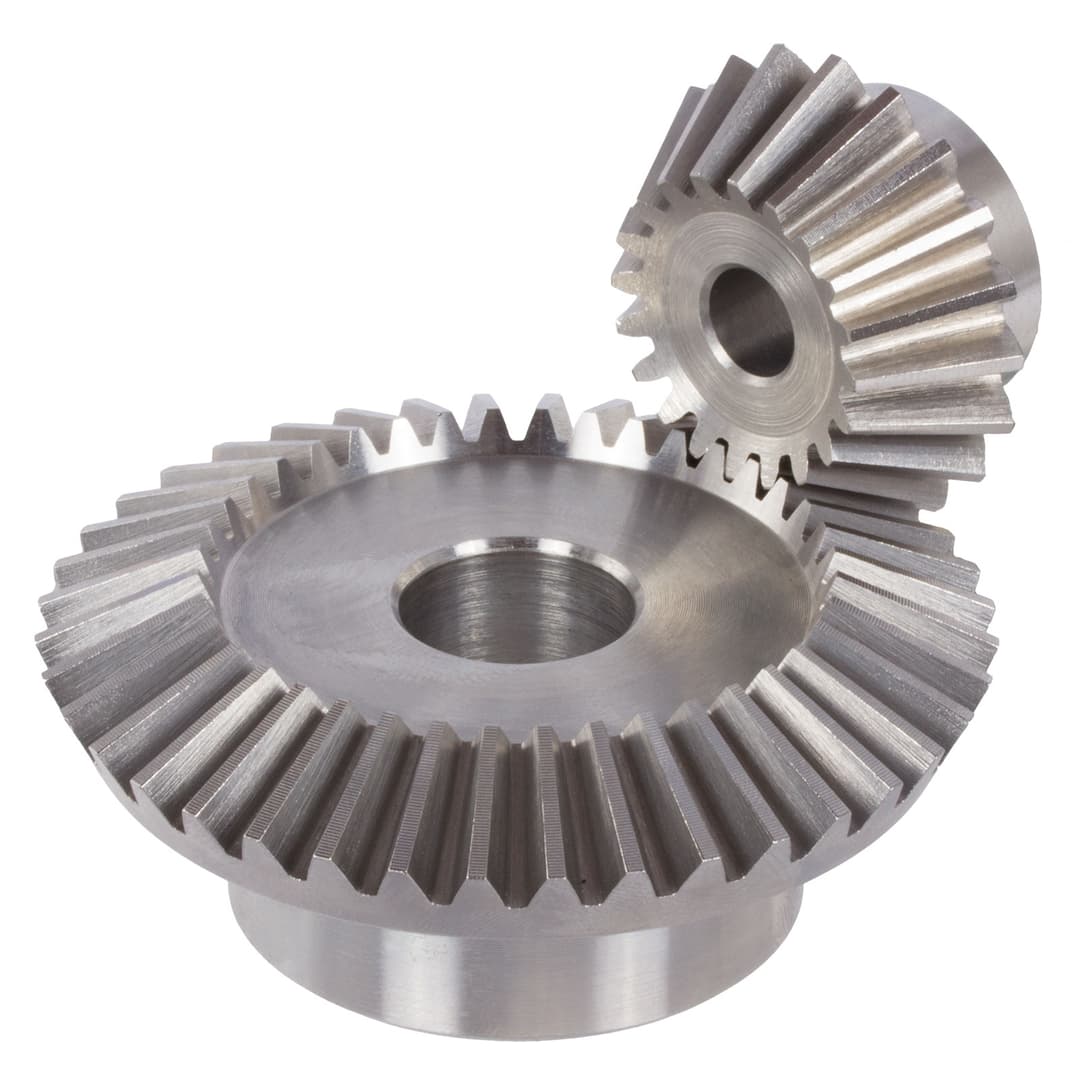

Bevel gear made of steel module 0.5 40 teeth i=2:1 milled
Manufacturer part no. 36026100
$27.72≈ 24.07 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €24.07 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.81 |
| Total delivered | €46.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 8 g |
Other characteristics
| Bore | 4 mm |
| Max torque | 0.034 Nm |
| Module | 0.5 |
| No of teeth | 40 |
| Optional counter wheel part no | 36 026 000 |
| Outer diameter | 20.3 mm |
| Tooth quality | 8 |
| Material | Steel (12L13) |
| Ratio | 2:1 (20/40) |
| Surface | Blank |
Description
Material: up to product no. 36105700: 11SMn30+SH (1.0715). From product no. 36106000: C45. Tooth quality 8 modelled on DIN 3967 (from module 2). Up to module 5 with crowned, milled teeth. From module 6 with planed teeth. Not hardened – not lapped. Shaft angle = 90º. The bevel gears only run as a pair at the stated ratio and at the same module. Note for ordering: These gears are sold singulary, not by pair. For a pair of bevel gears, you have to order two matching gears of the same module, with a different number of teeth of the same ratio.
