MÄDLERMÄDLER· Bevel Gears, Worm Wheels, Worms

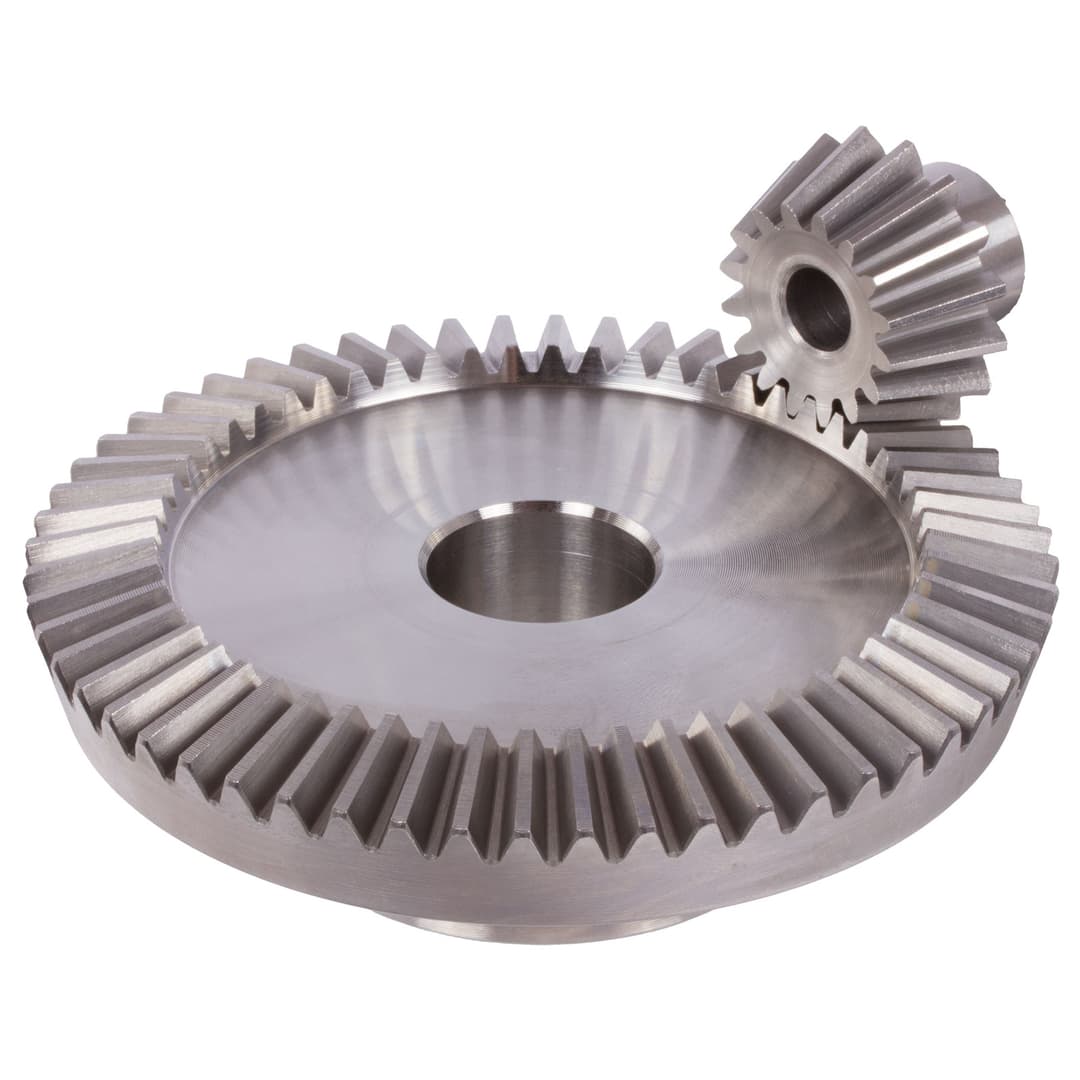

Bevel gear made of steel module 6 45 teeth i=3:1
Manufacturer part no. 36737700
$793.74≈ 689.31 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €689.31 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €140.86 |
| Total delivered | €845.17 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 13.17 kg |
Other characteristics
| Bore | 45 mm |
| Max torque | 212.1 Nm |
| Module | 6 |
| No of teeth | 45 |
| Optional counter wheel part no | 36 737 600 |
| Outer diameter | 273.8 mm |
| Tooth quality | 8 |
| Material | Steel (1045) |
| Ratio | 3:1 (15/45) |
| Surface | Blank |
Description
Material: up to module 2: 11SMn30+SH (1.0715). From module 2.5: C45. Tooth quality 8 modelled on DIN 3967 (from module 2). Up to module 5 with crowned, milled teeth. From module 6 with planed teeth. Not hardened – not lapped. Shaft angle = 90º. The bevel gears only run as a pair at the stated ratio and at the same module. Note for ordering: These gears are sold singulary, not by pair. For a pair of bevel gears, you have to order two matching gears of the same module, with a different number of teeth of the same ratio.
