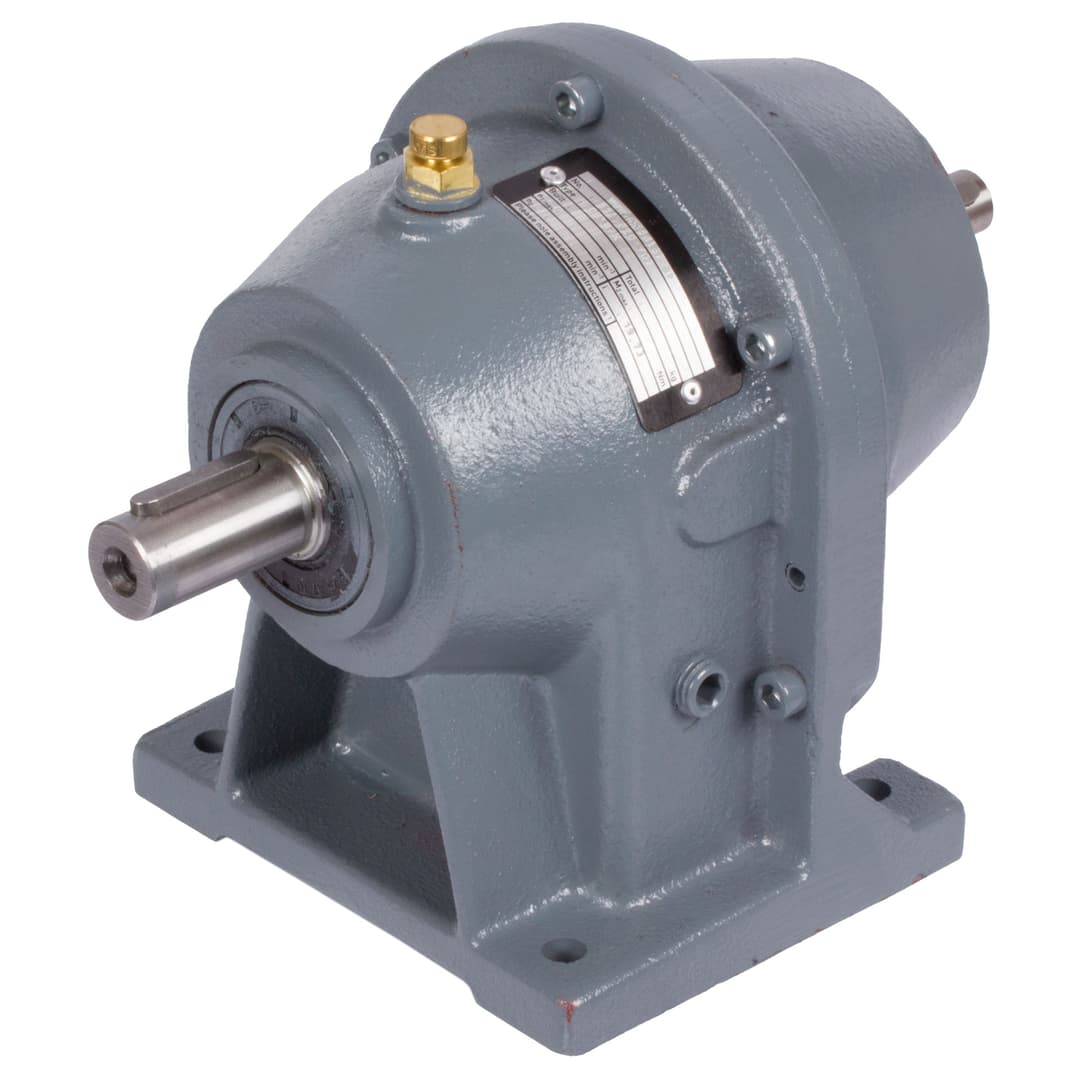

Helical gearbox BT1 size 3 i=10.56 model B3 (For operating instructions please visit the download area of our website www.maedler.de)
Manufacturer part no. 40012020
$968.24≈ 840.85 €
Price summary
Listed by MÄDLER at €840.85. Delivered to France, including shipping, VAT and any customs duty, it comes to about €1027.02. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 56 d
Estimated landed cost
| Item | €840.85 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €171.17 |
| Total delivered | €1027.02 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 13 kg |
Other characteristics
| N2 at n1 1380min min. | 131 |
| P at n1 1380 min 1 kw | 2.88 |
| T2 at fb 1 nm | 200 |
| Transmission | 10.56 |
Description
Casing: Cast iron casing with thick walls and ribbed construction, sealed against oil leaks and dust. Gears: Special steel, extremely hard wearing and case hardened. Smooth-running helical gear wheels with ground or scraped tooth profiles. Bearing: Generously dimensioned bearings as standard version (heavy-duty bearings for higher overhung or thrust loads available at extra cost) Lubrication: The gear boxes are delivered ready for work, filled with the correct level of oil or grease, which offers sufficient lubrication for about 10.000 operation hours, or for an operation period of max. 2 years, at a temperature of -30 to +80°C. Before start up, the plastic plug must be taken out of the venting screw, otherwise excess pressure will build up inside the gearbox.
