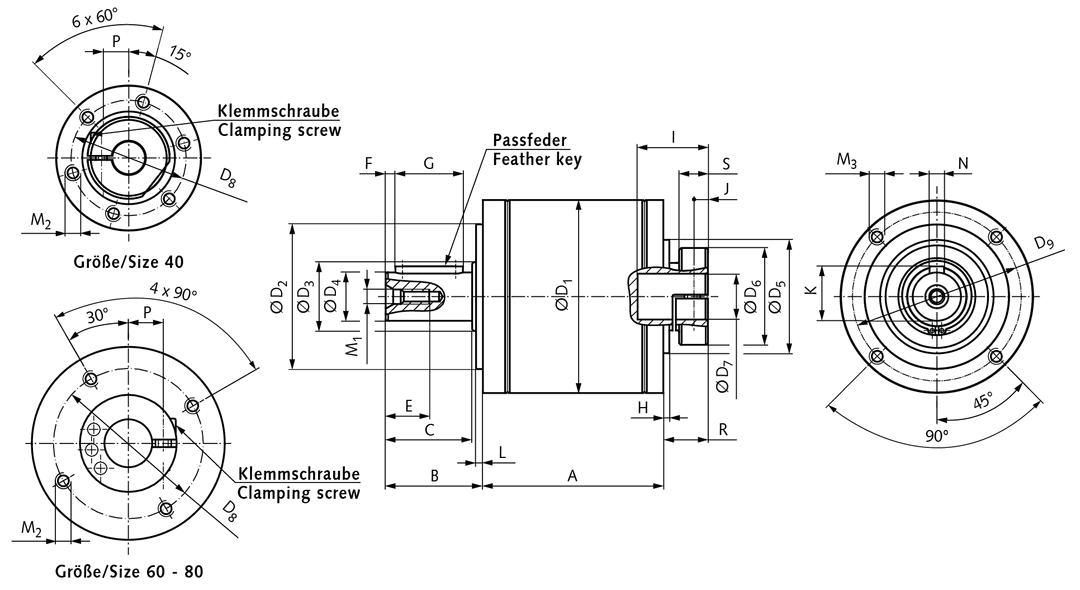

Planetary gearbox MPS size 60 ratio i=56 2-stage
Manufacturer part no. 40518056
$885.83≈ 769.28 €
Price summary
Listed by MÄDLER at €769.28. Delivered to France, including shipping, VAT and any customs duty, it comes to about €941.14. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €769.28 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €156.86 |
| Total delivered | €941.14 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2.6 kg |
Other characteristics
| Max acceleration torque at the output | 130 Nm |
| Max output torque emergency off | 175 Nm |
| Nominal input torque | 1.23 Nm |
| Number of gear stages | 2 |
| Permissible output torque | 65 Nm |
| Size | 80 |
| Torsional stiffness | 5.5 Nm/arcmin |
| Backlash | <= 9 arcmin |
| Level of efficiency | > 94 % |
| Mass moment of inertia | 0.39 kgcm2 |
| Max input speed | 6000 min-1 |
| Nominal input speed | 3500 min-1 |
| Ratio | 56 : 1 |
Description
The lightweight, low-noise and low-backlash planetary gearboxes are available in 24 ratios. They are characterized by their high power density, running smoothness and overload capacity. The 3 housing sizes 40 mm, 60 mm and 80 mm fit to many applications. • Lubrication: Fluid grease, lubricated for life. • Any mounting position possible. • Temperature range: -25 °C to +90 °C. The selection of the suitable motor depends on the application. The use of a stepper motor or servo motor is common. In principle, however, all motor types can be used. Motor adaption and reducing bush have to be ordered separately. 1) Lifetime 20,000 h at output speed 100 min -1. 2) max. 1,000 Cycles per hr. Ta max.– Share <5% of total running time. 3) max. 1,000 cycles during the gearbox service life. 4) elated to the drive shaft.
