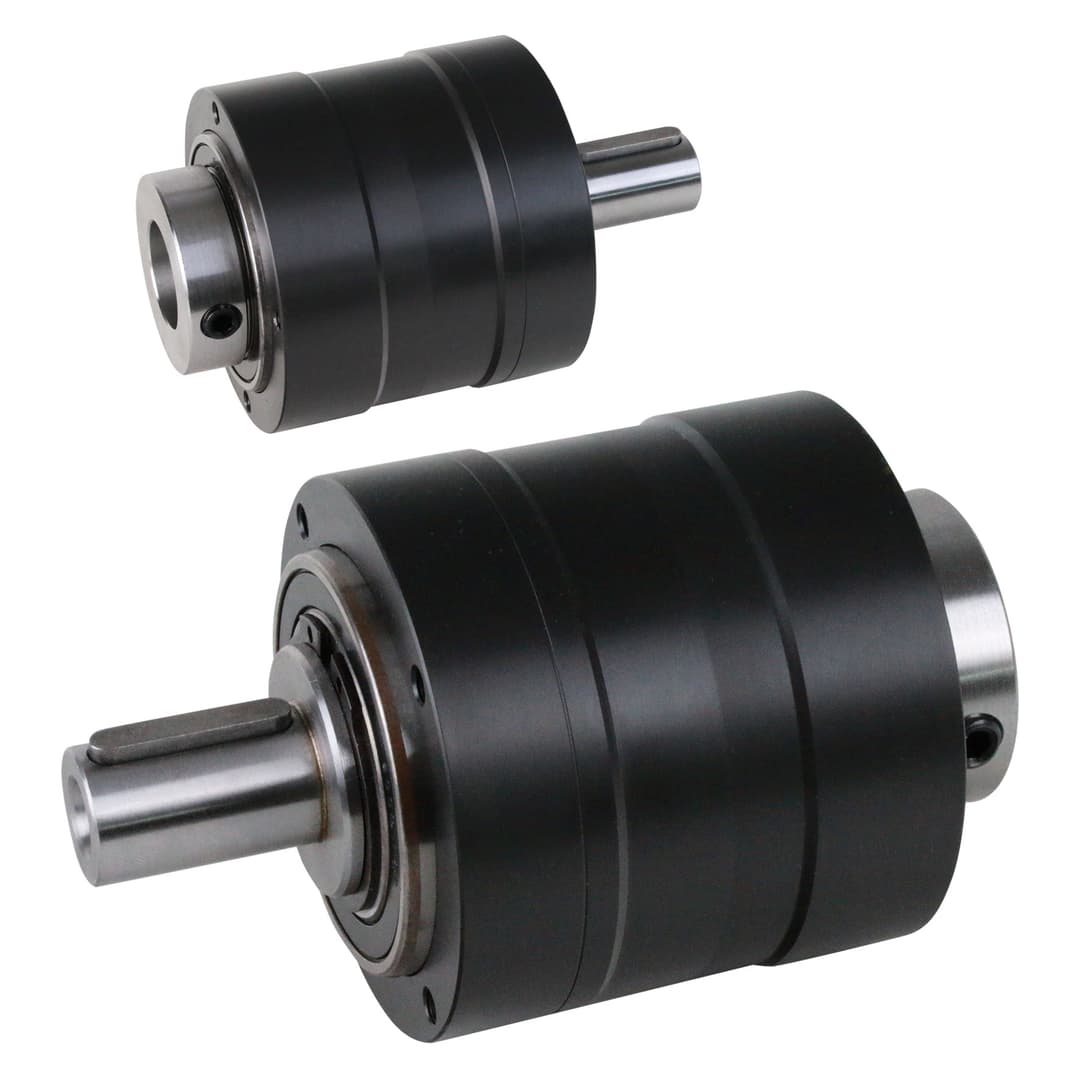

Planetary gearbox MPL size 70 ratio i=10 1-stage
Manufacturer part no. 40527010
$461.11≈ 400.44 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €400.44 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €83.09 |
| Total delivered | €498.53 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.8 kg |
Other characteristics
| Max acceleration torque at the output | 46 Nm |
| Max output torque emergency off | 69 Nm |
| Nominal input torque | 2.37 Nm |
| Number of gear stages | 1 |
| Permissible output torque | 23 Nm |
| Size | 70 |
| Torsional stiffness | 2.8 Nm/arcmin |
| Backlash | <= 8 arcmin |
| Level of efficiency | > 97 % |
| Mass moment of inertia | 0.029 kgcm2 |
| Max input speed | 6000 min-1 |
| Nominal input speed | 3700 min-1 |
| Ratio | 10 : 1 |
Description

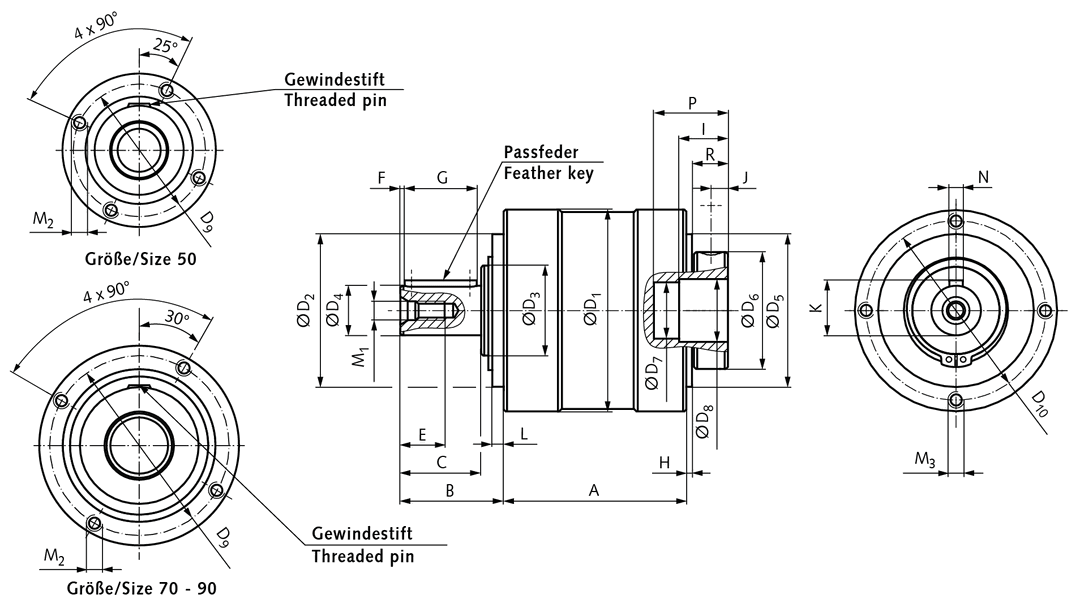

The low-backlash planetary gearboxe are available in 11 ratios. They are characterized by their robust and short design. Due to the special design, the gearboxes are suitable for high torsional stiffness and also for applications with high radial and axial forces. The gearboxes are available in 3 housing sizes 50 mm, 70 mm and 90 mm. • Lubrication: Fluid grease, lubricated for life. • Any mounting position possible. • Temperature range: -25 °C to +90 °C. The selection of the suitable motor depends on the application. The use of a stepper motor or servo motor is common. In principle, however, all motor types can be used. Motor adaption and reducing bush have to be ordered separately. 1) Lifetime 20,000 h at output speed 100 min -1. 2) max. 1,000 Cycles per hr. Ta max.– Share <5% of total running time. 3) max. 1,000 cycles during the gearbox service life. 4) elated to the drive shaft.
