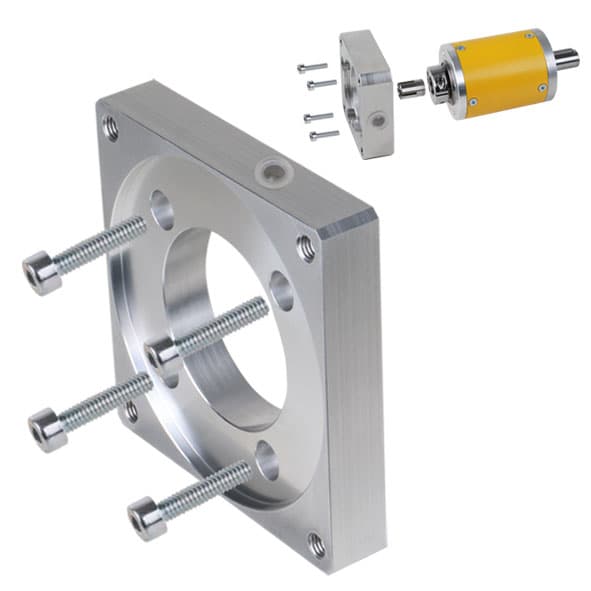

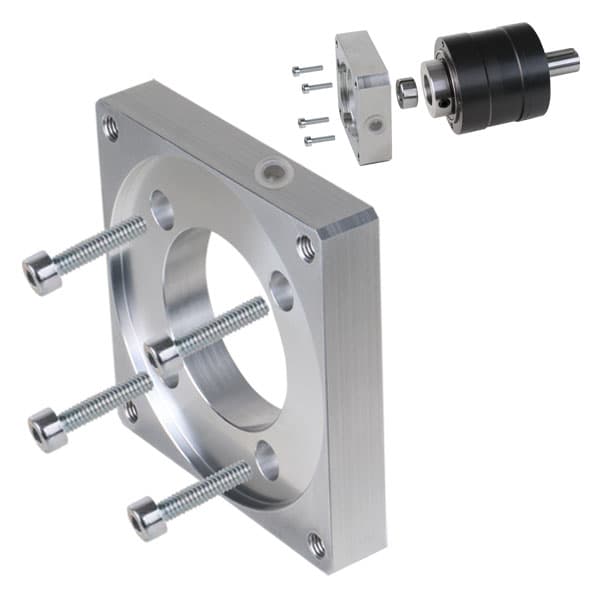

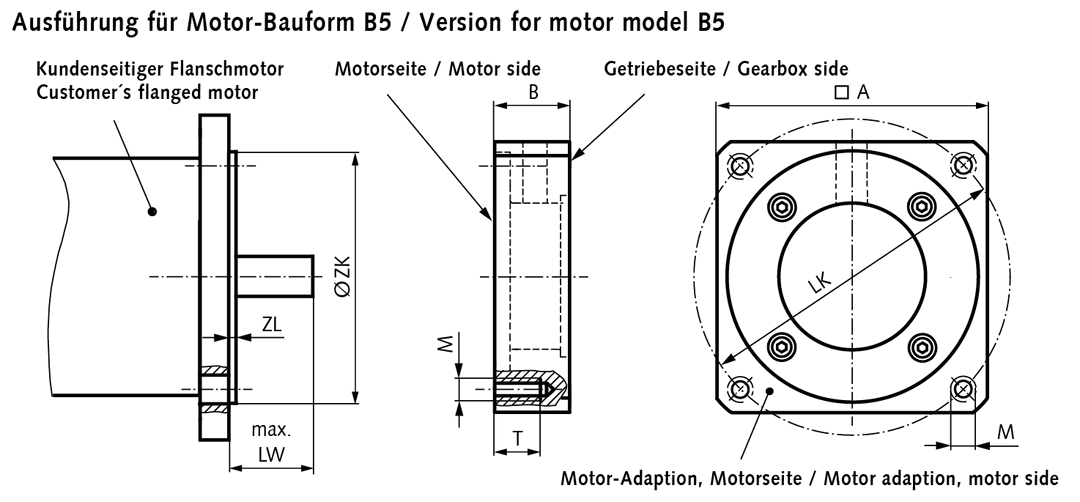

Motor adaption MPL size 90 outer dim. 90 x 90 x 27mm mounting hole circle-Ø 90mm M6 centering-Ø 70mm
Manufacturer part no. 40549070
$118.91≈ 103.27 €
Price summary
Listed by MÄDLER at €103.27. Delivered to France, including shipping, VAT and any customs duty, it comes to about €141.92. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €103.27 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €23.65 |
| Total delivered | €141.92 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 340 g |
| Dimensions | 90x90x27mm |
Other characteristics
| Suitable for | MPL 90 |
Description
The four fastening screws for mounting the flange to the gearbox are included in the scope of delivery. Other flange versions, such as design B14 (2-piece) and also for IEC motors, are available on request. * With the product no. 405 470 40 and 405 490 60, the motor adaptation is round. ** With the product no. 405 470 80 the threadhole is a through-hole.
