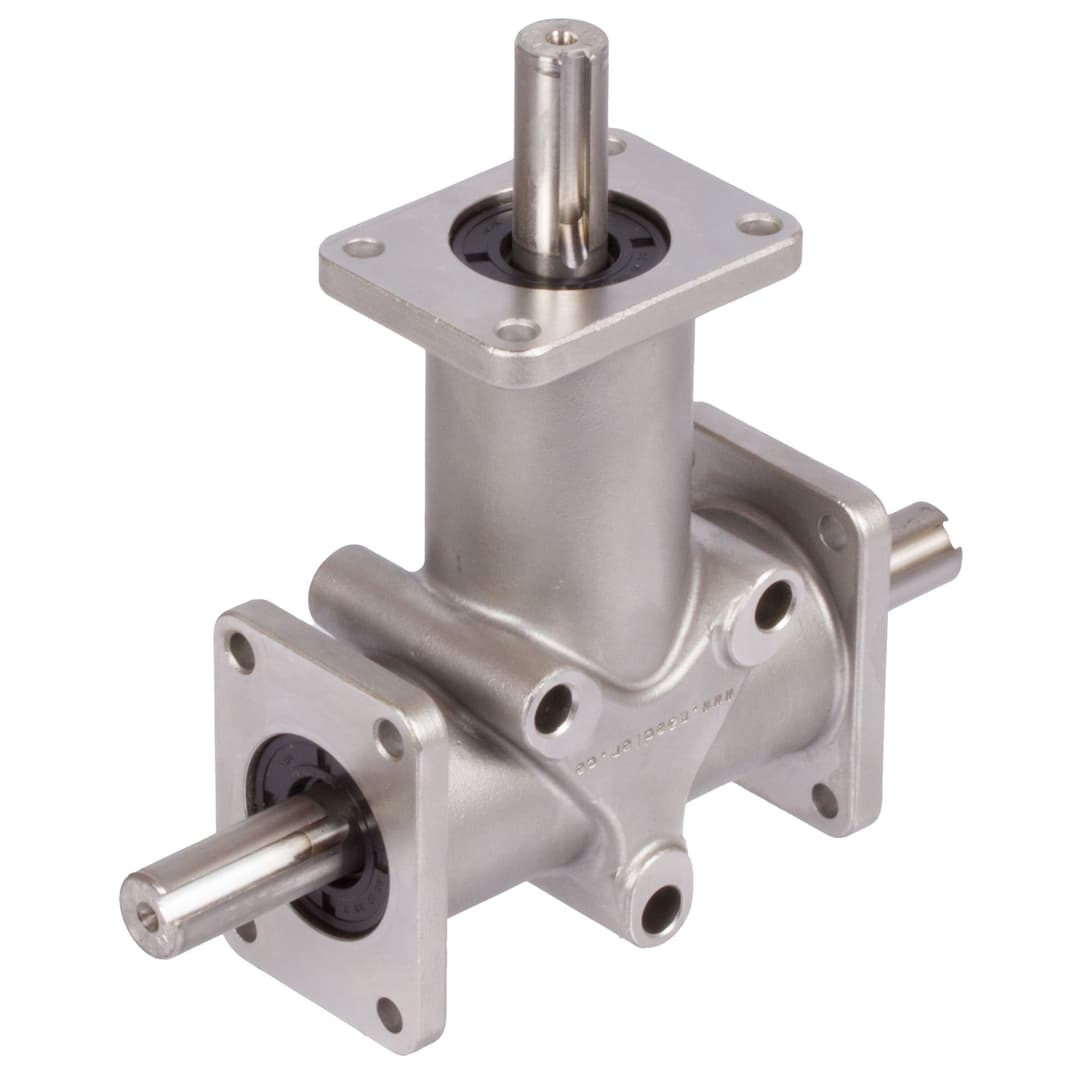

Bevel gearbox DZR size 1 version B i=2:1 housing and shafts stainless steel
Manufacturer part no. 41092002
$1061.59≈ 919.76 €
Price summary
Listed by MÄDLER at €919.76. Delivered to France, including shipping, VAT and any customs duty, it comes to about €1121.71. Prices last checked on 2026-08-07.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 56 d
Estimated landed cost
| Item | €919.76 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €186.95 |
| Total delivered | €1121.71 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 16.315 kg·cm |
| Weight | 492 g |
Other characteristics
| Shaftdiameter | 8 mm |
| Size | 1 |
| Ratio | 2 : 1 |
Description
General data: 4 sizes. Ratio either 1 : 1 or 2 : 1. Any mounting position possible. Input shaft / output shaft, speed:At both types and both ratios, the input can be at shaft A as well as at shaft B. At ratio 1:1 the maximum speed is 1400 rpm. Ratio 2:1 can be used for gearing down and also for gearing up. Gearing down: Input at shaft A with max. speed 1400 rpm (output speed max. 700 rpm). Gearing up: Input at shaft B with max. speed 750 rpm (output speed max. 1500 rpm). Housing: Stainless steel 1.4401 (V4A / AISI 316). Thick-walled, one-piece housing, fully oil-tight and dust-proof. Gearing: Spiral teeth, hardened. Shafts/bearing system: Stainless steel 1.4401 (V4A / AISI 316), ground and mounted on ball bearings.From size 2 with keyways. Lubrication/maintenance: Lubricated for life, viscosity ISO VG 150.Gearboxes are maintenance free. Angular backlash: 15 to 30 angular minutes. Permiss. operating temperature: -18°C to +80°C. * Permiss. radial force for FA=0. ** Permiss. axial force for FR=0.
