MÄDLERMÄDLER· Gear Boxes and Geared Motors

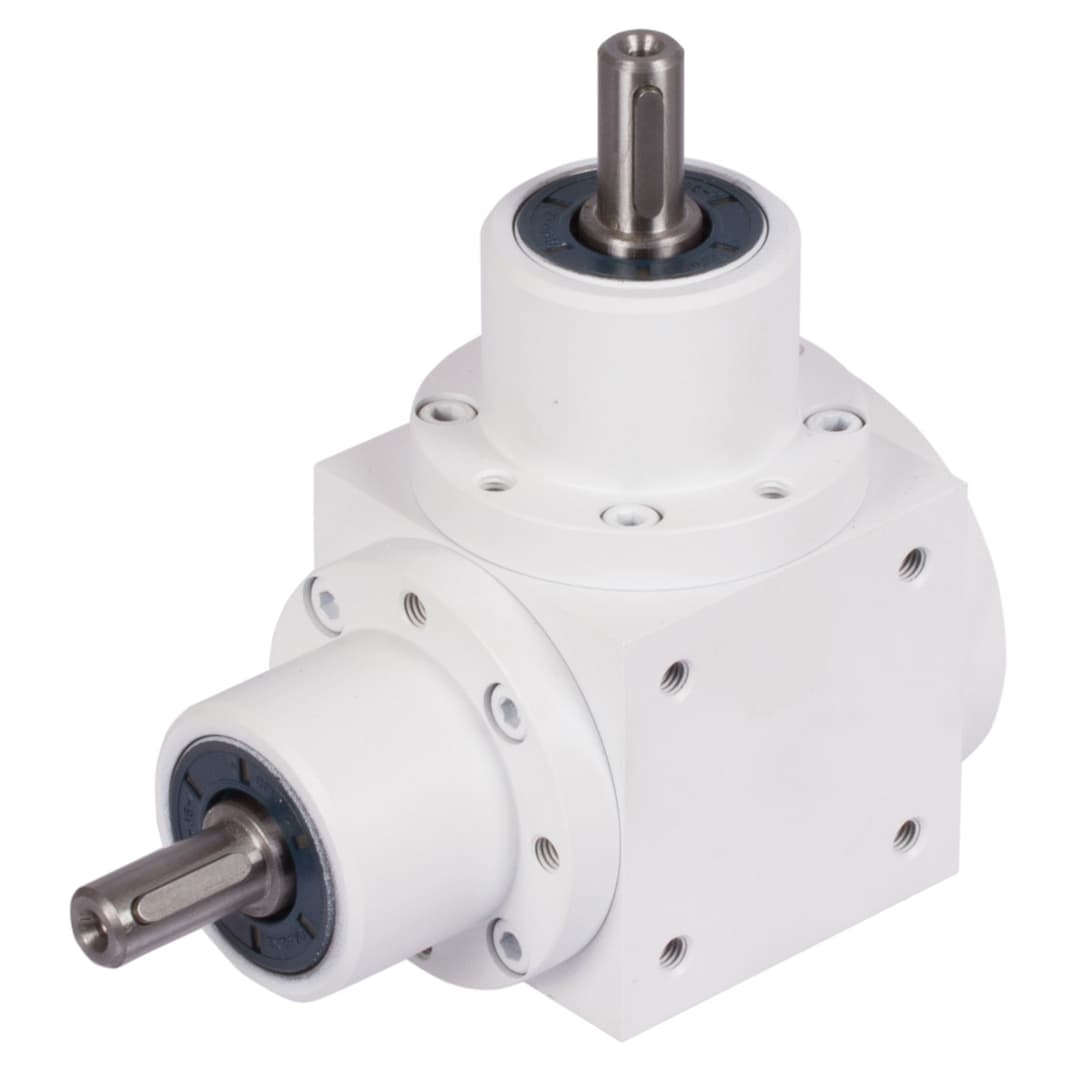

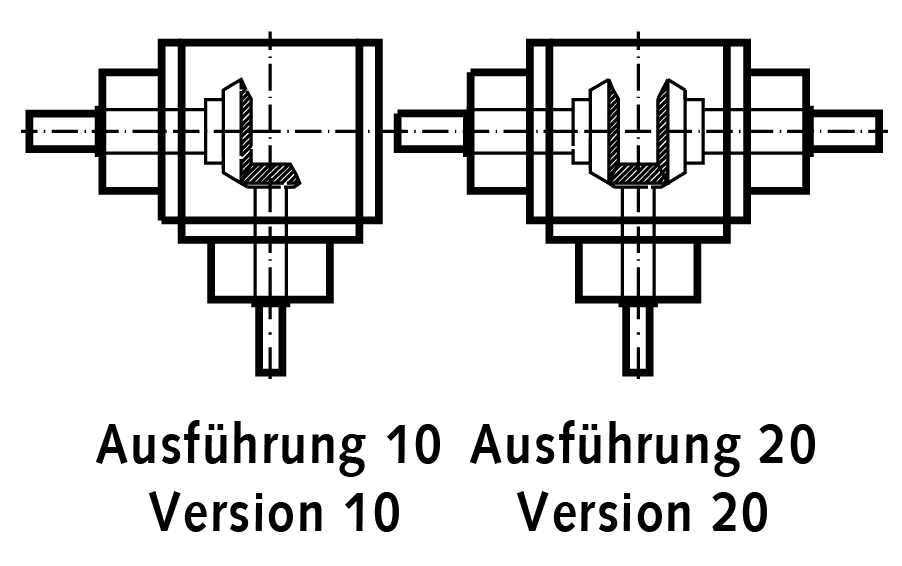

Bevel gearbox KU/I model K size 2 version 10 i=1:1 (For operating instructions please visit the download area of our website www.maedler.de)
Manufacturer part no. 41200700
$1282.56≈ 1113.82 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €1113.82 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €225.76 |
| Total delivered | €1354.58 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 12 kg |
Other characteristics
| Input shaft diameter | 25 mm |
| Max input power at 1 000 min 1 | 10.14 kW |
| Max input power at 1 500 min 1 | 13.56 kW |
| Max input power at 250 min 1 | 3.39 kW |
| Max input power at 3 000 min 1 | 21.82 kW |
| Max input power at 50 min 1 | 0.72 kW |
| Max input power at 500 min 1 | 6.34 kW |
| Max input power at 750 min 1 | 8.51 kW |
| Max torque at 1 000 min 1 | 92 Nm |
| Max torque at 1 500 min 1 | 82 Nm |
| Max torque at 250 min 1 | 123 Nm |
| Max torque at 3 000 min 1 | 66 Nm |
Description
General data: 3 Designs, 6 standard version, and many further variations available as multi-shaft gearboxes, please enquire. Also available in corrosion-proof and NO-TOX version for the food processing and pharmaceutic industry. Housing: Thick-walled grey cast iron, fully sealed against oil leaks and protected against dust. Due to the cube shape, all 6 sides of the gear box can be used as mounting surfaces. The diameters l1 and l2 are provided for use as alignment studs. Gearing: Hardened bevel gears, lapped in pairs Special transmission ratios available on request. Bearing System: Generously dimensioned roller bearings, rein- forced bearings on request. Lubrication: The gearboxes are fully enclosed, lubricated for life and maintenance free. On request, the gearboxes can also be supplied with oil change lubrication or NO-TOX lubrication for the food industry. If the gearbox is used at higher speeds (see table) venting must be provided. For this purpose, please state the mounting position (downward-facing side) and operating time. Input on side A or side C.
