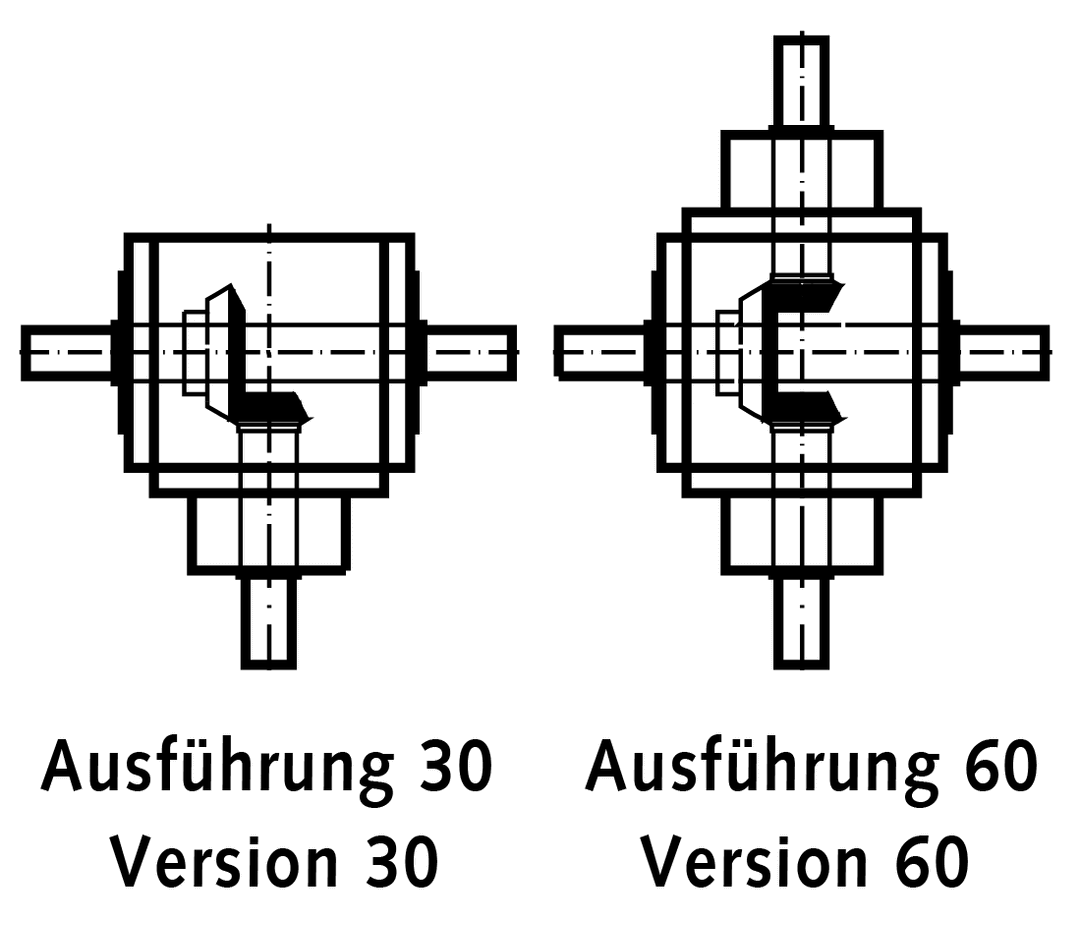

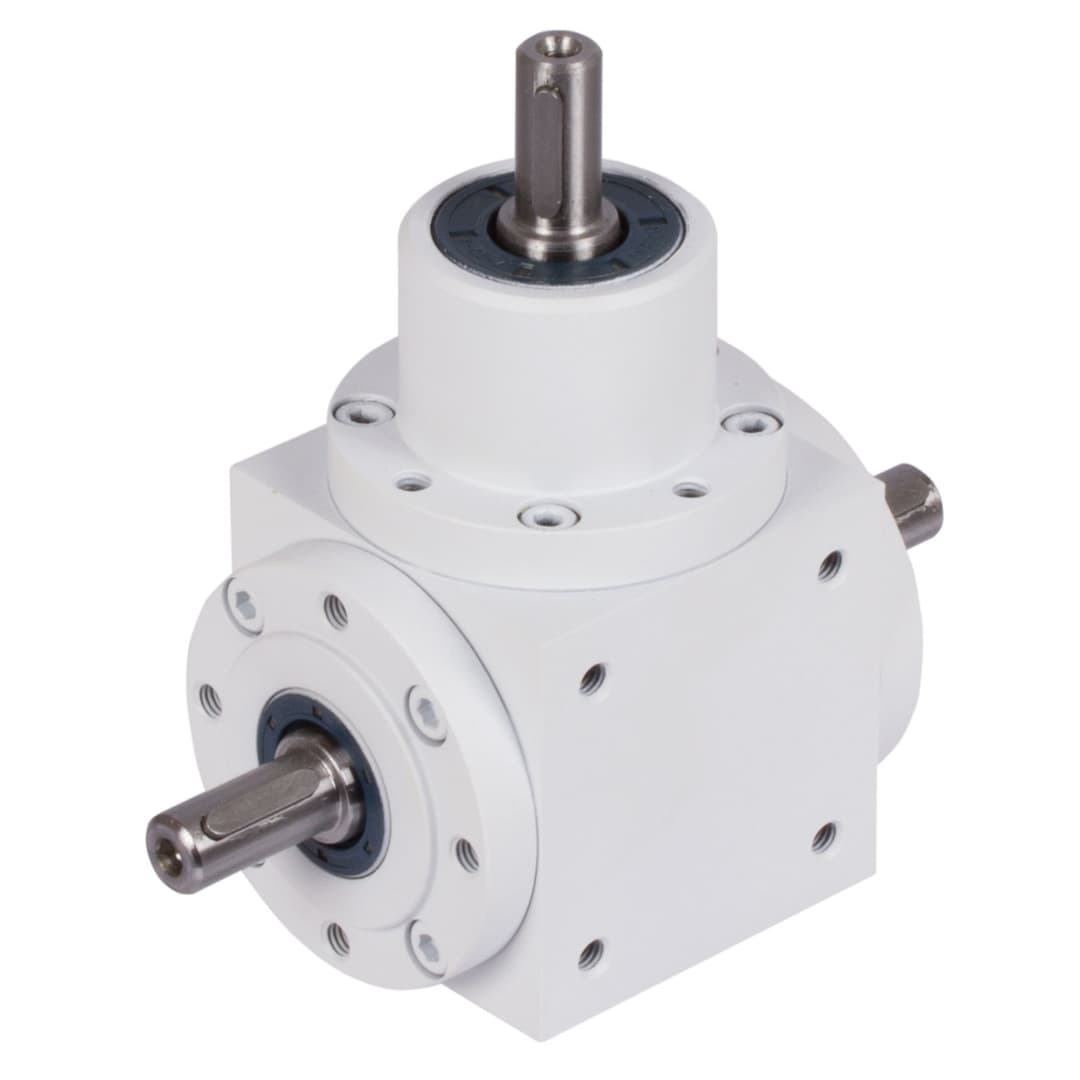

Bevel gearbox KU/I model L size 25 version 60 i=2:1 (For operating instructions please visit the download area of our website www.maedler.de)
Manufacturer part no. 41204102
$2552.46≈ 2216.64 €
Price summary
Listed by MÄDLER at €2216.64. Delivered to France, including shipping, VAT and any customs duty, it comes to about €2677.97. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 56 d
Estimated landed cost
| Item | €2216.64 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €446.33 |
| Total delivered | €2677.97 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 24 kg |
Other characteristics
| Input shaft diameter | 35 mm |
| Max input power at 1 000 min 1 | 14.88 kW |
| Max input power at 1 500 min 1 | 20.25 kW |
| Max input power at 250 min 1 | 4.41 kW |
| Max input power at 3 000 min 1 | 28.11 kW |
| Max input power at 50 min 1 | 0.98 kW |
| Max input power at 500 min 1 | 8.27 kW |
| Max input power at 750 min 1 | 11.57 kW |
| Max torque at 1 500 min 1 | 170 Nm |
| Max torque at 125 min 1 | 320 Nm |
| Max torque at 25 min 1 | 355 Nm |
| Max torque at 250 min 1 | 300 Nm |
Description
General data: 3 Designs, 6 standard version, and many further variations available as multi-shaft gearboxes, please enquire. Also available in corrosion-proof and NO-TOX version for the food processing and pharmaceutic industry. Housing: Thick-walled grey cast iron, fully sealed against oil leaks and protected against dust. Due to the cube shape, all 6 sides of the gear box can be used as mounting surfaces. The diameters l1 and l2 are provided for use as alignment studs. Gearing: Hardened bevel gears, lapped in pairs Special transmission ratios available on request. Bearing System: Generously dimensioned roller bearings, rein- forced bearings on request. Lubrication: The gearboxes are fully enclosed, lubricated for life and maintenance free. On request, the gearboxes can also be supplied with oil change lubrication or NO-TOX lubrication for the food industry. If the gearbox is used at higher speeds (see table) venting must be provided. For this purpose, please state the mounting position (downward-facing side) and operating time. Model L: Straight-through shaft, slowly turning.
