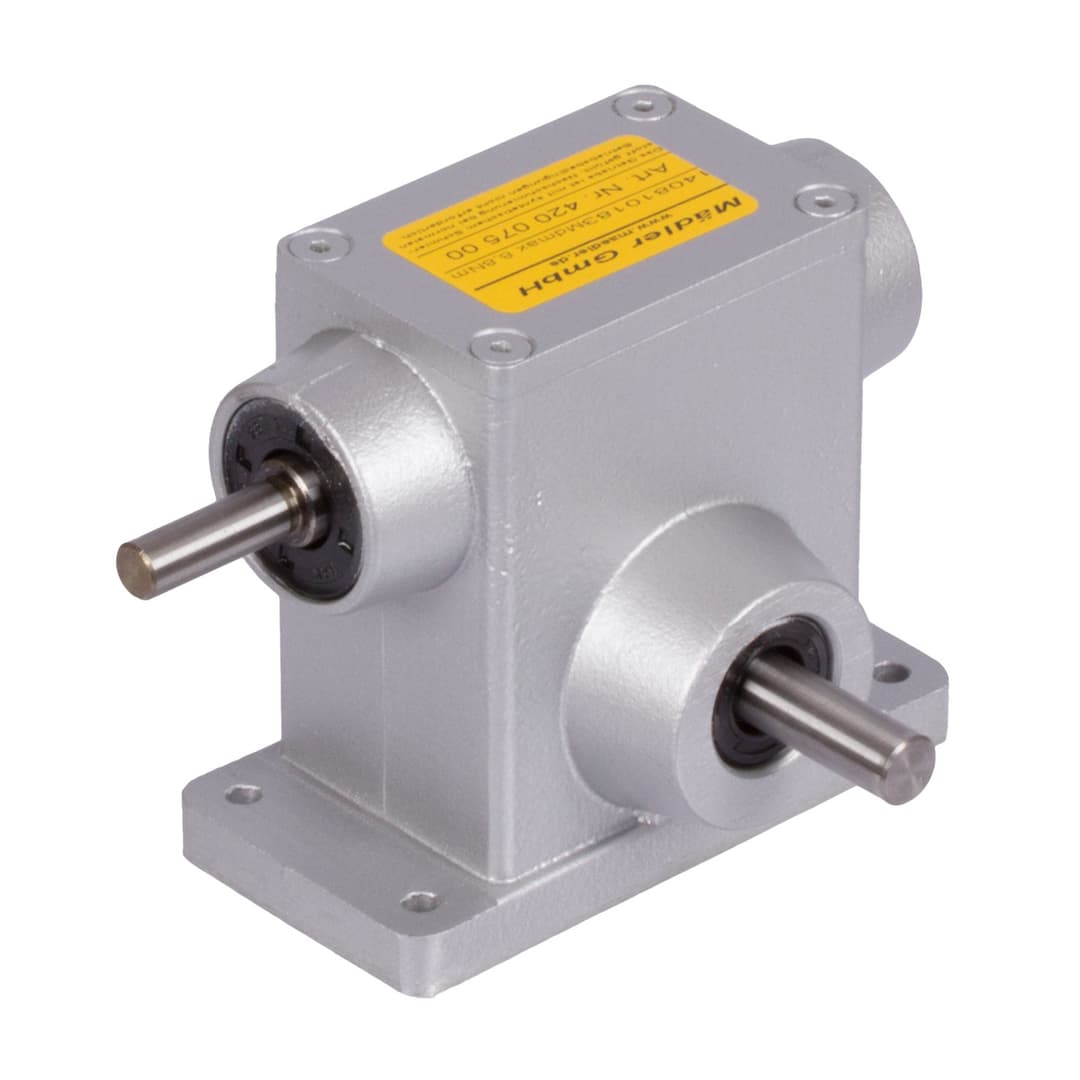

Worm gear unit G/II version A centre distance 31mm i=7:1 (For operating instructions please visit the download area of our website www.maedler.de)
Manufacturer part no. 42000700
$271.76≈ 236.01 €
Price summary
Listed by MÄDLER at €236.01. Delivered to France, including shipping, VAT and any customs duty, it comes to about €301.21. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €236.01 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €50.20 |
| Total delivered | €301.21 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.05 kg |
Other characteristics
| Center distance | 31 mm |
| Max torque | 10 Nm |
| Ratio | 7 : 1 |
Description

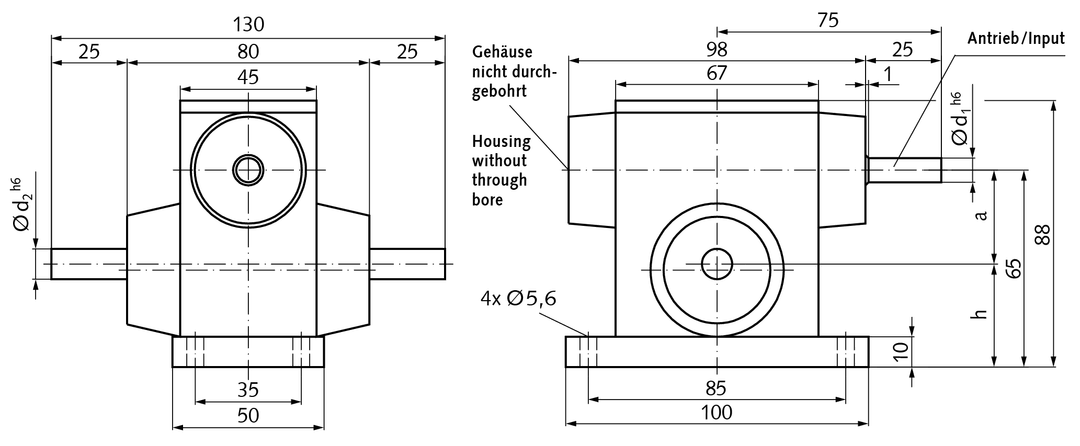

Housing: Aluminium permanent-mould casting, fully sealed against oil leaks and protected against dust, can be mounted in any position. Gear set: Worms hardened and ground, worm gears made from special bronze. Bearing System: Input and output shaft with roller bearing. Lubrication: As a special gearbox oil has been used, in most applications no relubrication or change is required. Input shaft is the smaller shaft d1. The permiss. output torque refers to shaft d2. Load Bearing Capacity of the Output Shaft Radial = 100 N, Axial = 60 N.
