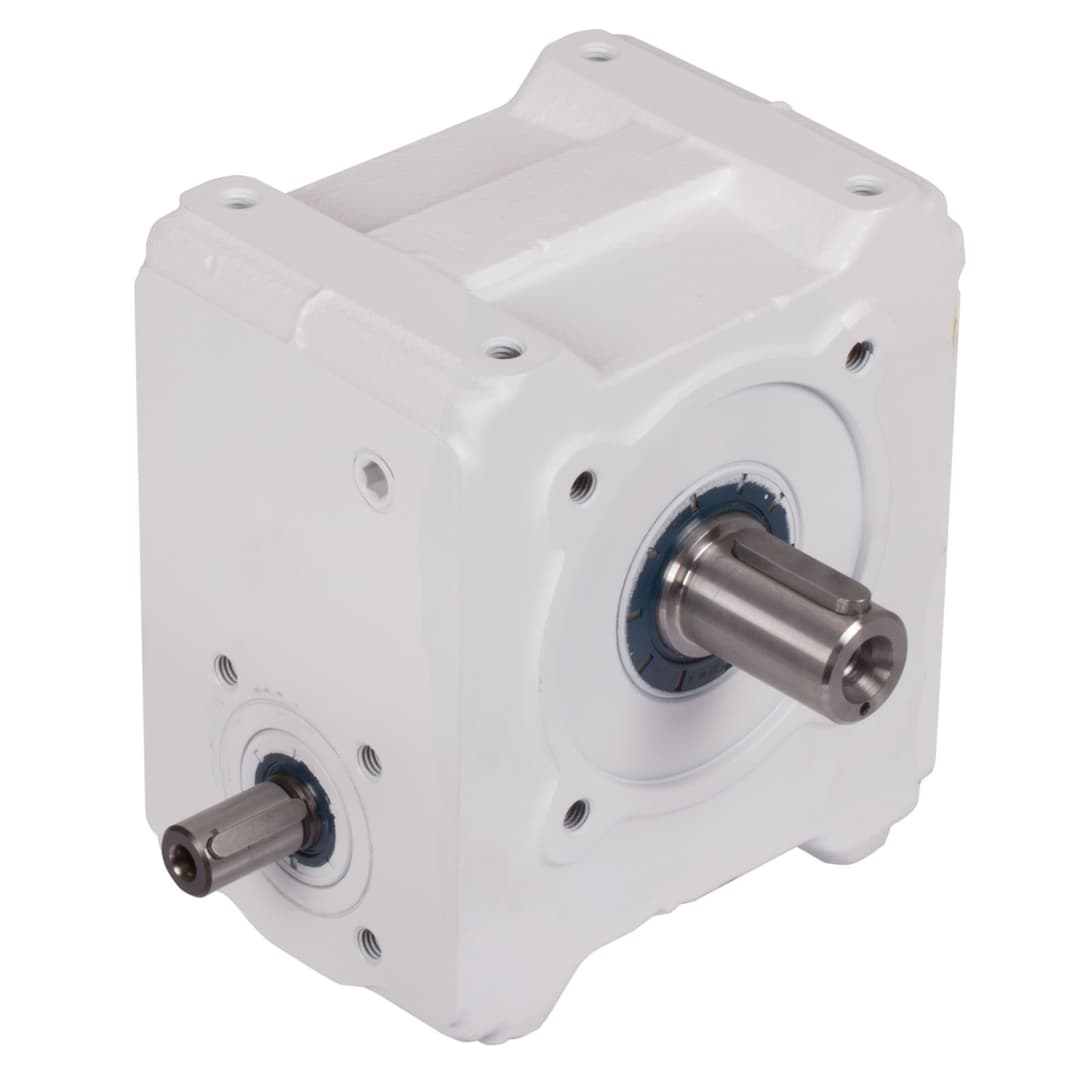

Worm gear unit ZM/I version A size 40 i=9.75:1 output flange side 5 (For operating instructions please visit the download area of our website www.maedler.de)
Manufacturer part no. 42100104
$937.18≈ 813.88 €
Price summary
Listed by MÄDLER at €813.88. Delivered to France, including shipping, VAT and any customs duty, it comes to about €994.66. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 56 d
Estimated landed cost
| Item | €813.88 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €165.78 |
| Total delivered | €994.66 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Level of efficiency at 1 500 min 1 | 0.9 eta |
| Level of efficiency at 10 min 1 | 0.82 eta |
| Max input power at 1 500 min 1 | 0.77 kW |
| Max input power at 10 min 1 | 0.01 kW |
| Max torque at 1 500 min 1 | 43 Nm |
| Max torque at 10 min 1 | 70 Nm |
| Ratio | 9.75 : 1 |
| Ratio actual | 39/4 |
Description
General data: Universal heavy-duty gearboxes. Housing: High-quality grey cast iron, all sides machined and with mounting holes on 4 sides. Gearing: 13 ratios from 5 to 82 : 1; worm shaft hardened and ground. Worm gear made from special centrifugally cast bronze. Efficiency factor: The efficiency factors stated in the selection tables are guideline values for properly run-in and lubricated gearboxes at operating temperature with nominal load and driving worm shaft. Proper running in is a crucial factor influencing the lifetime of the gearbox. The starting efficiency factor is, as the operating efficiency factor), depending on the lead angle. Self-locking: Self-locking only occurs in worm gear units, when the unit cannot be driven from the output side. Worms with 4 and 6 threads sometimes permit transmission ratios for gearing up (i = 5 : 1 to 13.3 : 1). If a gearbox must be implicitly self-locking, or must implicitly not be self-locking, we urge you to contact us. Only ratio 72 : 1 is generally self-locking. Product No. 42100126 is optimized for manual operation.Bearing system: All gearbox shafts with generously dimensioned roller bearings. Lubrication: The gearboxes are lubricated for life using synthetic oil. Under normal operating conditions, no maintenance is required. The housing should be checked for leakages at an interval of approx. 2 years. Ventilation: Size (centre distance) 40 is supplied without ventilation. With the other gearboxes, the sealing plug has to be exchanged with the separately packed venting filter.
