MÄDLERMÄDLER· Motors & actuators
Manufacturer part no. 42109402
Listed by MÄDLER at €89.60. Delivered to France, including shipping, VAT and any customs duty, it comes to about €125.52. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €89.60 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €20.92 |
| Total delivered | €125.52 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Dimensions | 11x23mm |
| Pitch circle diameter | 75 mm |
| Size | 40 |
| Coupling size | GS 19 |
| Material | Aluminum |
| Surface | Blank |

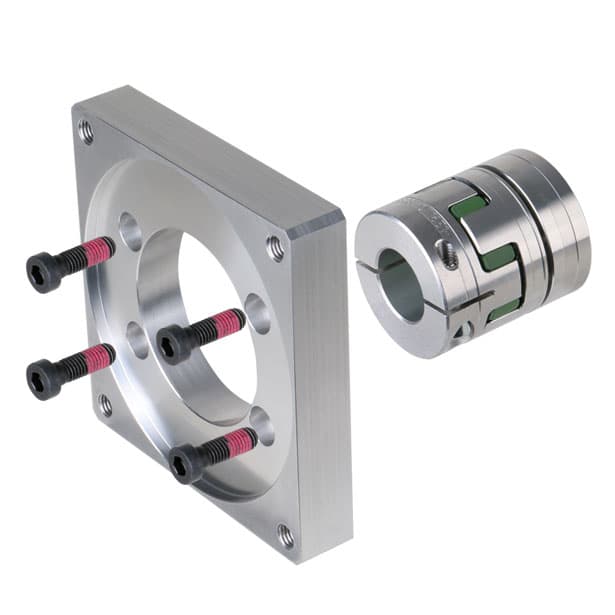

Material: Aluminium. Coupling spider from polyurethane. Mounting flange and backlash-free compensating coupling in clamp style (without keyway) with Shore hardness 64°D for mounting a motor to the servo worm gearbox ZM/S. A selection of flanges and ready-to-install couplings for various motor sizes and shaft diameters is listed for each gearbox size. The four fastening screws for mounting the flange to the gearbox are included in the scope of delivery. Other dimensions on request. D = Diameter motor shaft. L = Length of the motor shaft. The motor adaption has to be ordered seperately, additional to the gear box unit.
