MÄDLERMÄDLER· Gear Boxes and Geared Motors

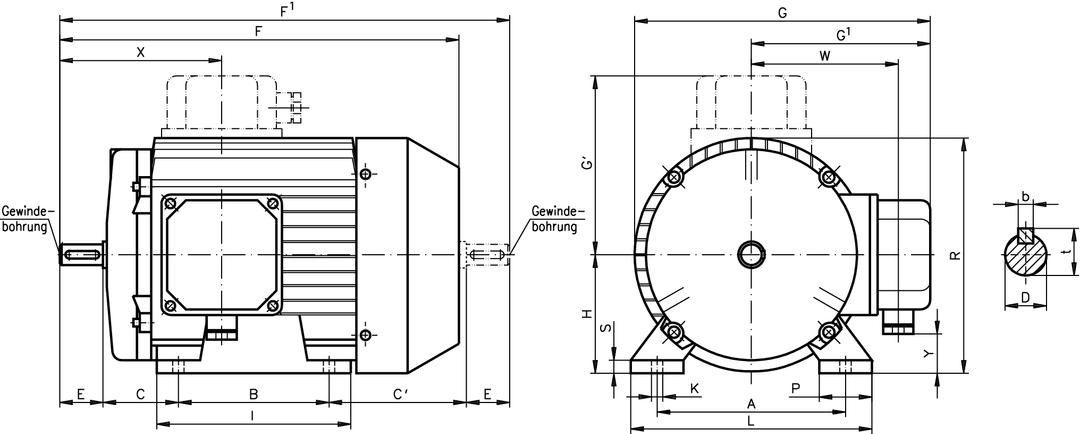

Standard three phase motor SM/I 230/400V 50Hz 0.75kW ca. 2890 rpm size 80 model B3 efficiency class IE3 (For operating instructions please visit the download area of our website www.maedler.de)
Manufacturer part no. 43000700
$438.09≈ 380.45 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €380.45 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €79.09 |
| Total delivered | €474.54 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Power | 750 W |
| Voltage | 400 V |
Mechanical
| Speed | 2 890 rpm |
| Weight | 8.4 kg |
Other characteristics
| Current at 400v | 1.66 A |
| Level of efficiency | 81 % |
| Max torque | 3.2 Nm |
| Nominal torque | 2.51 Nm |
| Size | 80 |
| Starting current | 7.4 |
| Starting torque | 3.1 Nm |
| Mass moment of inertia | 0.00097 kgm2 |
| Power factor | 0.81 cos Phi |
| Speed approx | 2890 min-1 |
Description
Three phase 230/400V, 50 Hz. Protection class IP 55. Insulation class F. With cage rotor. Surface cooled. Up to 0,55 kW in efficiency class IE2. From 0.75 kW in efficiency class IE3. The rated output stated below refers to continuous duty, an operating frequency of 50 Hz, a maximum ambient temperature of 40°C and an altitude 1000 m above sea level. Special versions on request: With non-standard voltage and frequency, dual speed, with electromagnetical DC spring-tension disc brake; AC capacitor motor 230 Volt.
