MÄDLERMÄDLER· Gear Boxes and Geared Motors

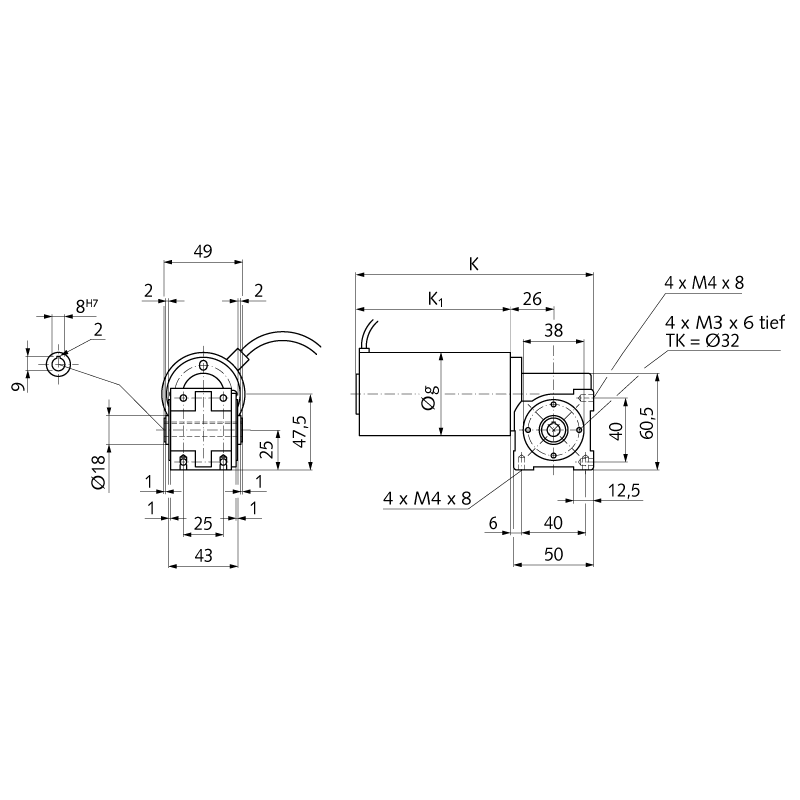

Small worm geared motor SG-H with permament magnet DC motor 24V 28W n2=44/min i=68:1 with hollow shaft
Manufacturer part no. 43049001
$424.53≈ 368.68 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €368.68 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €76.74 |
| Total delivered | €460.42 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 24 V |
Mechanical
| Weight | 1 kg |
Other characteristics
| Current consumption | 1.9 A |
| Max permanent torque effective dauerdrehmoment | 2.1 Nm |
| Max torque | 4.1 Nm |
| Output | 28 W |
| Output speed | 44 min-1 |
| Ratio | 68:1 |
Description
Housing: Aluminium, sealed against lubricant leaks and protected against dust, can be mounted in any position. Output shaft: Hollow shaft. Teeth: Worm gear made from special bronze, worm made from steel, hardened and ground. Bearing: Motor and gearbox with roller bearing. Lubrication: Maintenance free grease lubrication. Motor: Permament magnet DC Motor 24 V. Nominal motor speed 3,000 min-1, with relatively constant speed characteristics. Free lead ends. Sense of rotation can be changed by swapping leads over. Protection class IP 40. Insulation class B. Operating mode S1.
