Flange plate for worm gear screw jack NPT and NPK version A and B size 1 outer Ø 65mm M12
Manufacturer part no. 47500115
$46.12≈ 40.05 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €40.05 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.01 |
| Total delivered | €66.06 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 200 g |
Other characteristics

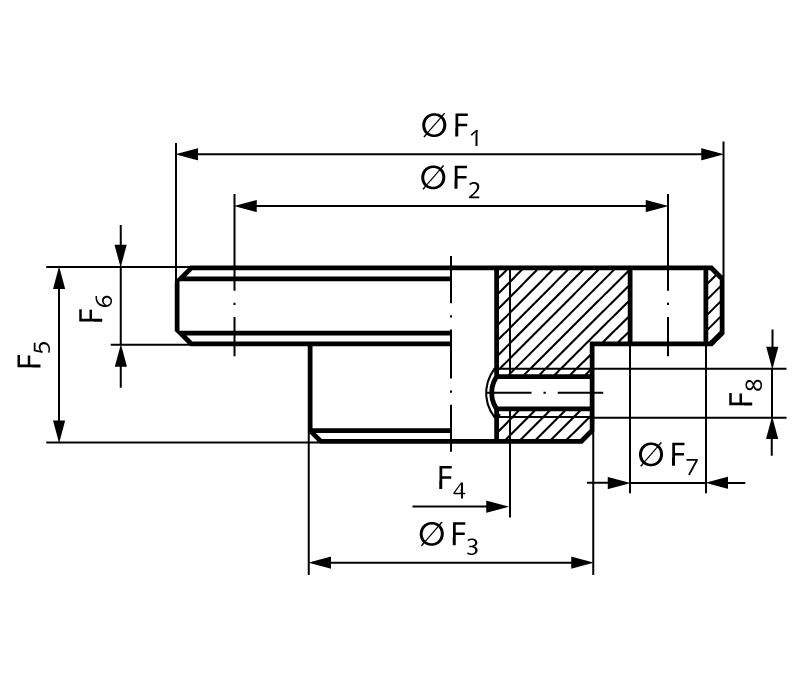

| F1 | 65 mm |
| F2 | 48 mm |
| F3 | 29 mm |
| F5 | 20 mm |
| F6 | 7 mm |
| Size | 1 |
| F4 | M12 |
| F7 | 4 x Ø9 |
| F8 | M5 |
Description
Material: Steel C45, zinc-plated. Mounting plate with metric fastening thread, for mounting on the end of the spindle.
