MÄDLERMÄDLER· Mechanics & transmission
Flange plate for worm gear screw jack NPT version A and B size 0 outer Ø 50mm M10
Manufacturer part no. 47500015
$40.51≈ 35.06 €
Price summary
Listed by MÄDLER at €35.06. Delivered to France, including shipping, VAT and any customs duty, it comes to about €60.07. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €35.06 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.01 |
| Total delivered | €60.07 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

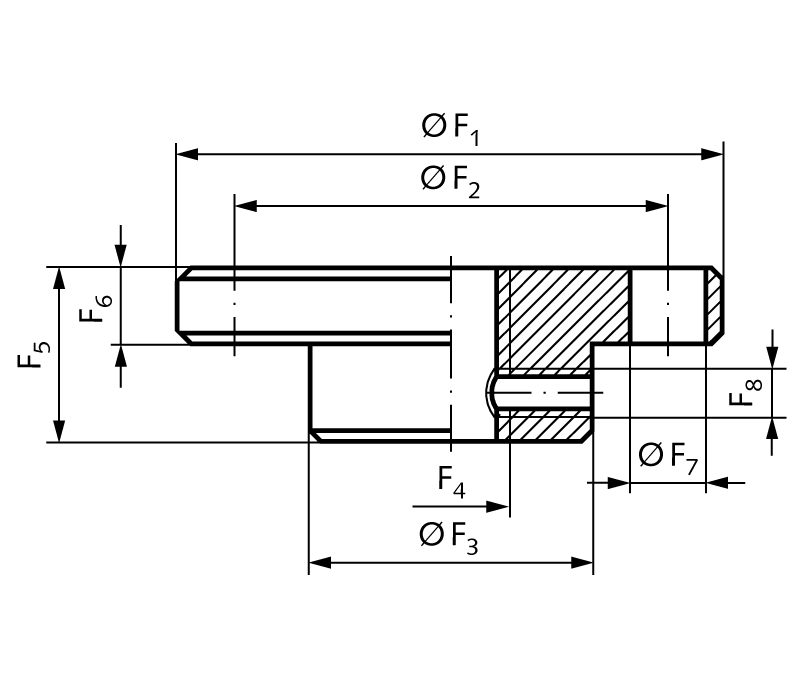

Specifications (automatically extracted)
Mechanical
| Weight | 100 g |
Other characteristics
| F1 | 50 mm |
| F2 | 40 mm |
| F3 | 26 mm |
| F5 | 16 mm |
| F6 | 7 mm |
| Size | 0 |
| F4 | M10 |
| F7 | 4 x Ø7 |
| F8 | M4 |
Description
Material: Steel C45, zinc-plated. Mounting plate with metric fastening thread, for mounting on the end of the spindle.
