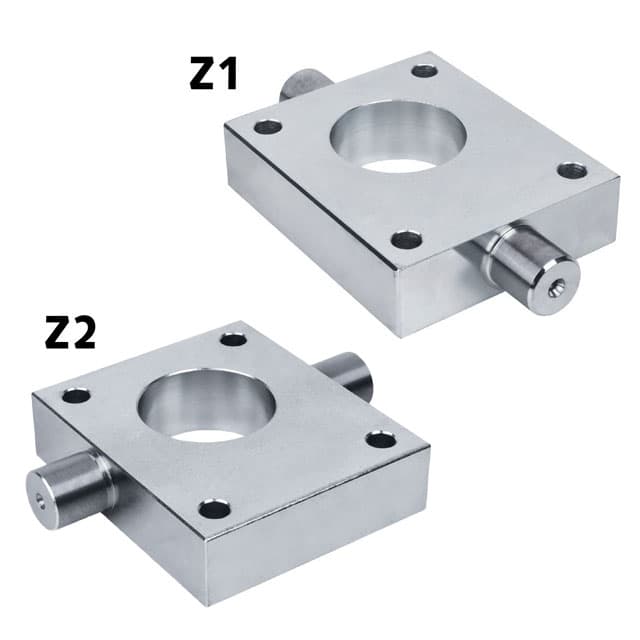

Swivel plate for worm gear screw jack NPT type Z1 size 0 64x54mm pins at short side
Manufacturer part no. 47500012
$289.82≈ 251.69 €
Price summary
Listed by MÄDLER at €251.69. Delivered to France, including shipping, VAT and any customs duty, it comes to about €320.03. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €251.69 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €53.34 |
| Total delivered | €320.03 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 400 g |
| Dimensions | 64x54mm |

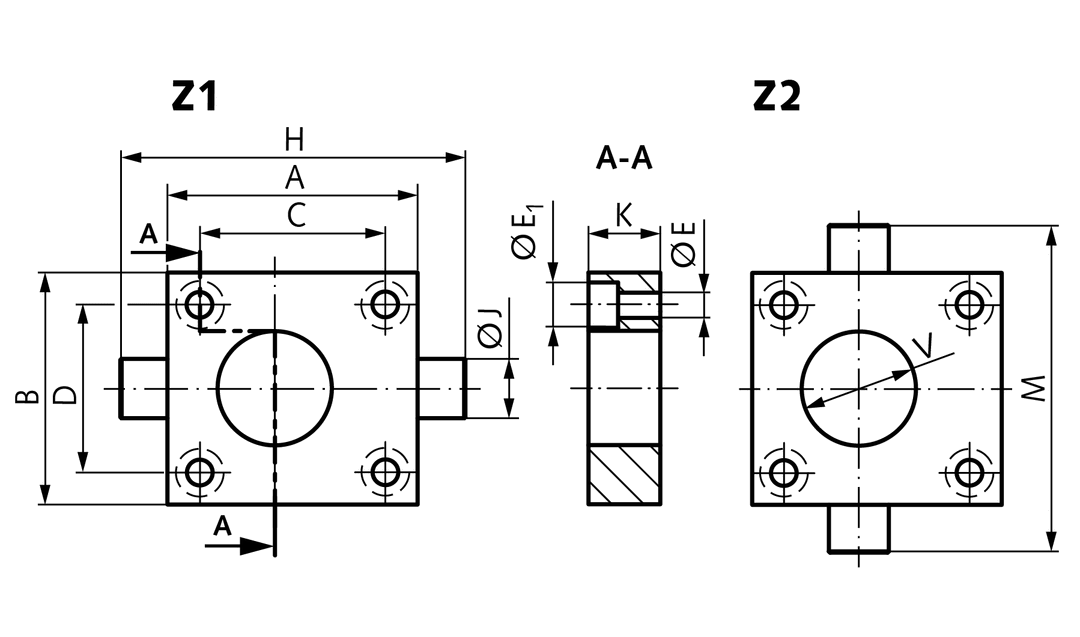

Other characteristics
| A | 64 mm |
| B | 54 mm |
| C | 48 mm |
| D | 38 mm |
| E h13 | 6.6 mm |
| E1 h13 | 11 mm |
| H | 84 mm |
| J h7 | 10 mm |
| K | 15 mm |
| M | 74 mm |
| Size | 0 |
| Size of screw head | 6 mm |
| V 0 5 | 35 mm |
| Screw norm | ISO 4762 (DIN 912) |
Description
Material: Steel St52, zinc-plated. Swivel plate incl. screws for mounting the gear unit on the top or bottom side.
