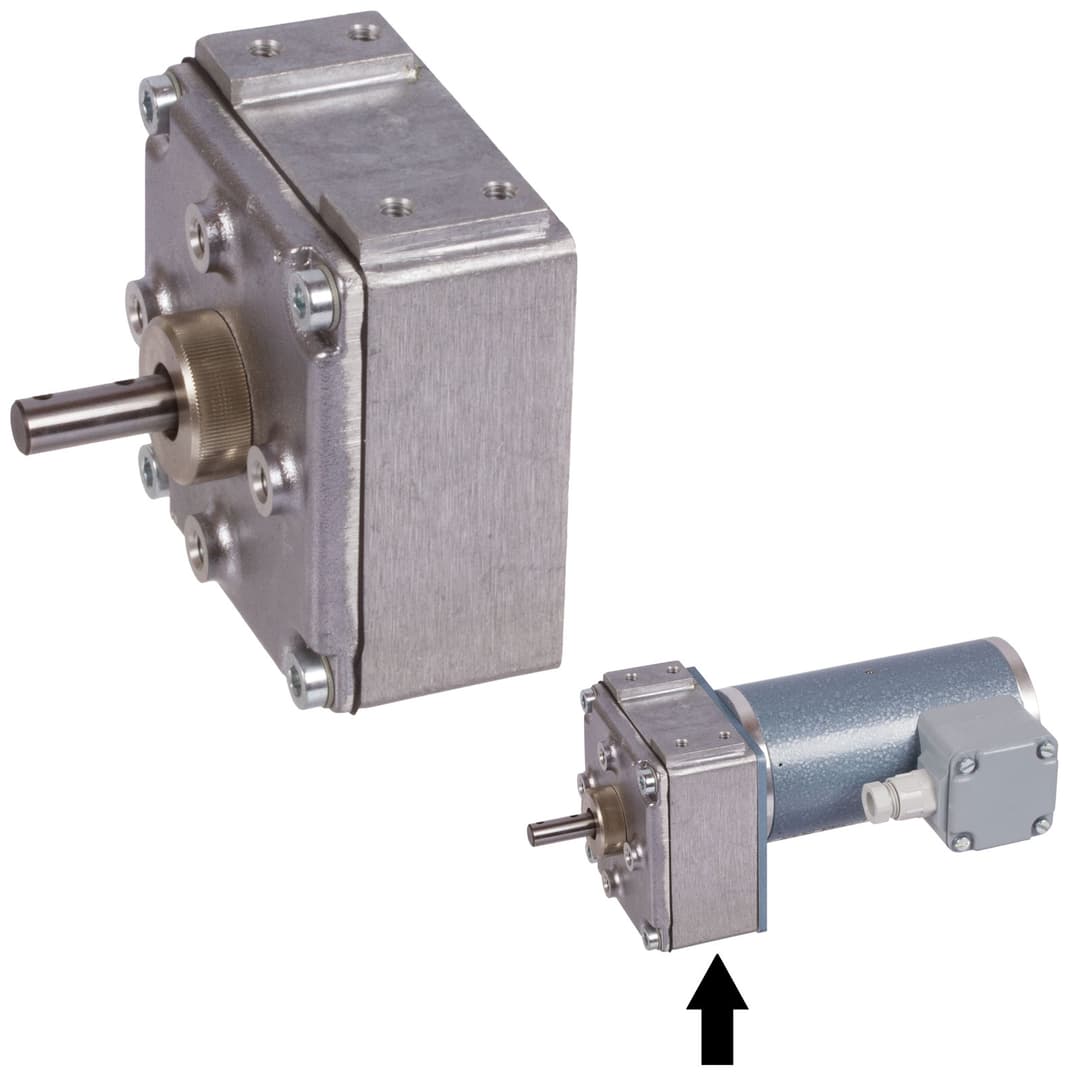

Gearbox GE/I i=480:1 matching with motors 43040100 43040300 43040500

MÄDLERMÄDLER· Motors & actuators

Gearbox GE/I i=480:1 matching with motors 43040100 43040300 43040500

Name: Gearbox GE/I i=480:1 matching with motors 43040100 43040300 43040500
Brand: MÄDLER
Price: 656.67 USD
Availability: BackOrder

Manufacturer part no. 43031301

$656.67≈ 570.27 €

Price summary

Listed by MÄDLER at €570.27. Delivered to France, including shipping, VAT and any customs duty, it comes to about €702.32. Prices last checked on 2026-08-05.

Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.

On backorderlead time 14 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€570.27
Shipping	€15.00
VAT (20%)	€117.05
Total delivered	€702.32

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

Specifications (automatically extracted)

Electrical

Power

6.7 W

Mechanical

Weight

450 g

Other characteristics

Level of efficiency	50 %
Max permanent torque	220 Ncm
Max starting torque	300 Ncm
With capacitor motor ac	168.5 mm
With dc motor	152.5 mm
Drive speed with capacitor motor ac abtriebsdreh	5.4 min-1
Drive speed with dc motor abtriebsdrehzahl	13 min-1
Ratio	480 : 1

Description

General data: Light model range, extremely high ratios. Housing: Aluminium die-cast, sealed against lubricant leaks and protected against dust, can be mounted in any position. Gearing: Depending on the arrangement of the gear stages milled from high-grade platic or steel. Bearing system: sintered bronze slide bearing. Lubrication: Maintenance free grease lubrication. Please realize: The motor has to be ordered seperately. Ordering details: e.g.: Type, Product No. DC Motor Product No. Gearbox
