MÄDLERMÄDLER· Motors & actuators

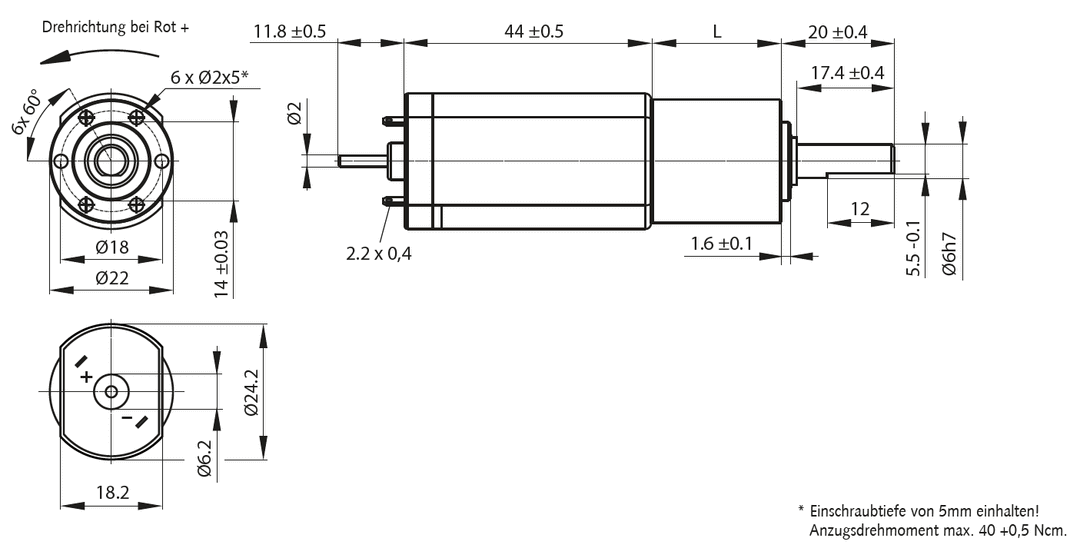

Planetary small geared motor SFP 1 with DC-motor 24V i=56:1 idle speed 140 1/min.
Manufacturer part no. 43037424
$151.12≈ 131.24 €
Price summary
Listed by MÄDLER at €131.24. Delivered to France, including shipping, VAT and any customs duty, it comes to about €175.49. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €131.24 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €29.25 |
| Total delivered | €175.49 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 24 V |
Mechanical
| Weight | 90 g |
Other characteristics
| Max current | 0.3 A |
| Max torque | 0.4 Nm |
| Nominal torque | 0.2 Nm |
| Nominal voltage | 24 V |
| Number of gear stages | 2 |
| Idle speed | 140 min-1 |
| Nominal speed | 136 min-1 |
| Ratio | 56:1 |
Description
Housing: Motor: Steel, zinc-plated. Gearbox: made of plastic. Can be mounted in any position. Teeth: Gear set made from plastic. Bearing: Output side, plain bearing, motor side, plain bearing. Lubrication: Maintenance free grease lubrication. Motor: Brushed DC motor 24 V. Change the direction of rotation by switching the polarity. Protection class acc. to EN 60529: IP 30. Operating mode as per VDE 0530: S1 at nominal torque (continous torque), S2 at higher load. Permissible radial shaft load FR: Products with 1 gear stage 15 N; with 2 gear stages 35 N; with 3 gear stages 55 N. Permissible axial shaft load FA: 25 N. Note: All values are averages, measured with the motor cold. Deviations of 10% are possible. To prevent the gearbox from being overloaded, the stated limit loads must not be exceeded. *Recommended mounts: EJOT DELTA PT WN 5452 25 x … ; Keep screw depth 5mm. Fastening torque max. 40 +0.5 Ncm. Other types (other speeds, optional incremental encoder, 12V) available on request.
