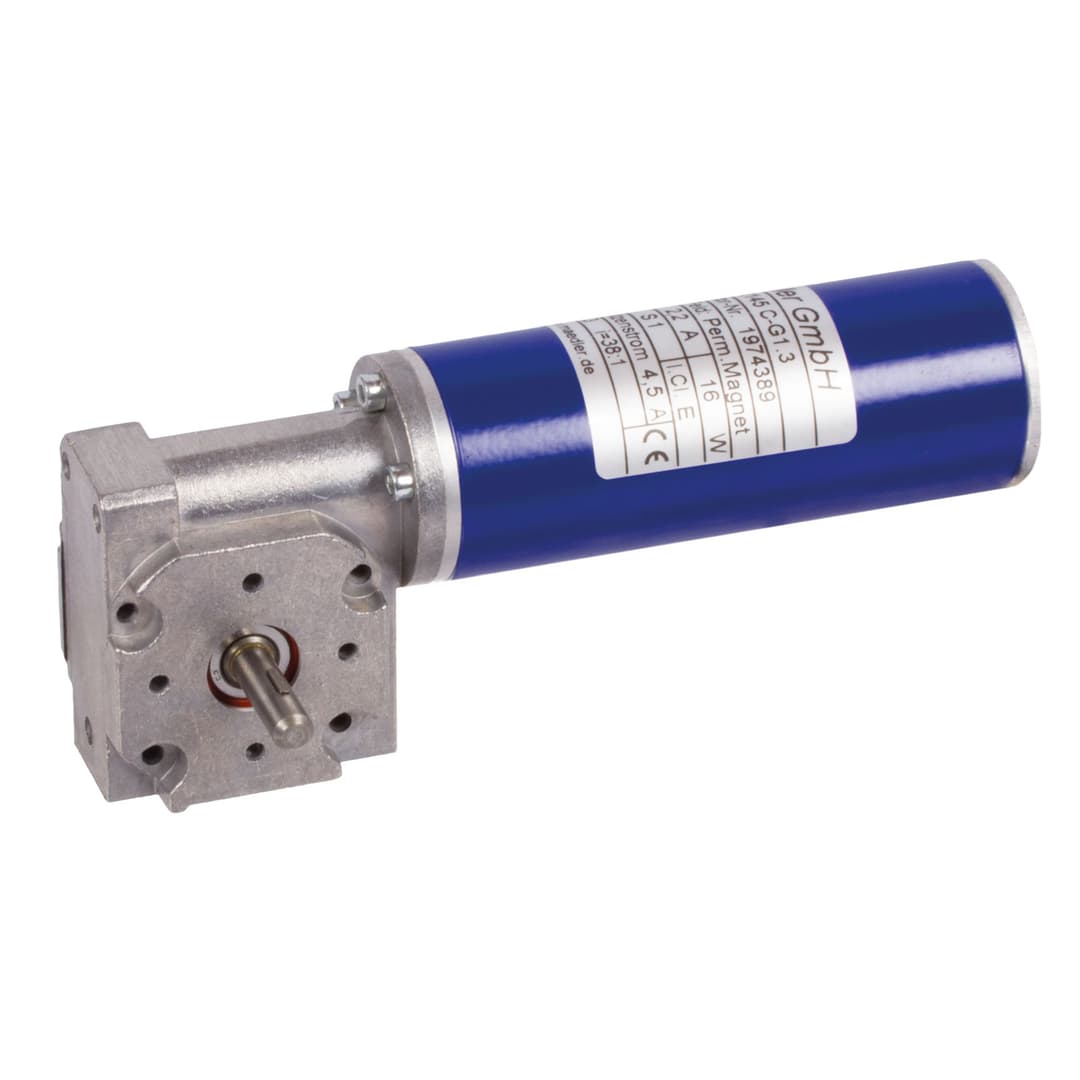

Small geared motor SE with DC motor 24V size 1 n2=522 rpm i=11.5:1

MÄDLERMÄDLER· Motors & actuators

Small geared motor SE with DC motor 24V size 1 n2=522 rpm i=11.5:1

Name: Small geared motor SE with DC motor 24V size 1 n2=522 rpm i=11.5:1
Brand: MÄDLER
Price: 634.51 USD
Availability: BackOrder

Manufacturer part no. 43041124

$634.51≈ 549.17 €

Price summary

Listed by MÄDLER at €549.17. Delivered to France, including shipping, VAT and any customs duty, it comes to about €677.00. Prices last checked on 2026-08-05.

Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.

On backorderlead time 56 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€549.17
Shipping	€15.00
VAT (20%)	€112.83
Total delivered	€677.00

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

Specifications (automatically extracted)

Electrical

Voltage

24 V

Mechanical

Speed	522 rpm
Weight	520 g

Other characteristics

Level of efficiency	77 %
Max permanent torque	0.23 Nm
Max starting torque	1.3 Nm
Nominal power	12 W
Nominal power motor	16 W
Output speed	522 min-1
Ratio	11.5 : 1

Description

Housing: Aluminium, sealed against lubricant leaks and protected against dust, can be mounted in any position. Teeth: Worm gear made from plastic, worm made from steel, ground. Not self-locking. Bearing: Motor and gearbox with roller bearing. Lubrication: Maintenance free grease lubrication. Motor: DC Motor 12 V or 24 V. Nominal motor speed 6000 rpm, worm pinned on motor shaft. Free lead ends. Sense of rotation can be changed by swapping leads over. Protection class according to VDE 0530: IP 21 Insulation class according to VDE 0530: E Operating mode as per VDE 0530: S1
