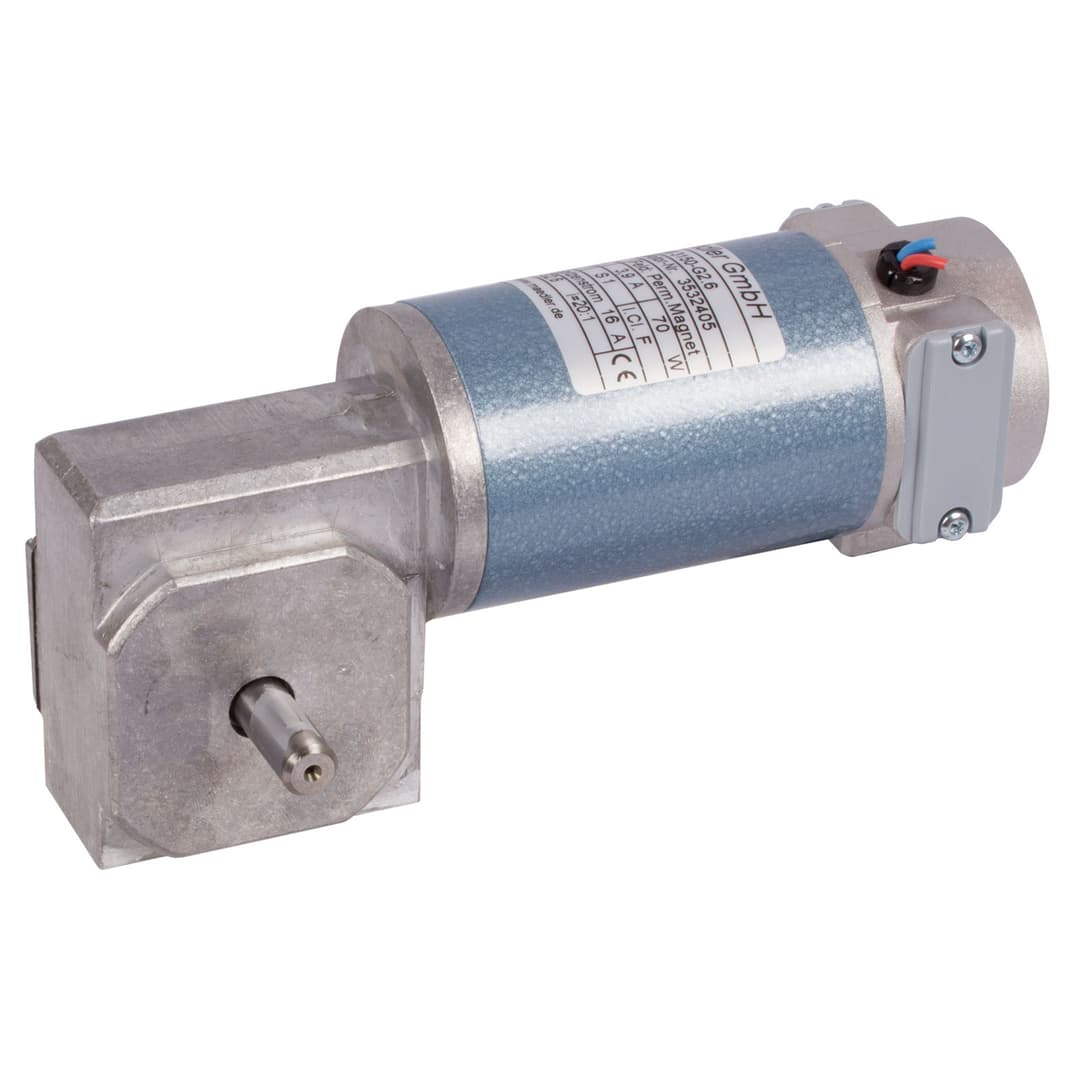

Small geared motor SE with DC motor 24V size 3 n2=200 rpm i=20:1

MÄDLERMÄDLER· Motors & actuators

Small geared motor SE with DC motor 24V size 3 n2=200 rpm i=20:1

Name: Small geared motor SE with DC motor 24V size 3 n2=200 rpm i=20:1
Brand: MÄDLER
Price: 700.02 USD
Availability: BackOrder

Manufacturer part no. 43043524

$700.02≈ 607.92 €

Price summary

Listed by MÄDLER at €607.92. Delivered to France, including shipping, VAT and any customs duty, it comes to about €747.50. Prices last checked on 2026-08-05.

Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.

On backorderlead time 14 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€607.92
Shipping	€15.00
VAT (20%)	€124.58
Total delivered	€747.50

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

Specifications (automatically extracted)

Electrical

Voltage

24 V

Mechanical

Speed	200 rpm
Weight	1.6 kg

Other characteristics

Level of efficiency	70 %
Max permanent torque	2.4 Nm
Max starting torque	8 Nm
Nominal power	49 W
Nominal power motor	70 W
Nominal speed motor	4000 min-1
Output speed	200 min-1
Ratio	20 : 1

Description

Housing: Aluminium, sealed against lubricant leaks and protected against dust, can be mounted in any position. Teeth: Worm gear made from plastic, worm made from steel, ground. Not self-locking. Bearing: Motor and gearbox with roller bearing. Lubrication: Maintenance free grease lubrication. Motor: DC motor 24 V. Worm pinned on motor shaft. Free lead ends. Sense of rotation can be changed by swapping leads over. Protection class according to VDE 0530: IP 41 Insulation class according to VDE 0530: F Operating mode as per VDE 0530: S1
