MÄDLERMÄDLER· Motors & actuators

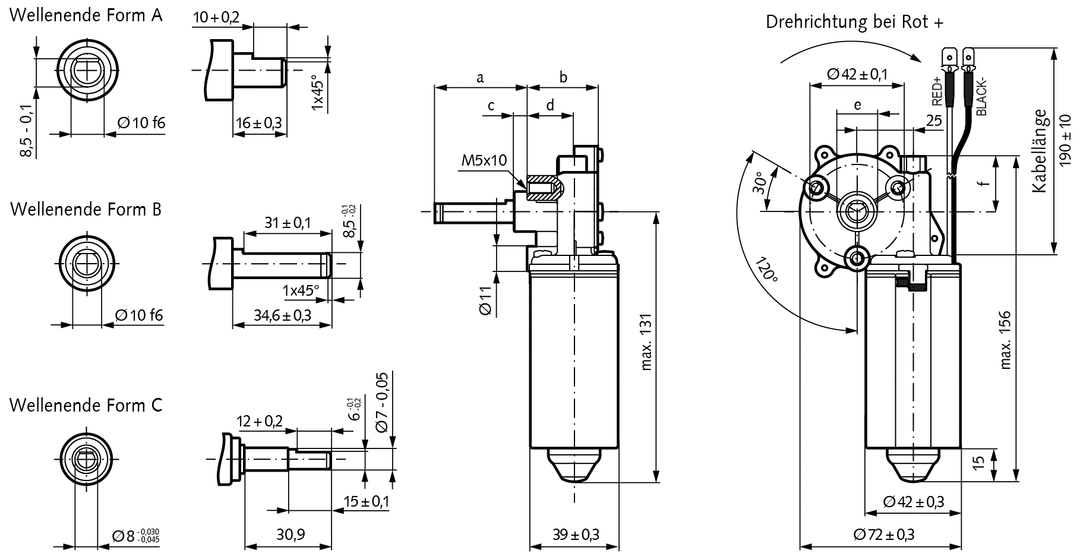

Miniature worm gear motor SFS Gr. 2 with DC-motor 24V i=62:1 idle speed 50 /min
Manufacturer part no. 43047124
$152.89≈ 132.77 €
Price summary
Listed by MÄDLER at €132.77. Delivered to France, including shipping, VAT and any customs duty, it comes to about €177.32. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €132.77 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €29.55 |
| Total delivered | €177.32 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 24 V |
Mechanical
| Weight | 700 g |
Other characteristics
| Nominal current | 1.5 A |
| Nominal power | 8.4 W |
| Nominal torque | 2 Nm |
| Nominal voltage | 24 V |
| Tightening torque | 10 Nm |
| Idle speed | 50.0 min-1 |
| Nominal speed | 40.0 min-1 |
| Ratio | 62:1 |
| Shaft end shape | B |
Description
Housing: Motor: Steel, zinc-plated. Gearbox: Aluminium. Can be mounted in any position. Teeth: Worm gear set made from plastic. Bearing: Output side, plain bearing, motor side, ball bearing. Lubrication: Maintenance free grease lubrication. Motor: DC motor 12 V or 24 V, interference-free. Change the direction of rotation by switching the polarity. Protection class acc. to EN 60529: IP 30. Operating mode as per VDE 0530: S2-10 min. Permissible ambient operating temperature: -10 to +60°C. Caution: Output shaft and shaft form side as per the table. Ordering Details: e.g.: Type, idle speed, Product No.
