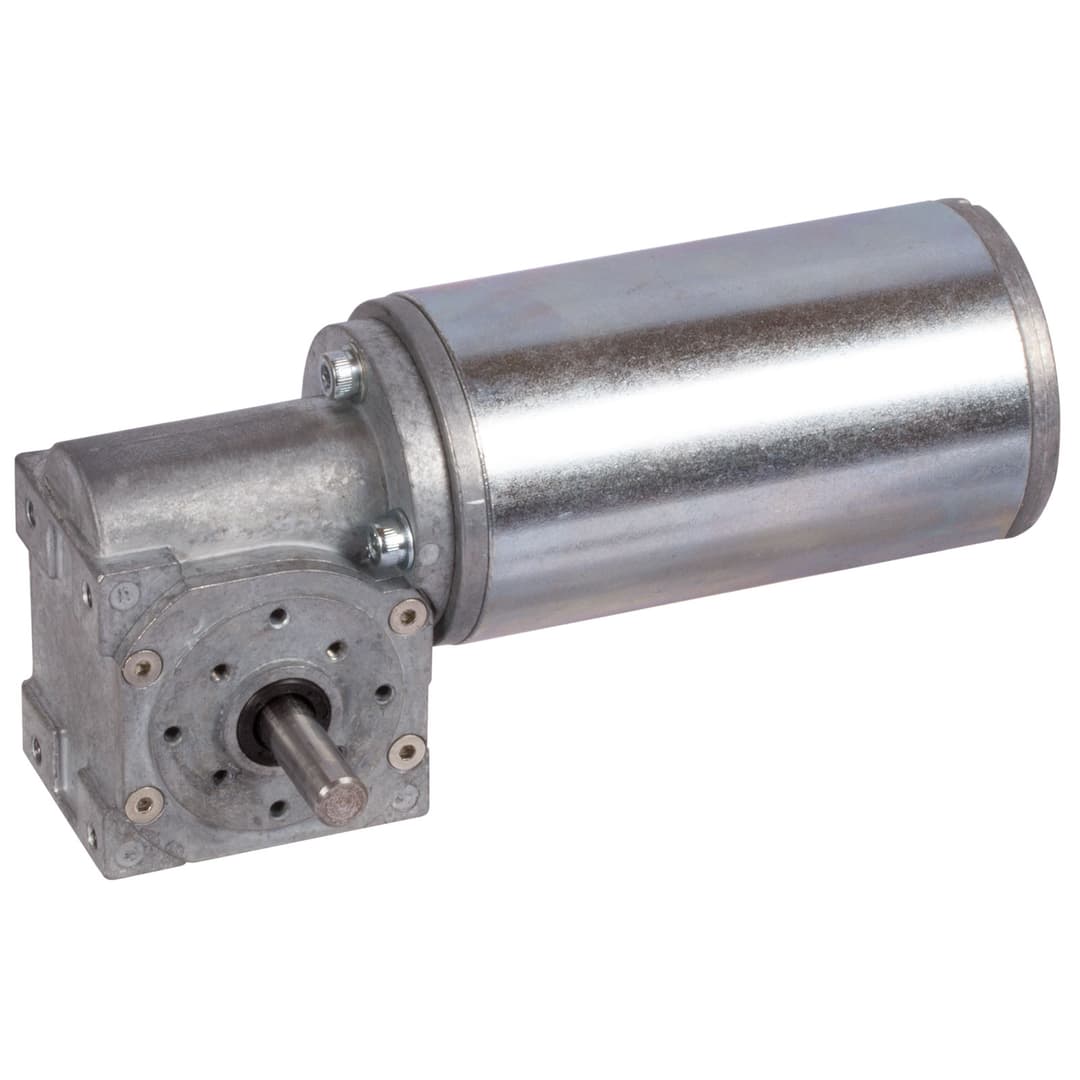

Small worm geared motor SG with permament magnet DC motor 24V 28W n2=200/min i=15:1 output shaft side 1
Manufacturer part no. 43049105
$345.09≈ 299.69 €
Price summary
Listed by MÄDLER at €299.69. Delivered to France, including shipping, VAT and any customs duty, it comes to about €377.63. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €299.69 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €62.94 |
| Total delivered | €377.63 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 24 V |
Mechanical
| Weight | 1 kg |
Other characteristics
| Current consumption | 1.9 A |
| Max permanent torque effective dauerdrehmoment | 0.7 Nm |
| Max torque | 4.3 Nm |
| Output | 28 W |
| Output speed | 200 min-1 |
| Ratio | 15:1 |
Description
Housing: Aluminium, sealed against lubricant leaks and protected against dust, can be mounted in any position. Output shaft: on side 1. Teeth: Worm gear made from special bronze, worm made from steel, hardened and ground. Bearing: Motor and gearbox with roller bearing. Lubrication: Maintenance free grease lubrication. Motor: Permament magnet DC Motor 24 V. Nominal motor speed 3,000 min-1, with relatively constant speed characteristics. Free lead ends. Sense of rotation can be changed by swapping leads over. Protection class IP 40. Insulation class B. Operating mode S1. Output shaft on Side 1.
