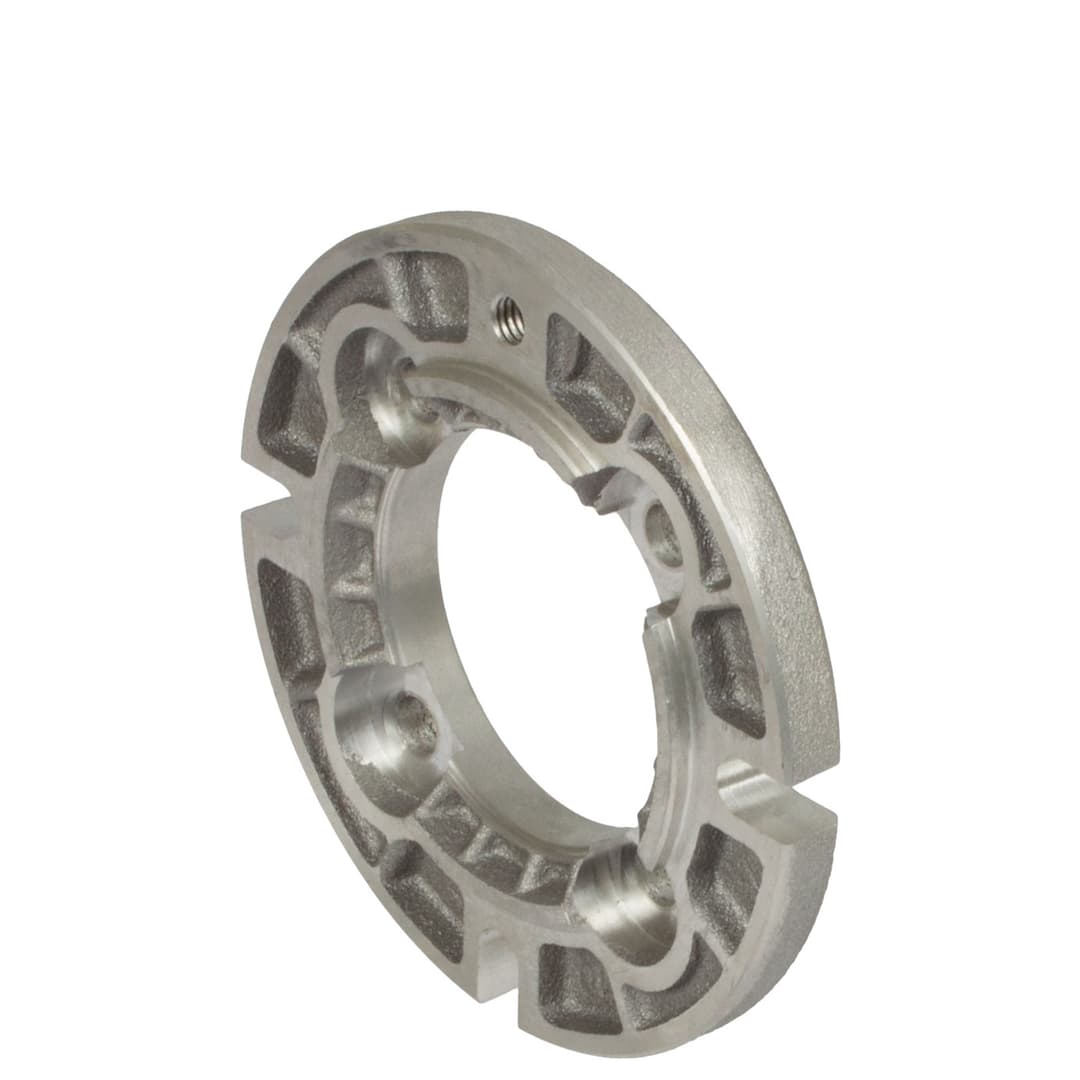

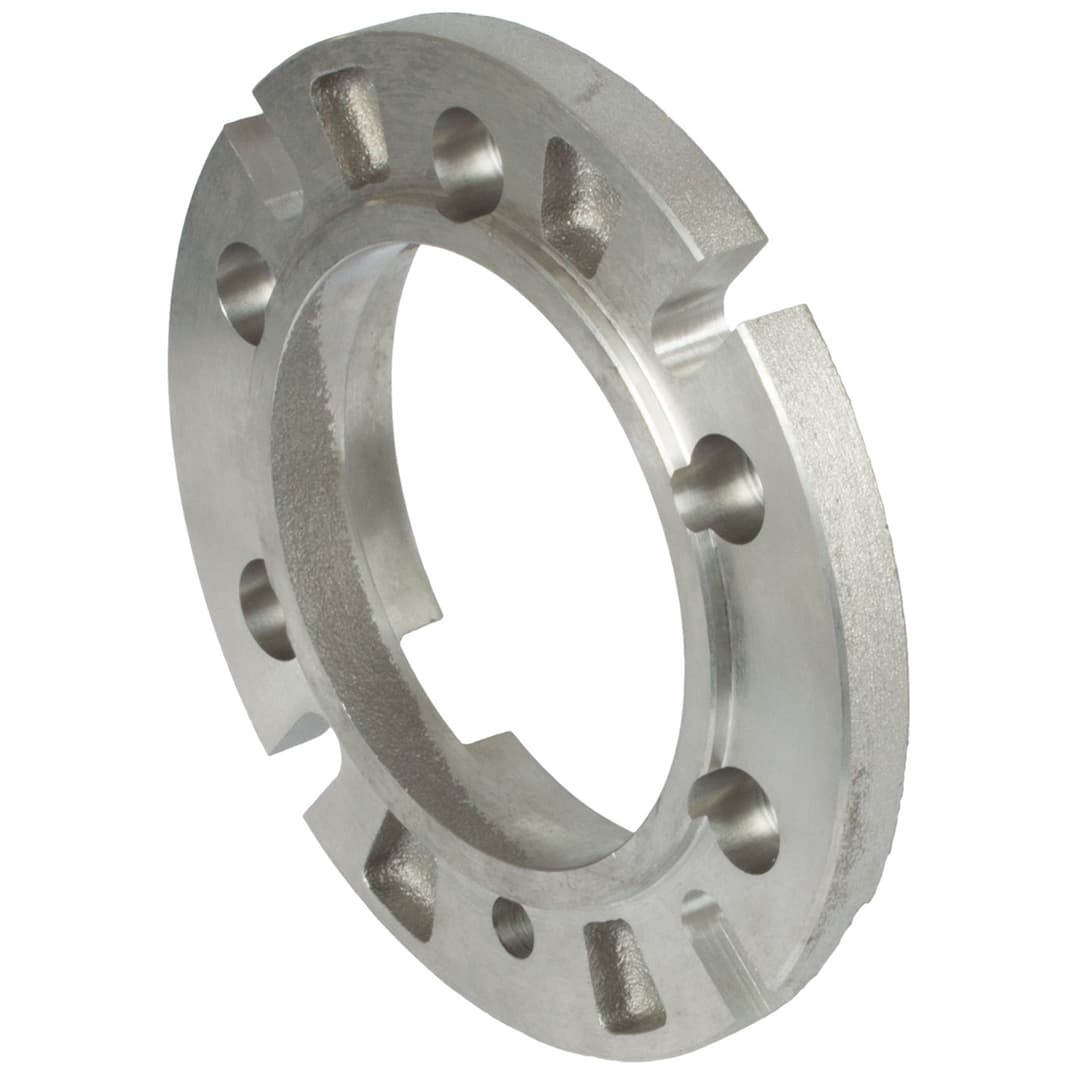

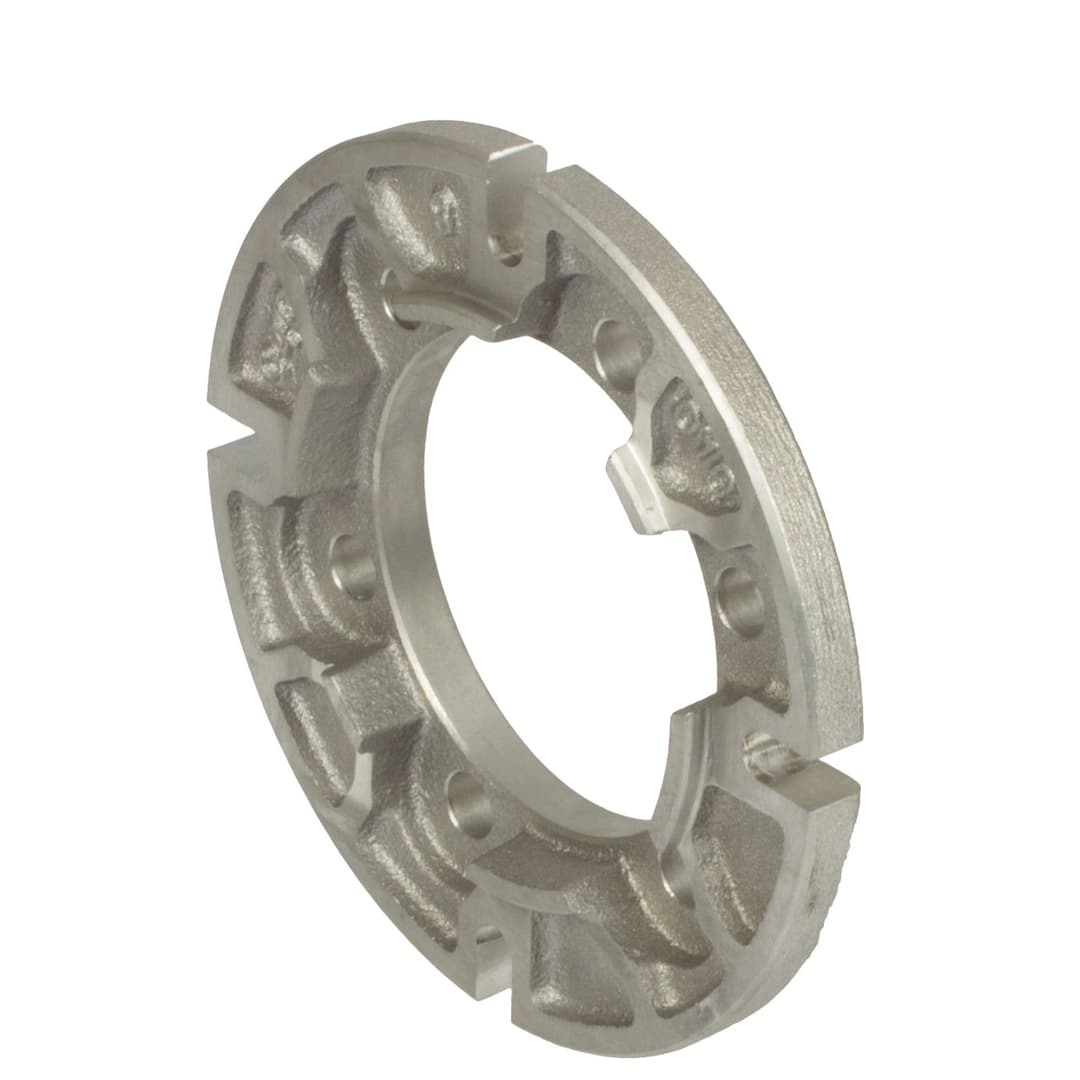

Output flange for helical geared motor HR/I gearbox size 20/2 and 30/2 diameter 200mm overall height 15mm
Manufacturer part no. 43202020
$35.84≈ 31.12 €
Price summary
Listed by MÄDLER at €31.12. Delivered to France, including shipping, VAT and any customs duty, it comes to about €55.34. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 56 d
Estimated landed cost
| Item | €31.12 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.22 |
| Total delivered | €55.34 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 610 g |

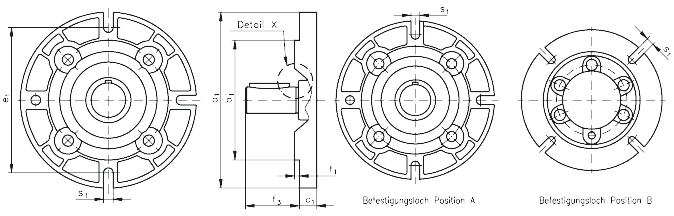

Other characteristics
| Distand of slots | 165 mm |
| Flange diameter | 200 mm |
| Flange width | 11.5 mm |
| Hole circle diameter | 130 mm |
| Hub length | 3.5 mm |
| Length of shaft to flange | 36.5 mm |
| Overhang | 7 mm |
| Slot width | 11 mm |
| Mount hole position | B |
Description
Material: Aluminium Output-side flange for helical geared motor HR/I to be mounted by the customer, for modification from foot mounting B3 to flange mounting B5. For every gearbox size there are flanges in several, common diameters available. The flange is supplied with the required mounting screws and can be easily screwed on. The screwed on foot mounting can be taken off the gearbox, if required.
