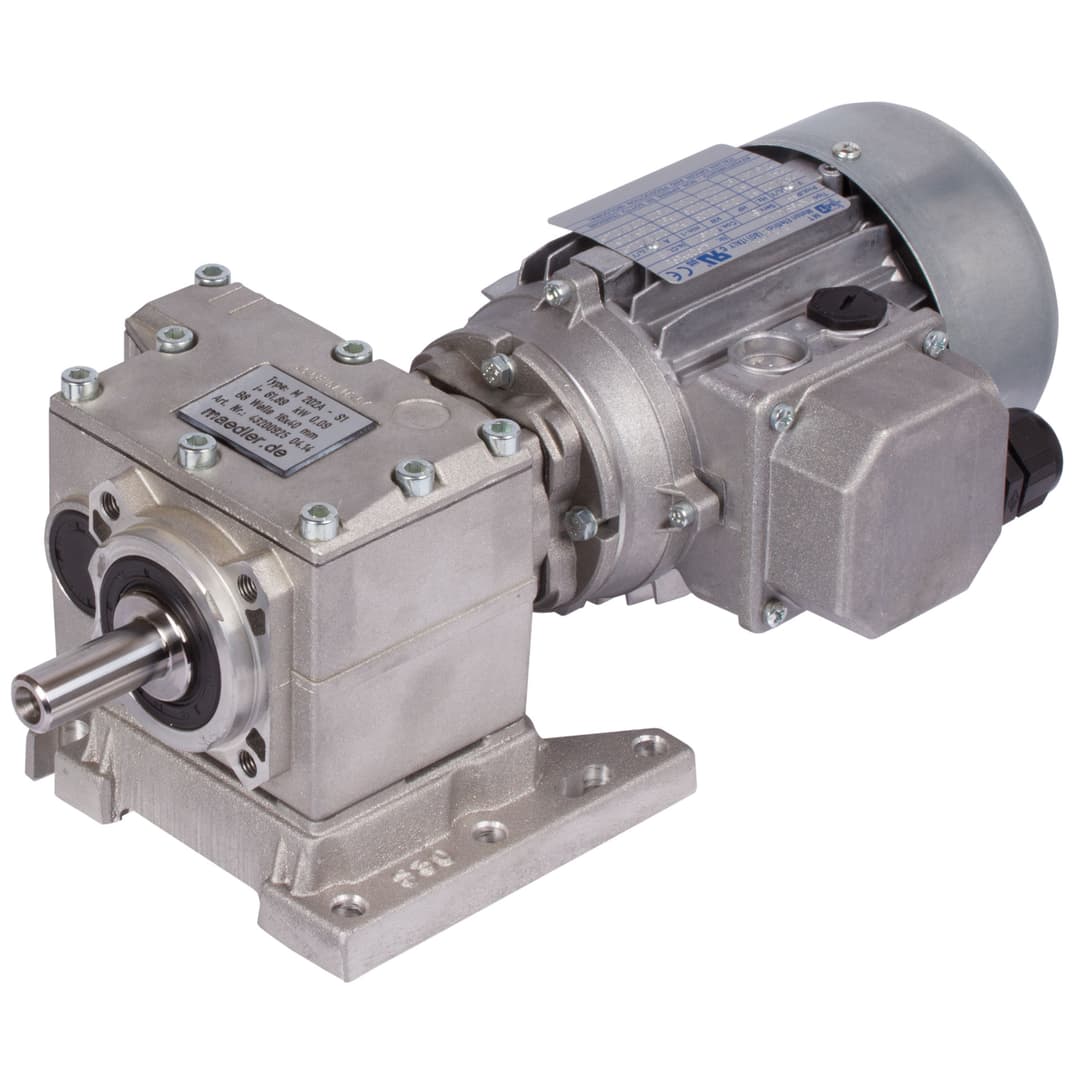

Helical geared motor HR/I 0.75kW 230/400V 50Hz model B3 IE3 n2 =89 rpm Md2 =78 Nm (For operating instructions please visit the download area of our website www.maedler.de)
Manufacturer part no. 43207547
$1139.92≈ 989.94 €
Price summary
Listed by MÄDLER at €989.94. Delivered to France, including shipping, VAT and any customs duty, it comes to about €1205.93. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 56 d
Estimated landed cost
| Item | €989.94 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €200.99 |
| Total delivered | €1205.93 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Power | 750 W |
| Voltage | 400 V |
Mechanical
| Speed | 89 rpm |
| Torque | 795.366 kg·cm |
| Weight | 16 kg |
Other characteristics
| Max output torque | 78 Nm |
| Operating facor | 1.7 |
| Ratio total | 16.2 |
| Gearbox size | 40/2 |
| Motor size | 80B4 |
| Output speed | 89 min-1 |
Description
Housing: Aluminium, corrosion-inhibiting coating, with mounting holes for foot and flange mounting and with removable twist cap for easy service. Gearing: Hardened and ground. Lubrication: Synthetic oil (lubricated for life). Motor: Standard three-phase motor with small flange B14, 230/400V, 50 Hz. Other Motor versions (AC Motor, posistor, forced ventilation, break etc.) on request. Efficiency class: 0.09 kW: IE1. From 0.12 to 0.55 kW: IE2. From 0.75 kW: IE3. Light-weight, high-quality model range with many mounting options. These maintenance free, geared motors without ventilation can be used in any mounting position. Variable mounting: These geared motors are supplied with a screwed-on foot mounting. If flange mounting is required or if the motor is to be mounted on an existing base plate, this foot can simply be unscrewed. Retrofittable flange: If the motor is to be flange mounted on the output side, a flange can be srewed on by the customer. These flanges B5 are available in several diameters and have to be ordered separately.
