MÄDLERMÄDLER· Motors & actuators

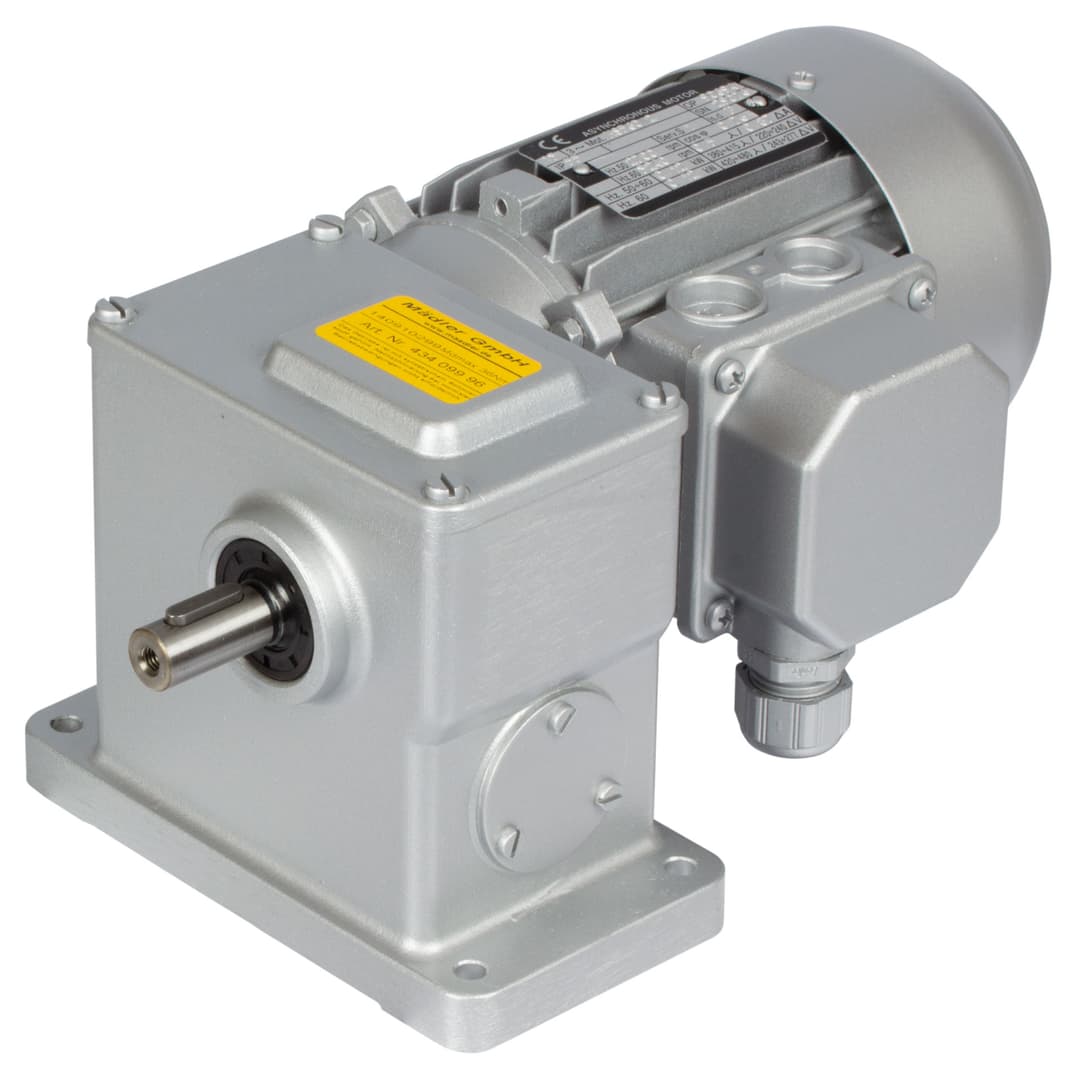

Worm geared motor RM 90 Watt 230/400V 50Hz IE1 i=500:1 output speed approx. 2.8 rpm permitted Md2=35Nm (For operating instructions please visit the download area of our website www.maedler.de)
Manufacturer part no. 43408500
$781.77≈ 678.91 €
Price summary
Listed by MÄDLER at €678.91. Delivered to France, including shipping, VAT and any customs duty, it comes to about €832.69. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €678.91 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €138.78 |
| Total delivered | €832.69 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 400 V |
Mechanical
| Torque | 356.895 kg·cm |
| Weight | 5.7 kg |
Other characteristics
| Capacity | 10 µF |
| Max output torque | 35 * Nm |
| Motor power | 90 Watt W |
| Optional operating capacitor partno | 436 359 00 |
| Output speed | 2.8 min-1 |
| Ratio | 500 : 1 |
Description
230/400V, 50Hz, IP54, isolation class F. Efficiency class: 90W IE1, 120W IE2. Can also be connected to alternating current using an operating capacitor. Motor and gearbox with roller bearing. Worms hardened and ground. Worm gears made from special brass. Note: Torques marked with * are stability related maximum torques. Dimensions without stated tolerances are non-binding.
