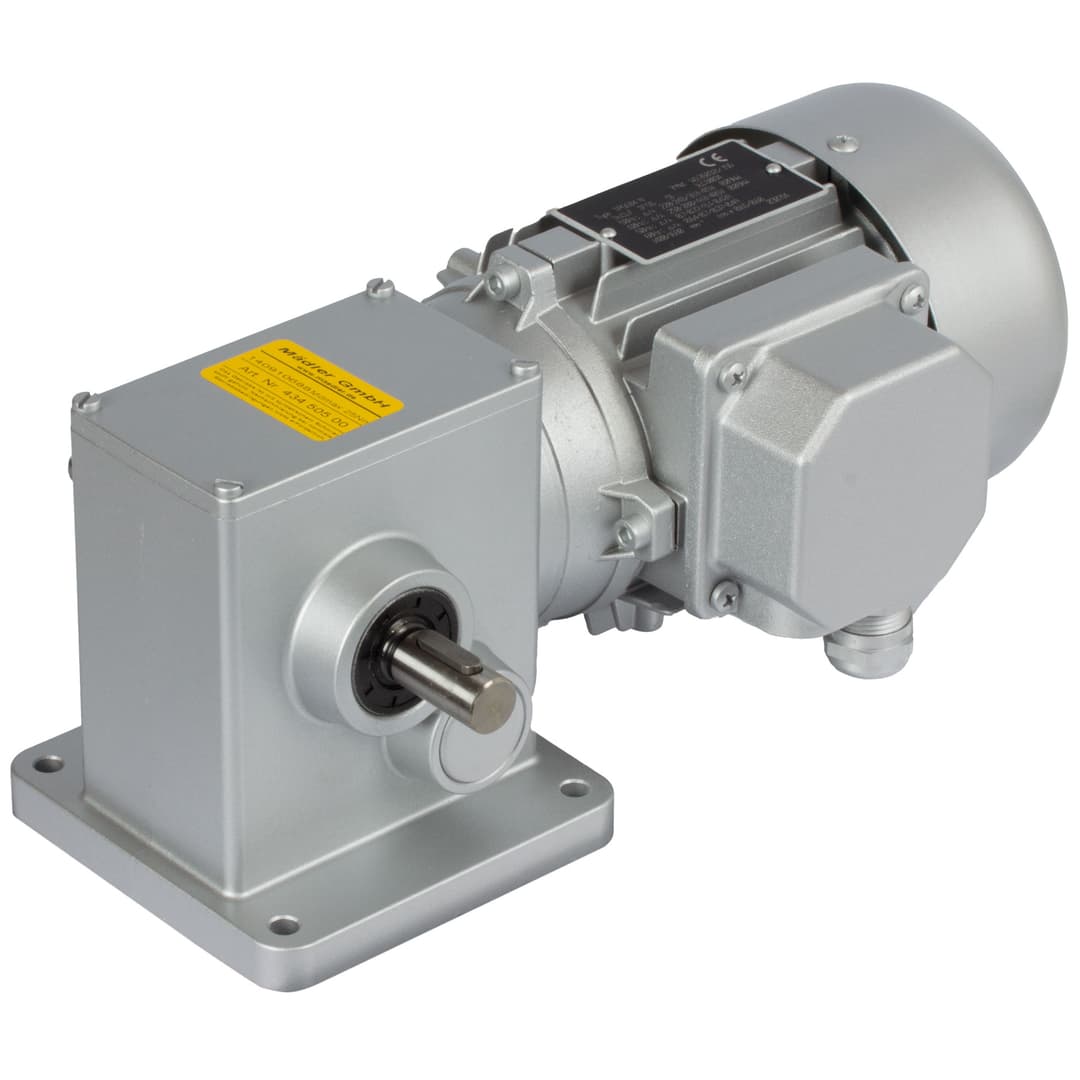

Helical worm geared motor SRM 90 Watt 230/400V 50Hz IE1 i=375:1 output speed approx. 3.7 rpm permitted Md2=25Nm (For operating instructions please visit the download area of our website www.maedler.de)
Manufacturer part no. 43450375
$738.86≈ 641.65 €
Price summary
Listed by MÄDLER at €641.65. Delivered to France, including shipping, VAT and any customs duty, it comes to about €787.98. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €641.65 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €131.33 |
| Total delivered | €787.98 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 400 V |
Mechanical
| Torque | 254.925 kg·cm |
| Weight | 5.2 kg |
Other characteristics
| Capacity | 10 µF |
| Max output torque | 25 * Nm |
| Motor power | 90 Watt W |
| Optional operating capacitor partno | 436 359 00 |
| Output speed | 3.7 min-1 |
| Ratio | 375 : 1 |
Description
230/400V, 50Hz, IP54, isolation class F. Efficiency class: 90W IE1, 120W IE2. Can also be connected to alternating current using an operating capacitor. Motor and gearbox with roller bearing. 1st stage: Worms hardened and ground, Worm gears special brass. 2nd stage: Helical gear set hardened and grounded Note: Torques marked with * are stability related maximum torques. Dimensions without stated tolerances are non-binding.
