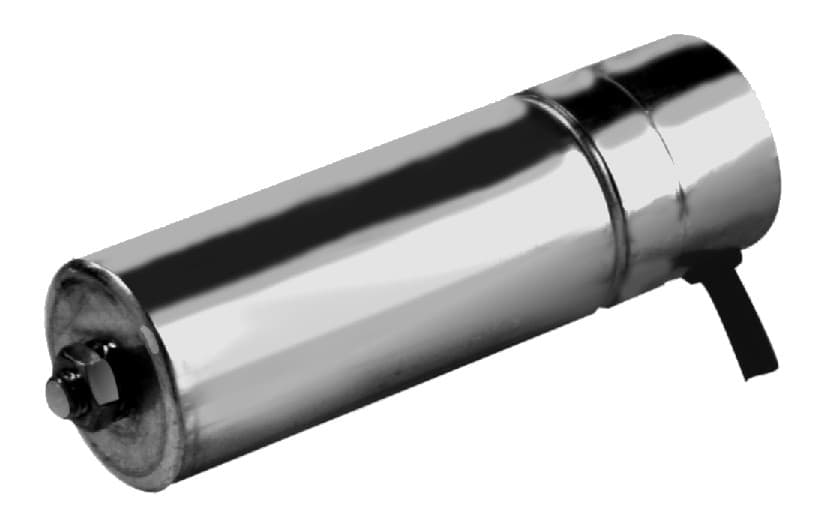

Operating capacitor KST 2.0µF 400V
Manufacturer part no. 43635200
$29.37≈ 25.45 €
Price summary
Listed by MÄDLER at €25.45. Delivered to France, including shipping, VAT and any customs duty, it comes to about €48.54. Prices last checked on 2026-08-07.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €25.45 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.09 |
| Total delivered | €48.54 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 400 V |
Other characteristics
| Capacity | 2 µF |
| Weight gewicht kg | 0.71 kg |
| Diameter x length | 26 x 87 mm |
Description

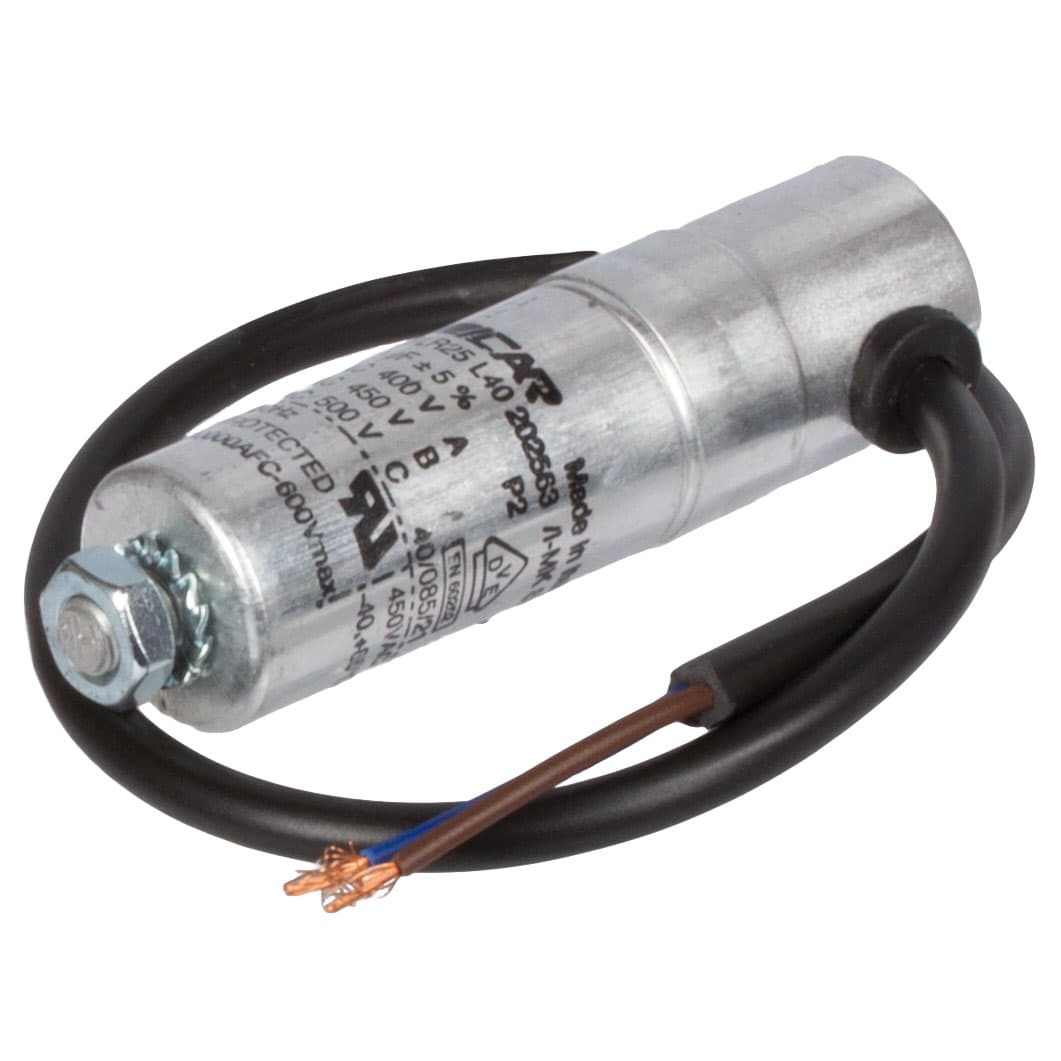

Aluminium housing, metal-polypropylene. For 30.000 operating hours. According to VDE to 25µF. The capacitors have a protective cap made from aluminium and a 180mm cable connected on the side. On the bottom there is a mounting screw with toothed lock washer and nut. Technical Data: Capacity tolerance ±10%. Frequency 50 to 60 Hz. Voltage 400 V. Loss < 0.3%. Temperature range -25 to +85°C. Insulation test voltage (2 Sec.) 2.5 kV (to ground).
