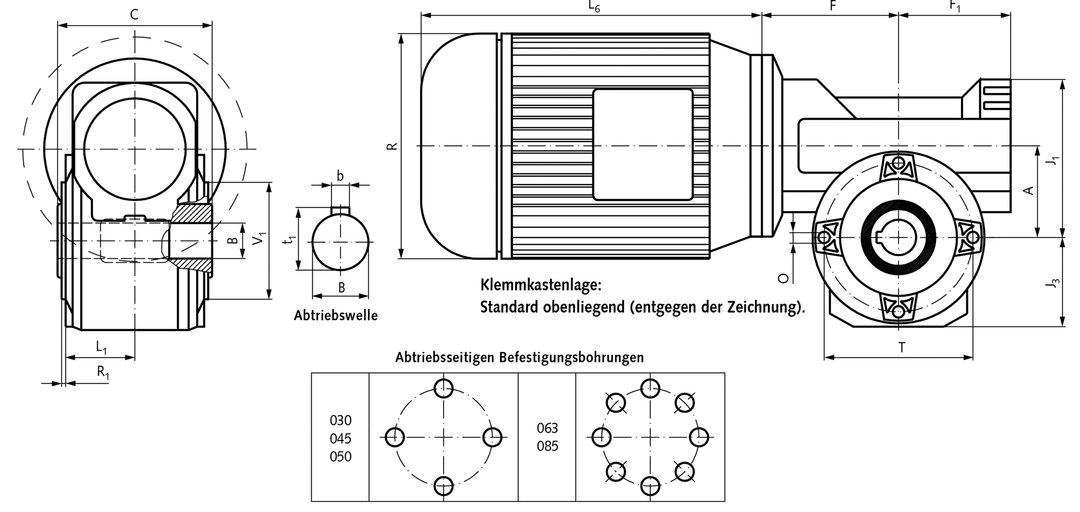

Worm geared motor HMD/I basic version gearbox size 085 n2=15.0 rpm 0.75kW 230/400V 50Hz IE3 output hollow shaft (For operating instructions please visit the download area of our website www.maedler.de)
Manufacturer part no. 43807505
$1306.18≈ 1134.33 €
Price summary
Listed by MÄDLER at €1134.33. Delivered to France, including shipping, VAT and any customs duty, it comes to about €1379.20. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 56 d
Estimated landed cost
| Item | €1134.33 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €229.87 |
| Total delivered | €1379.20 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Power | 750 W |
| Voltage | 400 V |
Mechanical
| Weight | 21 kg |
Other characteristics
| Gearbox size | 85 |
| Max output torque | 256 Nm |
| Operating facor | 0.9 |
| Ratio total | 96 |
| Motor size | 80B4 |
| Optional doublesided output shaft partno | 438 082 00 |
| Optional foot mounting partno | 438 083 00 |
| Optional onesided output shaft partno | 438 081 00 |
| Optional output flange parto | 438 084 00 |
| Output speed | 15.0 min-1 |
Description
Housing: Aluminium, corrosion-inhibited coating, with mounting holes for flexible foot and flange mounting. Housing: Aluminium, corrosion-inhibited coating, with mounting holes for flexible foot and flange mounting. Worm shaft: Hardened and ground. Worm gear: Bronze on grey cast iron hub. Lubrication: Synthetic oil (lubricated for life). Motor: Standard three-phase motor with small flange B14, 230/400V, 50Hz. Other motor versions (AC motor, posistor, forced ventilation, brake etc.) on request. Efficiency class: 0.09 kW: IE1. From 0.12 to 0.55 kW: IE2. From 0.75 kW: IE3. Light-weight, high-quality model range with many mounting options. These maintenance-free, geared motors without ventilation can be used in any mounting position. The mounting positions V5 and V6 (worm shaft vertical) are however not recommended for continuous operation. Output shaft push-in type: The basic gearbox version has a hollow shaft. They can, however, also be supplied with a push-in type output shaft (single sided, to be used left and right, or double sided). These output shafts have their own product number and have to be ordered separately. Variable mounting: The geared motors are supplied without foot mounting. The foot mounting, which has to be ordered separately, can however easily be screwed on, if a foot mounting is required. The position of the foot can be changed for different mounting positions. Retrofittable flange: If an output-side flange mounting is required, this flange can easily be mounted by the customer. These flanges have their own product number and have to be ordered separately.
