MÄDLERMÄDLER· Motors & actuators

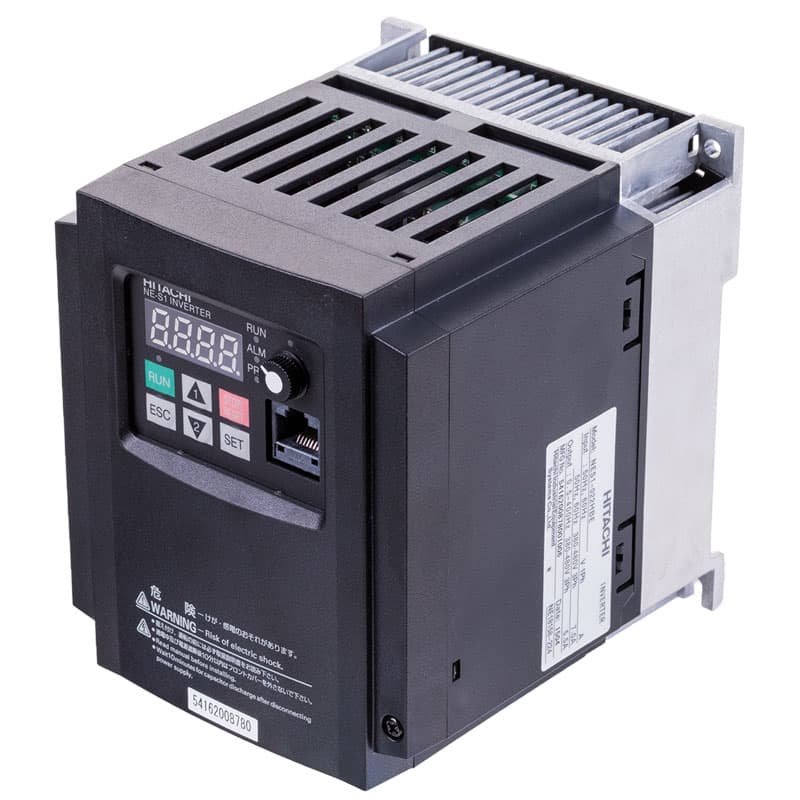

Frequency inverter NES1 1-phase up to nominal motor power 0.25 kW supply voltage 1 x 230V with operator panel mounted
Manufacturer part no. 46011025
$357.95≈ 310.86 €
Price summary
Listed by MÄDLER at €310.86. Delivered to France, including shipping, VAT and any customs duty, it comes to about €391.03. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €310.86 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €65.17 |
| Total delivered | €391.03 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 230 V |
Mechanical
| Weight | 1.6 kg |
Other characteristics
| Input current | 2.7 A |
| Input fuse | 10 A |
| Output current | 1.4 A |
| Output power | 0.25 kW |
| Phases no | 1 |
| Dimensions hxwxl | 128 x 68 x 76 mm |
| Input voltage | 1 x 230 V |
| Output voltage | 3 x 0-240 V |
| Type | NES1-002 SBE |
Description
Frequency Inverters NES1 from brand manufacturer Hitachi, for controlling and speed setting of 3-phase motors. Main features of this series are easy parametrisation, a clearly arranged control panel and easy operation. The automatic energy saving function adapts voltage and current to the motor´s load conditions for minimizing energy consumption. Delivery including mounted operating panel NES1-OP with LED display.
