MÄDLERMÄDLER· Motors & actuators

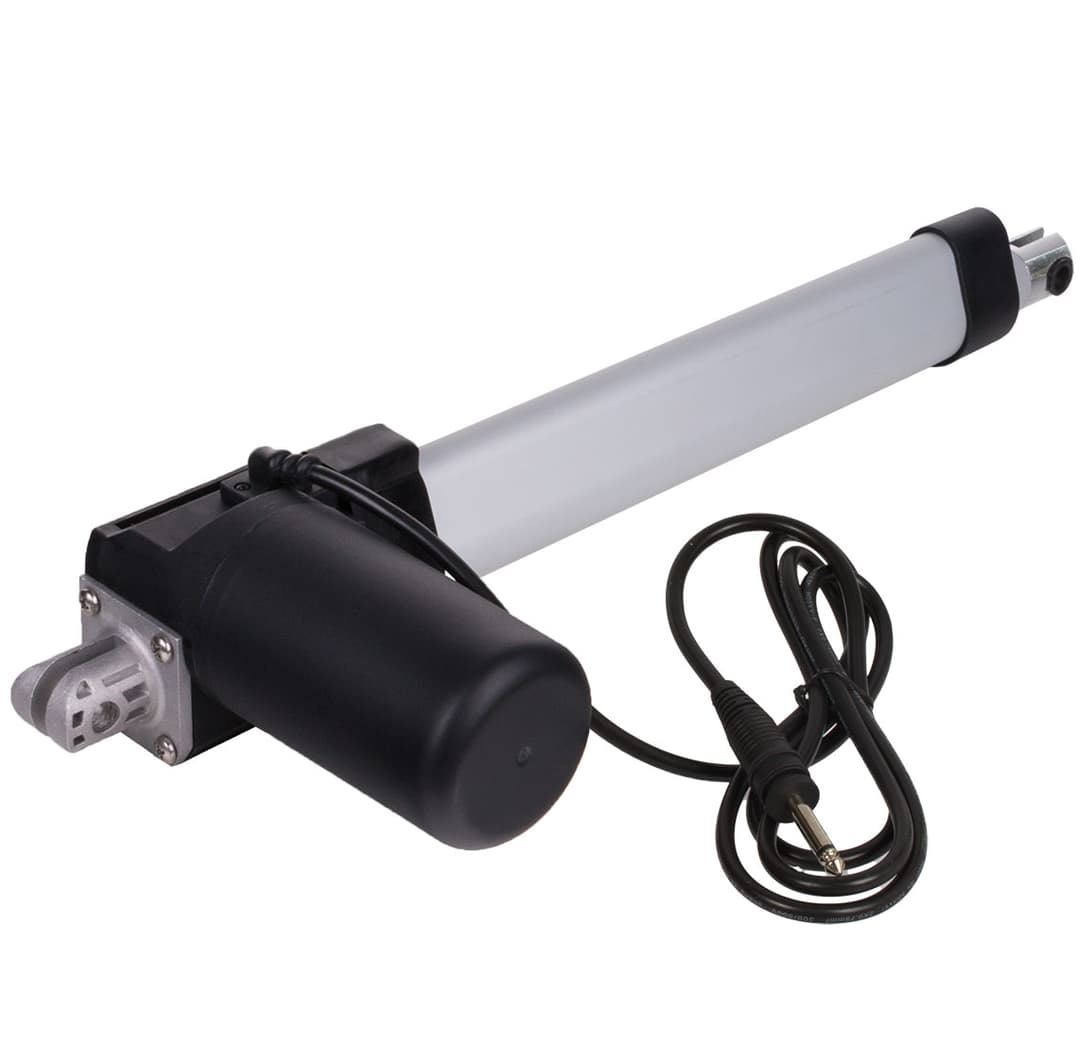

Actuator GR/I speed 3mm/s stroke 500mm
Manufacturer part no. 47513050
$789.42≈ 683.24 €
Price summary
Listed by MÄDLER at €683.24. Delivered to France, including shipping, VAT and any customs duty, it comes to about €837.89. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €683.24 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €139.65 |
| Total delivered | €837.89 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

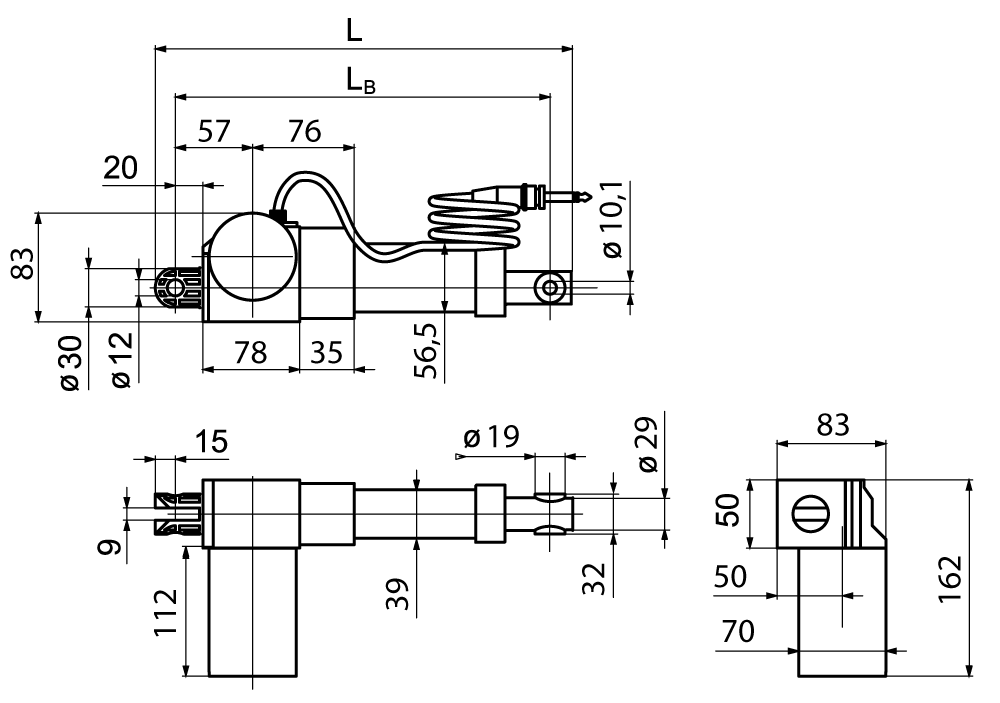

Specifications (automatically extracted)
Mechanical
| Weight | 2.78 kg |
Other characteristics
| Hole distance | 675 mm |
| Length | 701 mm |
| Max compressing load | 1 500 N |
| Max tensil load | 4 000 N |
| Speed | 3 mm/s |
| Stroke length | 500 mm |
Description
For use with control boxes and hand operators GR/I. For universal usage: For operating windows, gates, … 2 speeds. 8 stroke lengths, other lengths on request. For control boxes with 24V DC or 230V AC. Motor voltage 24V DC. Protection class IP66. cable length approx. 1,2m With one hand operator, up to 4 actuators can be operated seperately. Synchronisation control on request. Operating mode 10%, max. 2 minutes. Motor end stop switch integrated. Standard: CE / UL 60601-1 / EN60601-1. Permissible ambient operating temperature: -5°C up to +40°C. Actuators, control boxes and hand operators have to be ordered seperately.
