MÄDLERMÄDLER· Motors & actuators

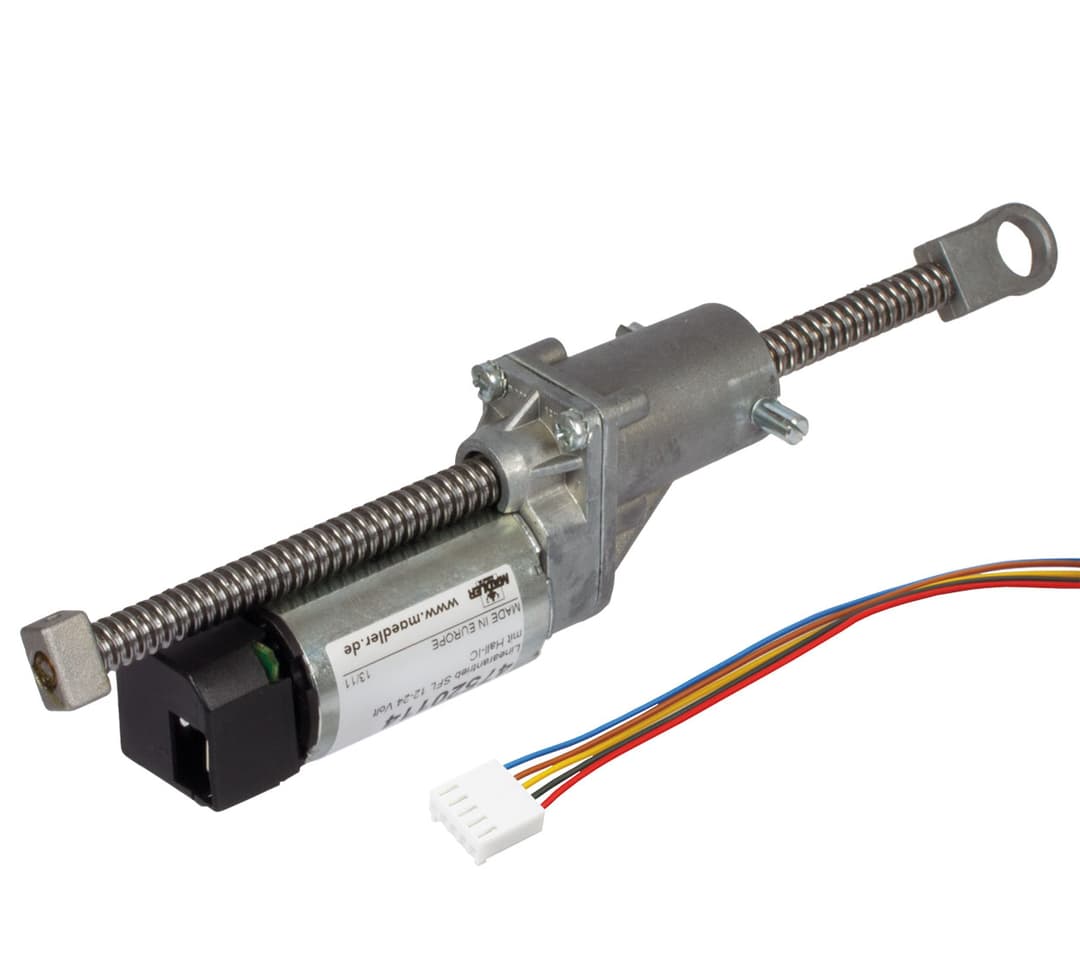

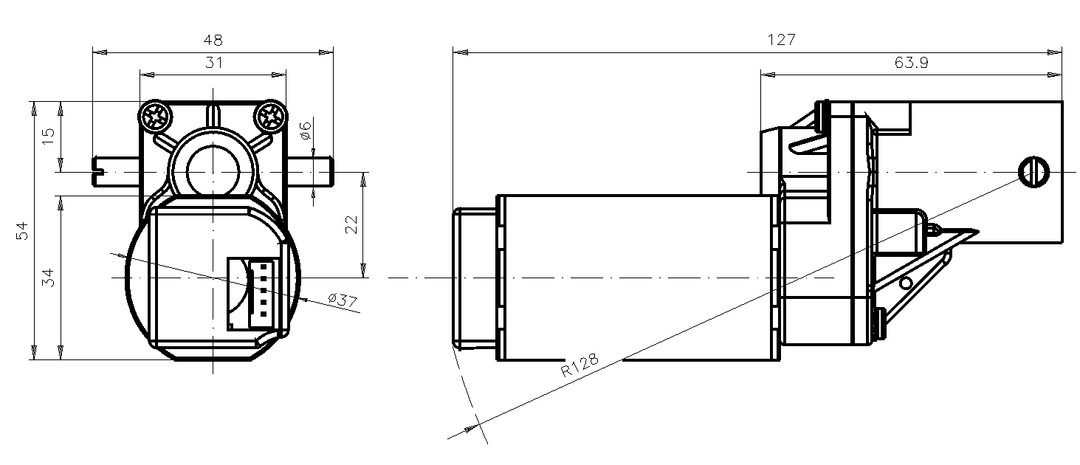

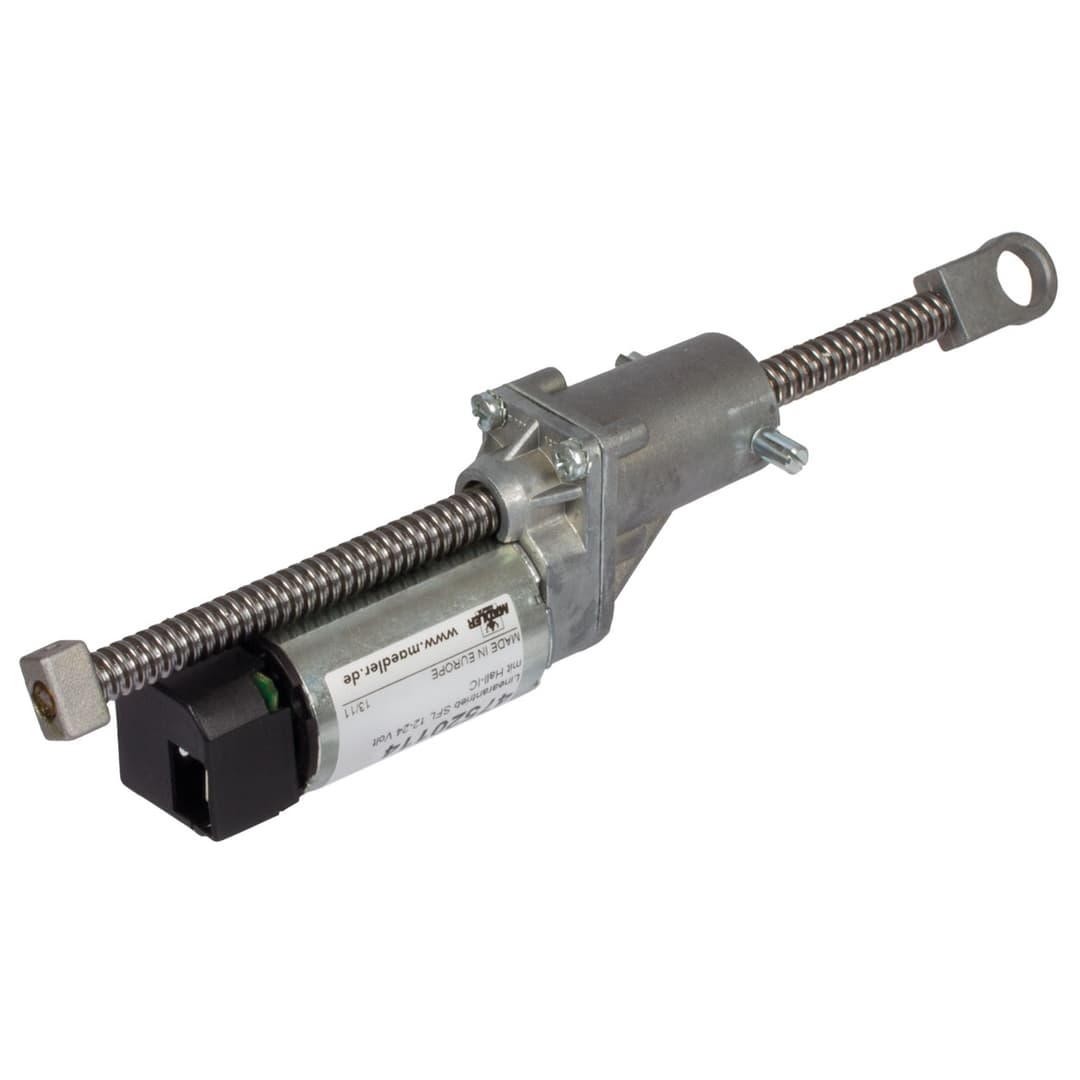

Linear drive SFL with DC-motor operating voltage 12V-24V nominal lifting force 400N without Hall-IC
Manufacturer part no. 47520104
$249.91≈ 217.03 €
Price summary
Listed by MÄDLER at €217.03. Delivered to France, including shipping, VAT and any customs duty, it comes to about €278.44. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €217.03 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €46.41 |
| Total delivered | €278.44 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 12 V |
Mechanical
| Weight | 500 g |
Other characteristics
| Admiss duty cycle at 12v | 50 % |
| Admiss duty cycle at 24v | 30 % |
| Lifting capacity at 12v | 600 N |
| Lifting capacity at 24v | 800 N |
| Lifting capacity nominal | 400 N |
| Lifting speed at 12v | 20 mm/s |
| Lifting speed at 24v | 40 mm/s |
| Nominal current | 3.6 A |
| Article | Lifting device |
| Ratio | 12:1 |
Description
Housing: Motor: Steel, zinc-plated. Gearbox: Aluminium. Can be mounted in any position. Gearbox: Metal gears, trapezoidal thread nuts made from plastic. Bearing: Plain bearings. Lubrication: Spindle nut must be greased by the customer. Motor: DC motor 12 V or 24 V switching voltage, interference-free. Change the direction of rotation by switching the polarity. Protection class acc. to EN 60529: IP 20. Operating mode as per VDE 0530: S2. Universal use linear drives, e.g. for actuating devices. For Spindle Tr. 10 x 3 mm. The required spindle length depends on the required stroke length. The spindles have to be ordered separately. Mounting eye and stop block for spindle ends are included with the linear drive.
