Actuator MM 95 speed 10.5 mm/sec stroke 300 mm 3x 400V AC 50Hz

MÄDLERMÄDLER· Motors & actuators

Actuator MM 95 speed 10.5 mm/sec stroke 300 mm 3x 400V AC 50Hz

Name: Actuator MM 95 speed 10.5 mm/sec stroke 300 mm 3x 400V AC 50Hz
Brand: MÄDLER
Price: 2465.49 USD
Availability: BackOrder

Manufacturer part no. 47539529

$2465.49≈ 2141.11 €

Price summary

Listed by MÄDLER at €2141.11. Delivered to France, including shipping, VAT and any customs duty, it comes to about €2587.33. Prices last checked on 2026-08-05.

Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.

On backorderlead time 14 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€2141.11
Shipping	€15.00
VAT (20%)	€431.22
Total delivered	€2587.33

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

Specifications (automatically extracted)

Electrical

Power	180 W
Voltage	400 V

Mechanical

Weight

8.8 kg

Other characteristics

Admiss duty cycle	15 %
Length	479 mm
Lifting capacity	2 740 N
Lifting speed	10.5 mm/s
Outer diameter	95 mm
Stroke length	300 mm
Voltage	3x 400V A V (AC)

Description

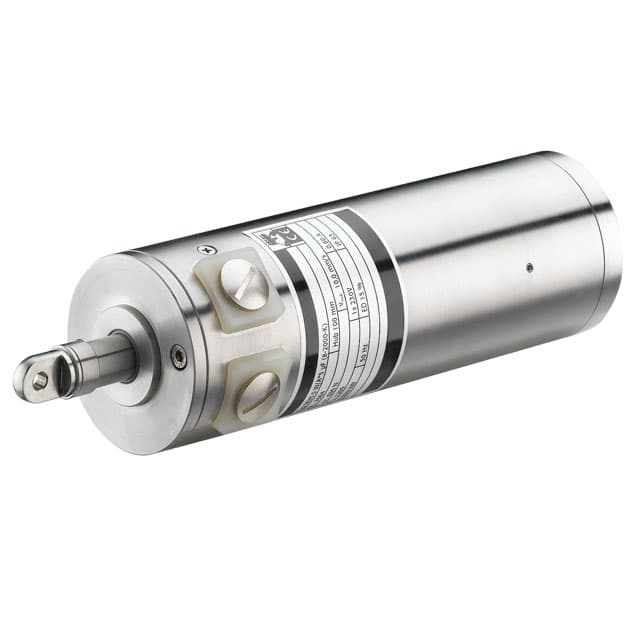

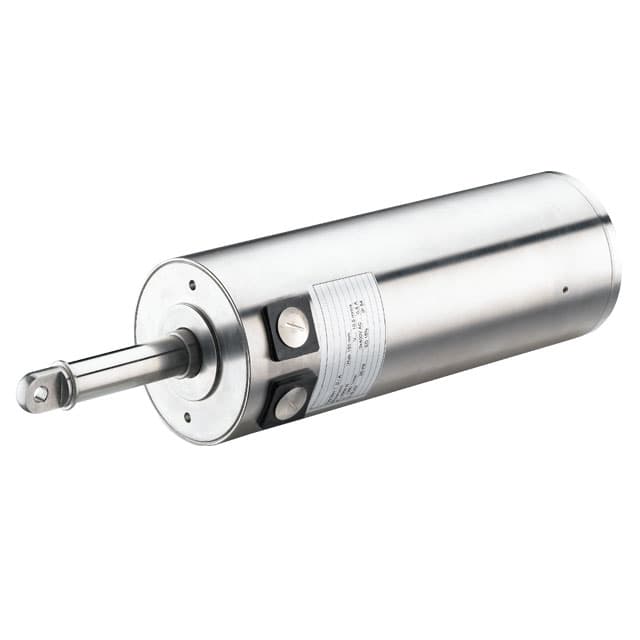

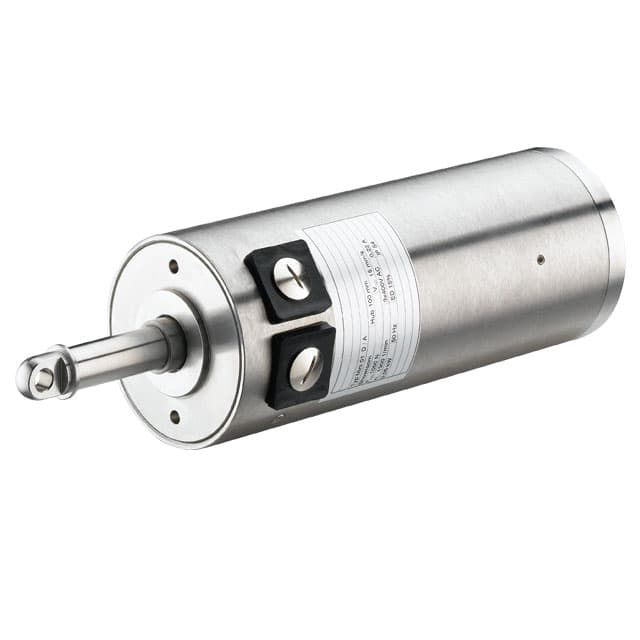

The MÄDLER® Mini linear drives are electrical lifting cylinders in particularly reliable design. High performance in relation to the size. Light weight and clean, with low operating costs. Durable and maintenance-free, lubricated for lifetime. Integrated end switch, non-adjustable. Integrated safety switch. Integrated thermo protection switch. Dynamically self-locking. Protection IP 65 (against hose water). Delivery with connected power cable, length ≈ 1 meter. • Outside-Ø 95 mm. • Voltage 1x 230V AC 50Hz or 3x 400V AC 50Hz. • Force up to 3.500 N. • Speed 0.5 to 10.5 mm/s. • Standard stroke lengths 150, 200 and 300 mm. • Housing, piston rod and mounting elements from stainless steel.
