Actuator MM 115 speed 1.5 mm/sec stroke 175 mm 3x 400V AC 50Hz

MÄDLERMÄDLER· Motors & actuators

Actuator MM 115 speed 1.5 mm/sec stroke 175 mm 3x 400V AC 50Hz

Name: Actuator MM 115 speed 1.5 mm/sec stroke 175 mm 3x 400V AC 50Hz
Brand: MÄDLER
Price: 2883.61 USD
Availability: BackOrder

Manufacturer part no. 47541501

$2883.61≈ 2504.22 €

Price summary

Listed by MÄDLER at €2504.22. Delivered to France, including shipping, VAT and any customs duty, it comes to about €3023.06. Prices last checked on 2026-08-05.

Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.

On backorderlead time 14 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€2504.22
Shipping	€15.00
VAT (20%)	€503.84
Total delivered	€3023.06

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

Specifications (automatically extracted)

Electrical

Power	150 W
Voltage	400 V

Mechanical

Weight

16.5 kg

Other characteristics

Admiss duty cycle	50 %
Length	348 mm
Lifting capacity	14 000 N
Lifting speed	1.5 mm/s
Outer diameter	115 mm
Stroke length	175 mm
Voltage	3x 400V A V (AC)

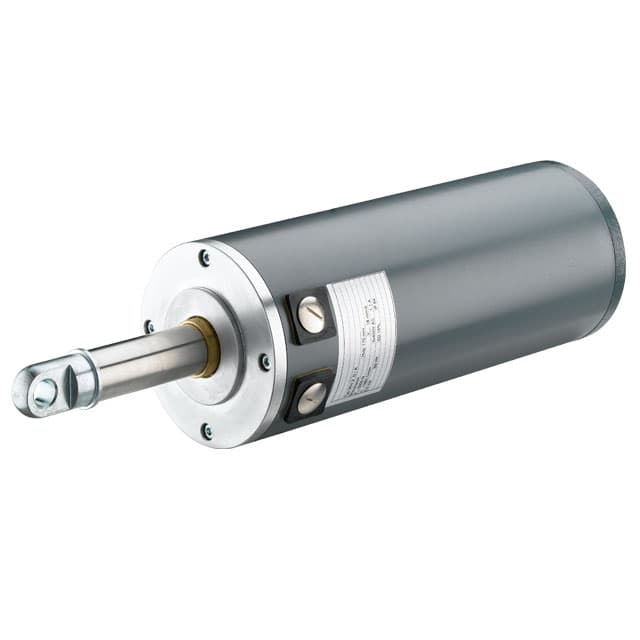

Description

The MÄDLER® Mini linear drives are electrical lifting cylinders in particularly reliable design. High performance in relation to the size. Light weight and clean, with low operating costs. Durable and maintenance-free, lubricated for lifetime. Integrated end switch, non-adjustable. Integrated safety switch. Integrated thermo protection switch. Dynamically self-locking. Protection IP 65 (against hose water). Delivery with connected power cable, length ≈ 1 meter. • Outside-Ø 115 mm. • Voltage 3x 400V AC 50Hz. • Force up to 14.000 N. • Speed 1.5 to 18 mm/s. • Standard stroke lengths 175 and 300 mm. • Housing from steel, RAL 7031 blue-grey coated.
