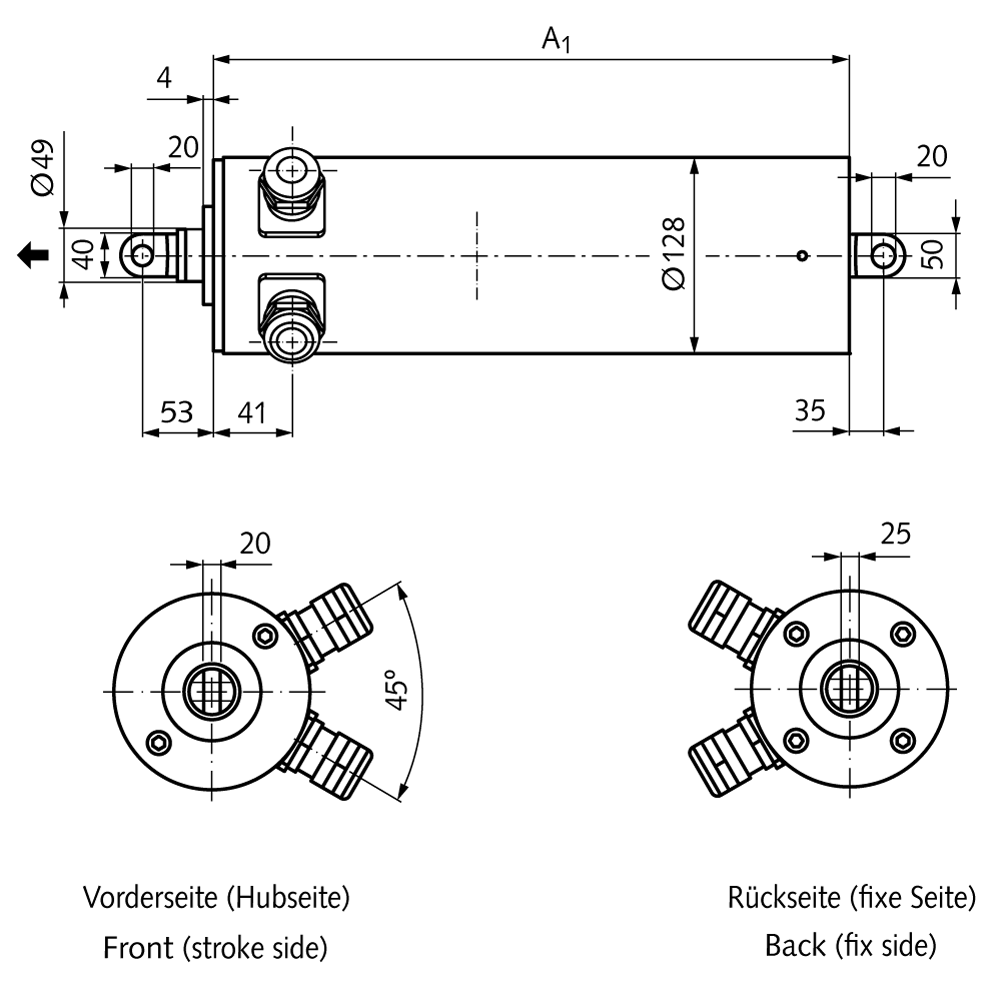

Actuator MM 128 speed 4.4 mm/sec stroke 300 mm 3x 400V AC 50Hz
Manufacturer part no. 47542805
$4605.08≈ 3999.20 €
Price summary
Listed by MÄDLER at €3999.20. Delivered to France, including shipping, VAT and any customs duty, it comes to about €4817.04. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €3999.20 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €802.84 |
| Total delivered | €4817.04 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Power | 750 W |
| Voltage | 400 V |
Mechanical
| Weight | 25 kg |
Other characteristics
| Admiss duty cycle | 40 % |
| Length | 533 mm |
| Lifting capacity | 20 000 N |
| Lifting speed | 4.4 mm/s |
| Outer diameter | 128 mm |
| Stroke length | 300 mm |
| Voltage | 3x 400V A V (AC) |
Description
The MÄDLER® Mini linear drives are electrical lifting cylinders in particularly reliable design. High performance in relation to the size. Light weight and clean, with low operating costs. Durable and maintenance-free, lubricated for lifetime. Integrated end switch, non-adjustable. Integrated safety switch. Integrated thermo protection switch. Dynamically self-locking. Protection IP 65 (against hose water). Delivery with connected power cable, length ≈ 1 meter. • Outside-Ø 128 mm. • Voltage 3x 400V AC 50Hz. • Force up to 26.000 N. • Speed 1.1 to 17.5 mm/s. • Standard stroke lengths 175, 300 and 500 mm. • Housing from steel, RAL 7031 blue-grey coated.
