Central drive system for travel-wheel system RB/I size 250 up to distance 1500mm diameter 45mm length approx. 1070mm
Manufacturer part no. 48035684
$1215.77≈ 1052.25 €
Price summary
Listed by MÄDLER at €1052.25. Delivered to France, including shipping, VAT and any customs duty, it comes to about €1280.70. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 56 d
Estimated landed cost
| Item | €1052.25 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €213.45 |
| Total delivered | €1280.70 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 13.5 kg |
Other characteristics
| For distance up to | 1 500 mm |
| Shaft diameter | 45 mm |
| Shaft length approx | 1 070 mm |
| Wheel block size | 250 |
Description

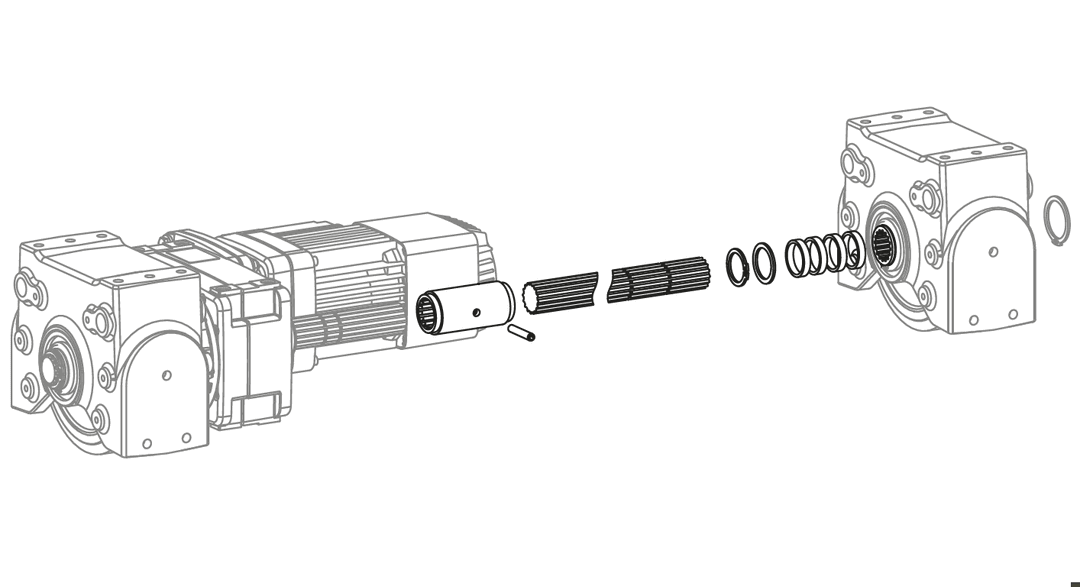

Material: Splined shaft, coupling, washers and rings made of steel, shaft protection made of plastic. Two sizes available suiting travel-wheel system 200 and 250. Two length for gauges up to 1500 mm or up to 2900 mm. Consisting of: Splined shaft, coupling with pin, shaft protection, washers and retaining rings. The central-drive set serves to combine two travel-wheel sets RB/I with a geared motor RBM/I to make up a central drive. To achieve this, the shaft is shortened to the required length on the coupling side, then the shaft protection cap is taken off the geared motor and the shafts are connected using the rigid coupling. The pin serves as stop inside the coupling. The shaft is fixed in the travel-wheel system with the retaining rings.
