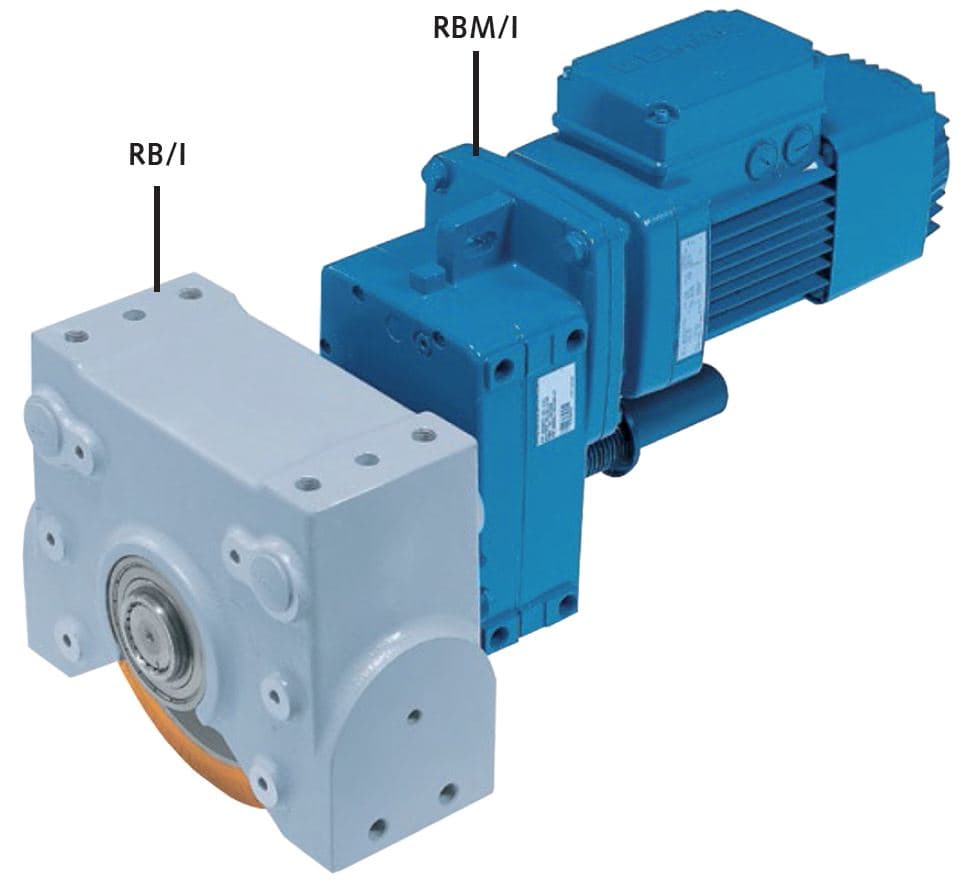

Geared motor RBM/I for travel-wheel system RB/I size 200 motor type 90B8/2 400V 50Hz shaft diameter 35mm i=23:1
Manufacturer part no. 48222446
$5283.64≈ 4588.48 €
Price summary
Listed by MÄDLER at €4588.48. Delivered to France, including shipping, VAT and any customs duty, it comes to about €5524.18. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 56 d
Estimated landed cost
| Item | €4588.48 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €920.70 |
| Total delivered | €5524.18 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 400 V |
Mechanical
| Weight | 46 kg |
Other characteristics
| Current | 2.3 A |

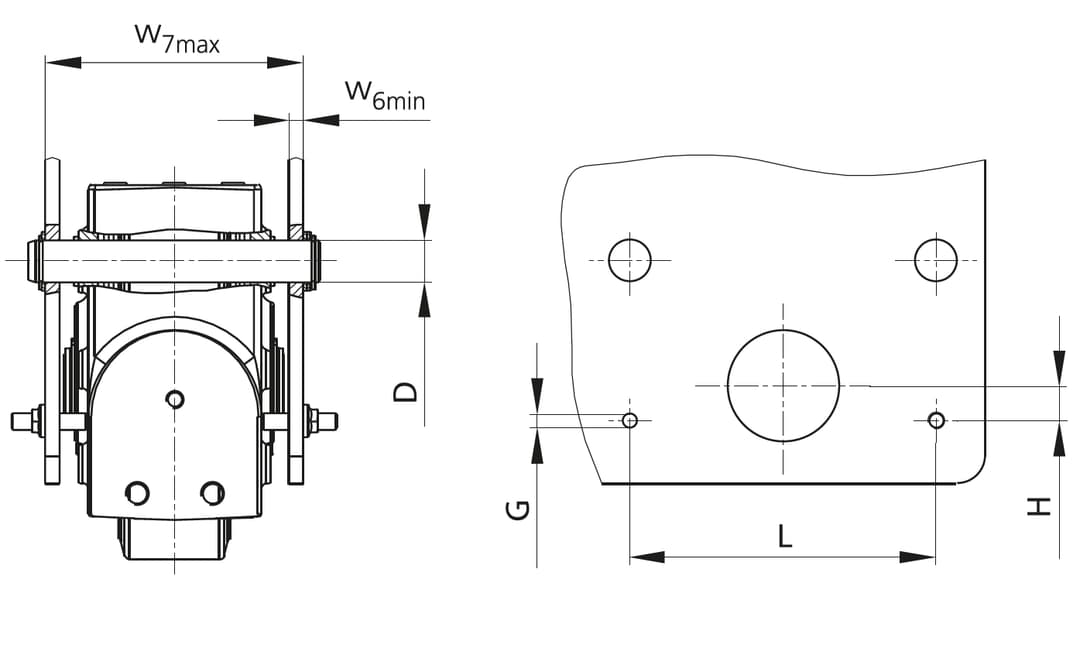

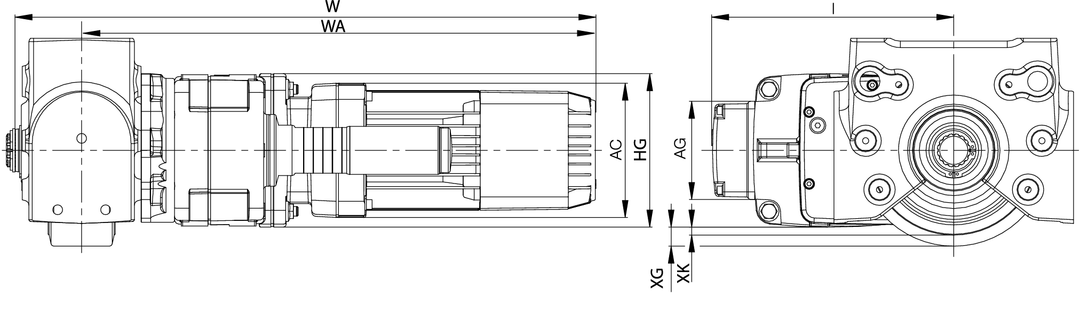

| Table for dimensions | 4 |
| Motor type | 90B8/2 |
| Ratio | 23:1 |
Description
Material: Housing: Aluminium, painted blue (RAL 5009). Gears: bevel-gear system, case hardened, fatigue endurable. Lubrication: Mineral oil. Motor: Three-phase AC Motor 400 V 50 Hz, dual speeed. Other motor and gear box versions (e.g. with frequency inverter or angular gear) on request. Ready-to-mount dual-speed geared motors incl. adaptor flange (as torque support) to be combined with travel-wheel sets RB/I. The mounting position can be modified in steps of 15°. Single Wheel Drive: one geared motor RBM/I is flange-mounted onto one travel-wheel system RB/I. In carriages two opposing travel-wheel sets have to be powered. Central Drive Set: the geared motor is flange-mounted onto the travel-wheel system. The connection with the opposing travel-wheel system is done with a central drive set (this set has to be ordered separately). The connecting shaft (output shaft) is already mounted on the geared motors (covered with protection sleeve and protection cap).
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
MÄDLERBackorder
Bolt connecting set for travel-wheel system RB/I size 200 bolt diameter 21mm
€132.89$153.02
View at seller ↗
MÄDLERBackorder

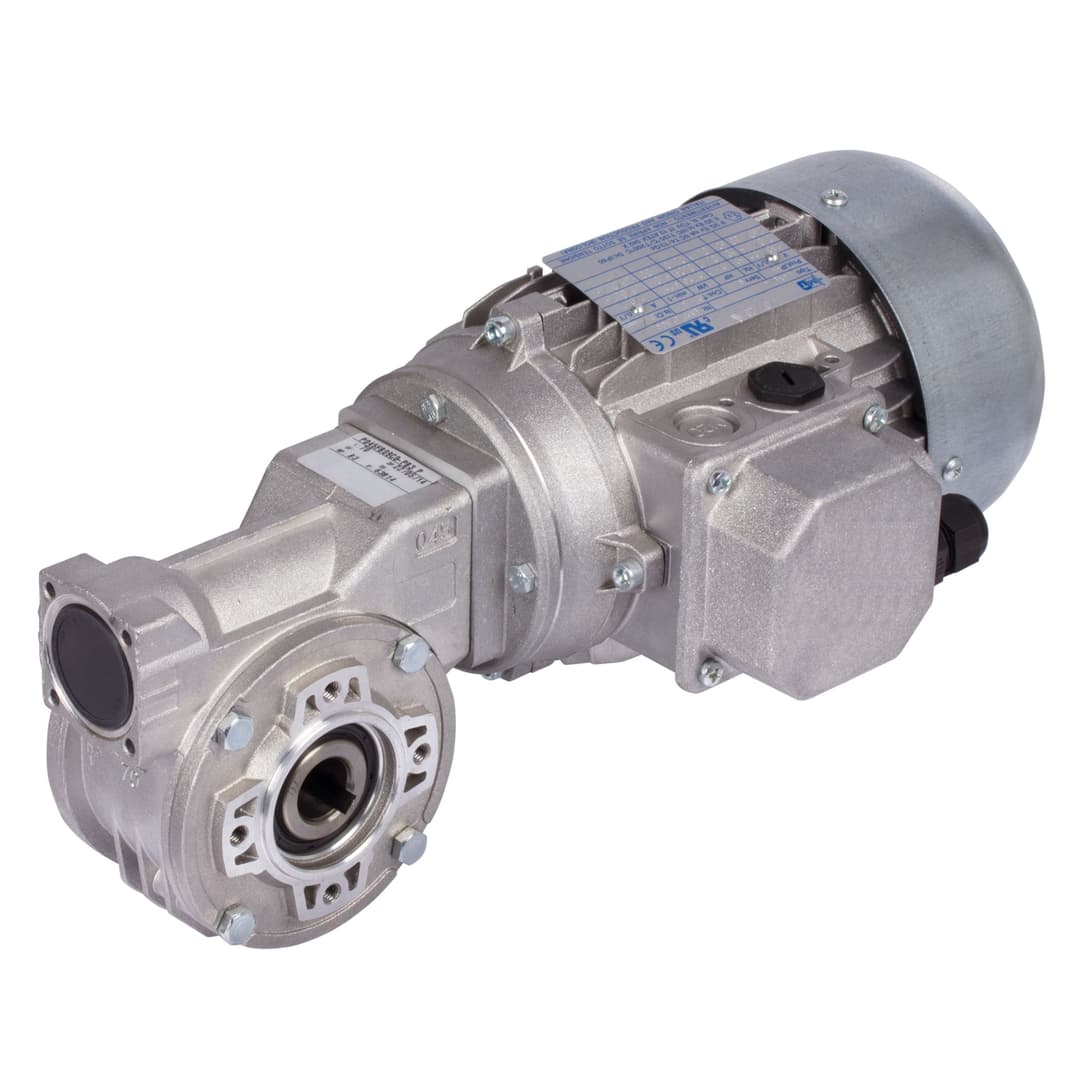

Worm geared motor HMD/I basic version gearbox size 030 n2=200 rpm 0.09kW 230/400V 50Hz IE1 output hollow shaft (For operating instructions please visit the download area of our website www.maedler.de)
