MÄDLERMÄDLER· Bearings, Bushes, Seals

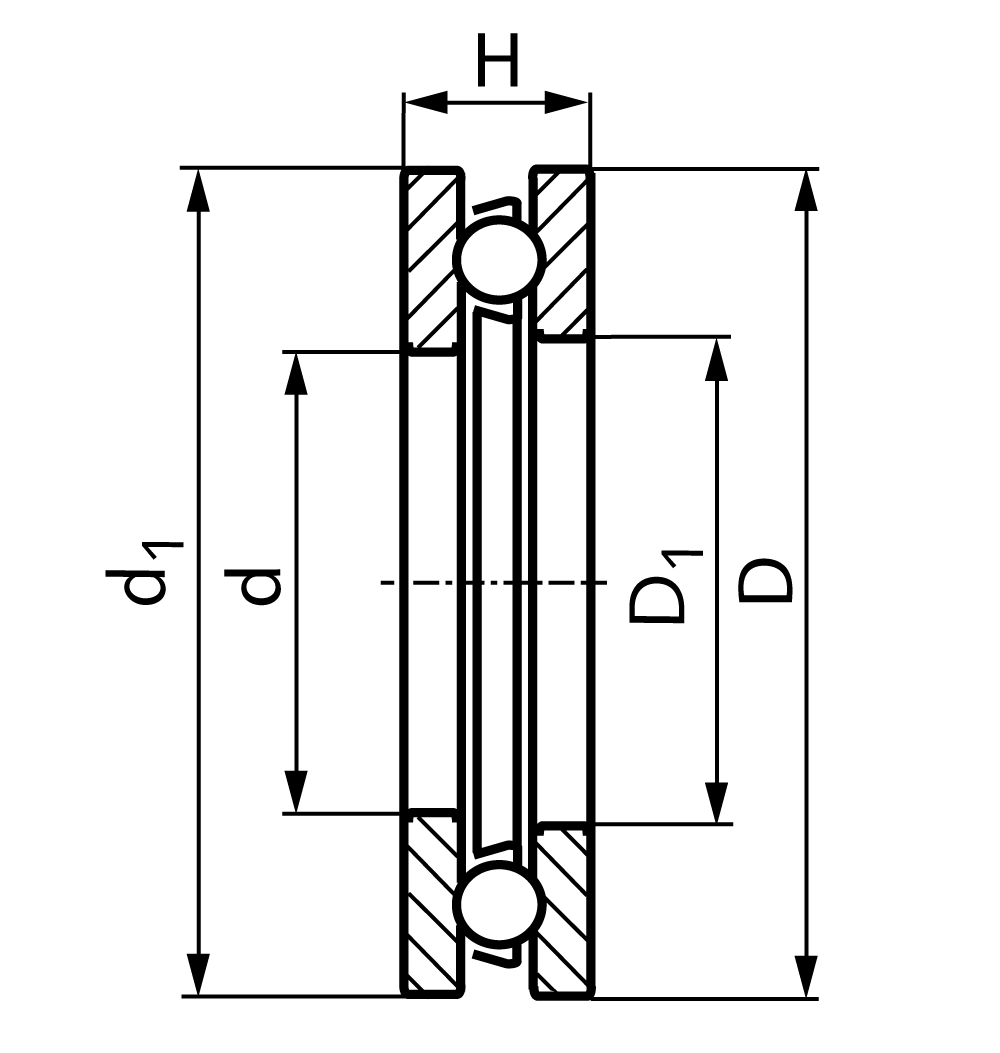

single direction thrust ball bearing 51102 inner Ø 15mm outer Ø 28mm height 9mm
Manufacturer part no. 51102-MAE
$3.03≈ 2.63 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €2.63 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.53 |
| Total delivered | €21.16 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 23 g |
Other characteristics
| Inner diameter bottom part | 16 mm |
| Inner diameter upper part | 15 mm |
| Load rating dynamic | 8.8 kN |
| Outer diameter bottom part | 28 mm |
| Outer diameter upper part | 28 mm |
| Radiuses | 0.3 mm |
| Static load rating | 12.6 kN |
| Width | 9 mm |
| Material | Roller bearing steel |
| Speed limit | 8400 min-1 |
| Surface | Blank |
Description

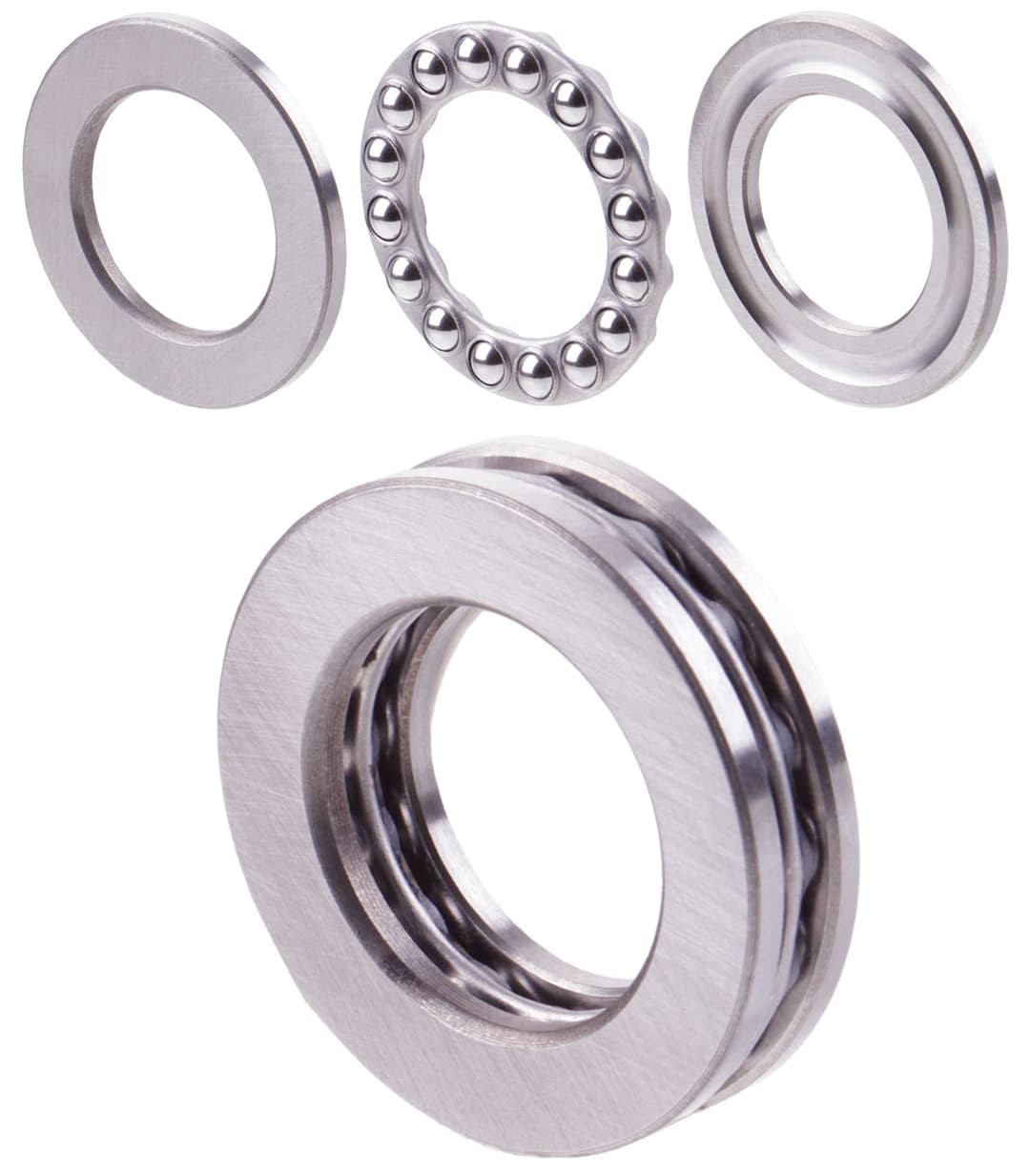

Material: Bearing steel. Thrust Ball Bearings for single direction in brand quality from MAEDLER®. For axial load (no radial load permitted). Usable for high speed. These bearings exist from lose parts: Shaft ring (with ground bore), housing ring (with ground outer diameter and bigger bore) and ball cage with balls. The rings must not be confused with each other. Temperature range: -30°C to +125°C. Other versions or sizes on request.
