MÄDLERMÄDLER· Mechanics & transmission
Manufacturer part no. 60061000
Listed by MÄDLER at €49.93. Delivered to France, including shipping, VAT and any customs duty, it comes to about €77.92. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €49.93 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.99 |
| Total delivered | €77.92 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
MAEDLER 60061000 NSMP
New, open box · sold by industrial_blueline_special · ships from US
Imported from outside the EU — duties and VAT included in the delivered cost; customs formalities and delays are not
€40.09
billed $45.00
€215.65 delivered
Third-party listings on eBay, matched to this product by its part number or title. Robotitem neither sells nor warrants these items: condition, stock and lead times are the seller's, and a listing disappears once sold. Delivered cost includes the seller's actual shipping.

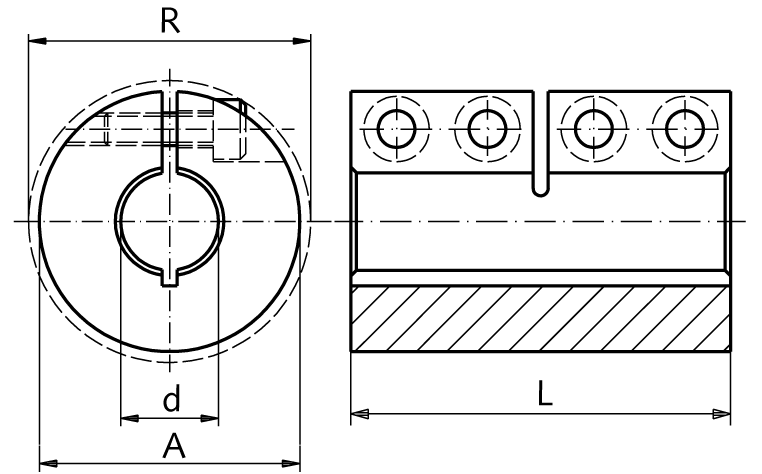

| Weight | 185 g |
| Bore diameter | 10 mm |
| Max misalignment angle | 0 ° |
| Max misalignment axial | 0 mm |
| Max misalignment radial | 0 mm |
| Max outer diameter over screw head | 32.7 mm |
| Max speed | 4 U/min |
| Max torque | 85 Nm |
| Outer diameter | 29 mm |
| Temperature max. | 175 °C |
| Temperature min. | -40 °C |
| Tightening torque fastening screws | 4.6 Nm |
| Total length | 45 mm |
| Coupling type | Rigid one-piece stlye |
Material: Steel C45, black oxide finish. Temperature range from -40°C to +175°C. Maximum speed 4000 rpm. The screws DIN 912 – 12.9 used in all couplings are covered with a layer of polyamide. Thus the bolts do not loosen with vibrations Bore tolerance: +0,051 mm. The torques in the table are maximum values which can only be achieved with perfect mounting and dimensional accuracy of the shaft.
Semantically close products available for less — check the specs match your need.
| Electrically insulating | No |
| Material | Steel (1045) |
| Screw iso 4762 thread size x length | M 4 x 12 |
| Stainless | No |
| Surface | Black oxide finish |
| With keyway | No |
