MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

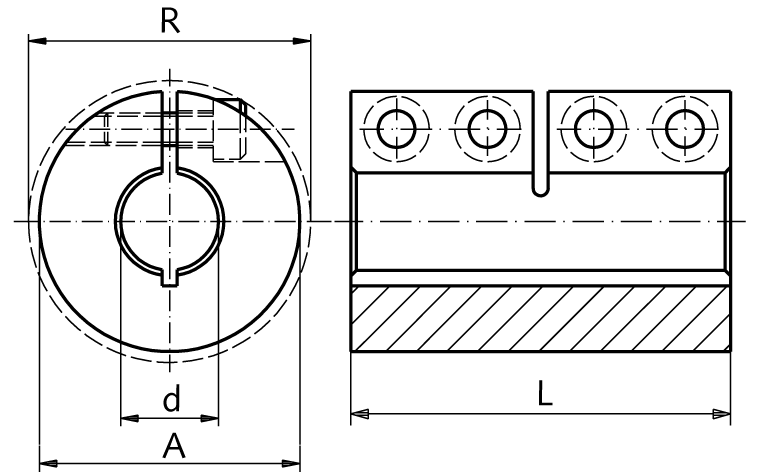

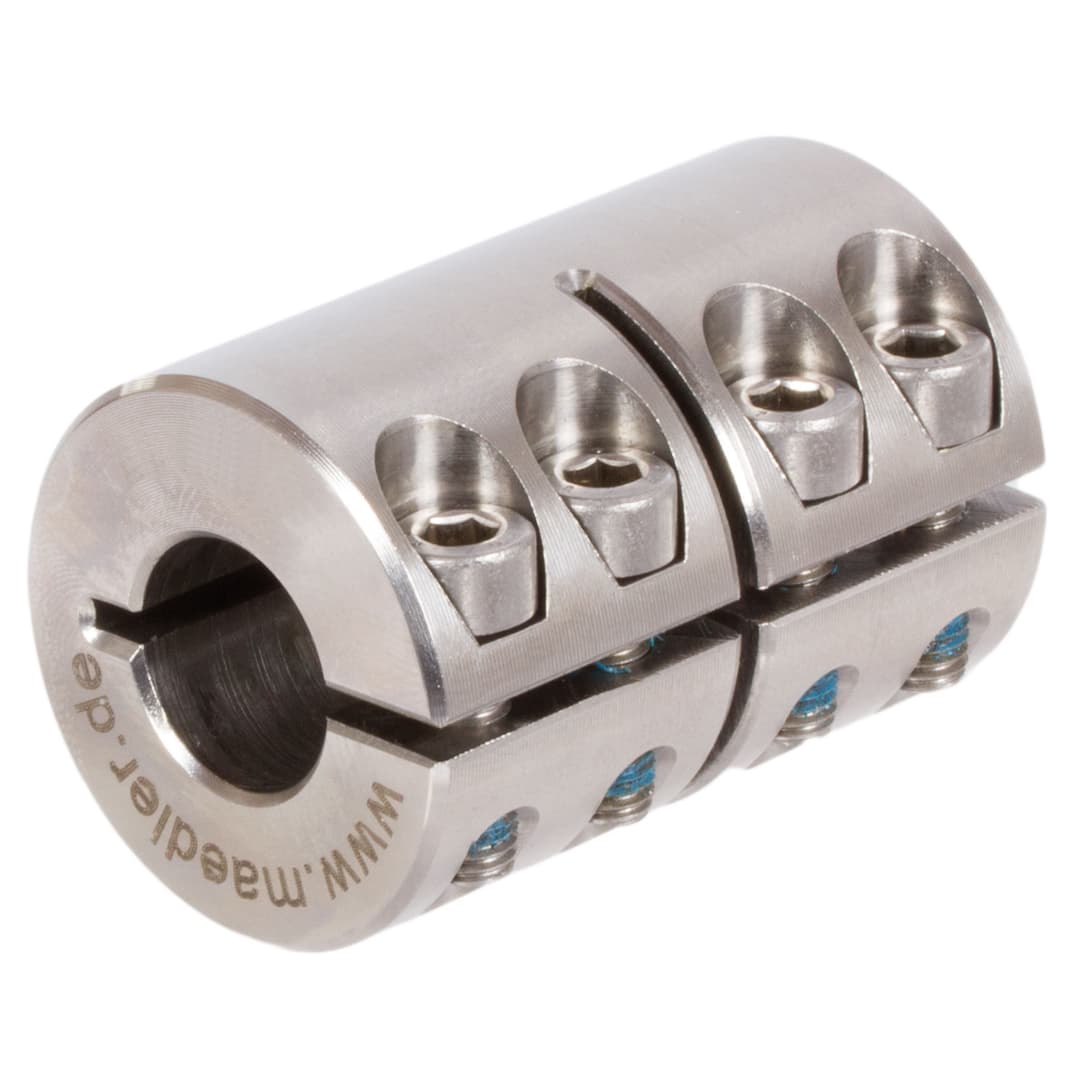

One-piece clamp coupling MAS both sides bore 5mm without keyway stainless steel 1.4305 with bolts DIN 912 A2-70
Manufacturer part no. 60099605
$99.41≈ 86.33 €
In stock — 20 unitslead time 14 d
Estimated landed cost
| Item | €86.33 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €20.27 |
| Total delivered | €121.60 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 47 g |
Other characteristics
| Bore diameter | 5 mm |
| Max misalignment angle | 0 ° |
| Max misalignment axial | 0 mm |
| Max misalignment radial | 0 mm |
| Max outer diameter over screw head | 21.2 mm |
| Max speed | 4 U/min |
| Max torque | 6 Nm |
| Outer diameter | 18 mm |
| Temperature max. | 175 °C |
| Temperature min. | -40 °C |
| Tightening torque fastening screws | 1.1 Nm |
| Total length | 30 mm |
| Coupling type | Rigid one-piece stlye |
Description
Material: Stainless steel 1.4305 (AISI 303). Temperature range from -40°C to +175°C. Maximum speed 4000 rpm. The screws DIN 912 – A2-70 used in all couplings are covered with a layer of polyamide. Thus the bolts do not loosen with vibrations Bore tolerance: +0,051 mm. The torques in the table are maximum values which can only be achieved with perfect mounting and dimensional accuracy of the shaft.
