Manufacturer part no. 60099950
Listed by MÄDLER at €522.93. Delivered to France, including shipping, VAT and any customs duty, it comes to about €645.52. Prices last checked on 2026-10-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €522.93 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €107.59 |
| Total delivered | €645.52 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 3.52 kg |
| Bore diameter | 50 mm |
| Max misalignment angle | 0 ° |
| Max misalignment axial | 0 mm |
| Max misalignment radial | 0 mm |
| Max outer diameter over screw head | 93.2 mm |
| Max speed | 4 U/min |
| Max torque | 1 006 Nm |
| Outer diameter | 85 mm |
| Temperature max. | 175 °C |
| Temperature min. | -40 °C |
| Tightening torque fastening screws | 46 Nm |
| Total length | 124 mm |

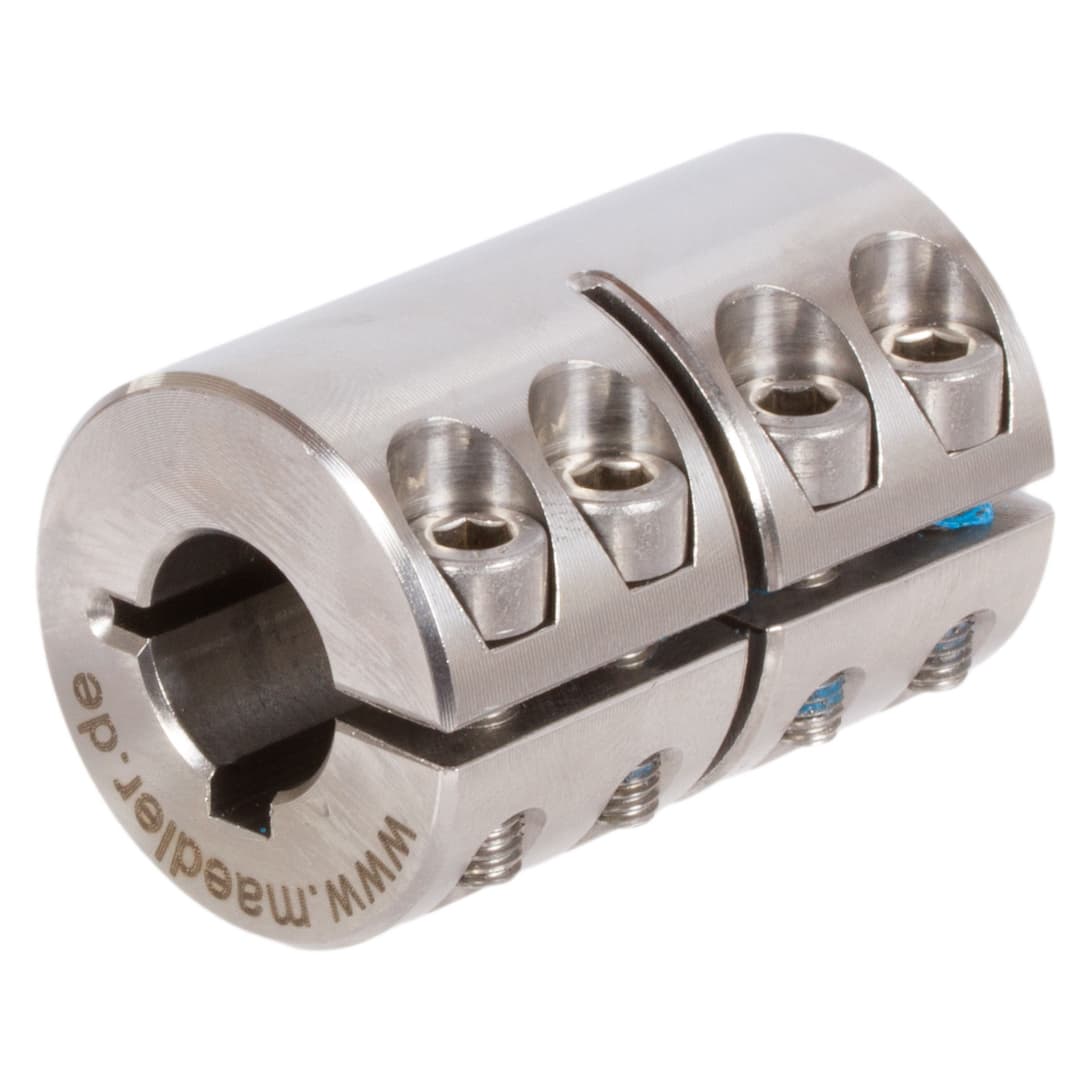

| Coupling type | Rigid two-piece stlye |
Material: Stainless steel 1.4305 (AISI 303). Temperature range from -40°C to +175°C. Maximum speed 4000 rpm. The screws DIN 912 – A2-70 used in all couplings are covered with a layer of polyamide. Thus the bolts do not loosen with vibrations Bore tolerance: +0,051 mm. Feather Key Groove DIN 6885/1, Tolerance P9. The torques in the table are maximum values which can only be achieved with perfect mounting and dimensional accuracy of the shaft.
Semantically close products available for less — check the specs match your need.
| Electrically insulating | No |
| Material | Stainless steel (303) |
| Screw iso 4762 thread size x length | M 10 x 25 |
| Stainless | Yes |
| Surface | Blank |
| With keyway | Yes |
