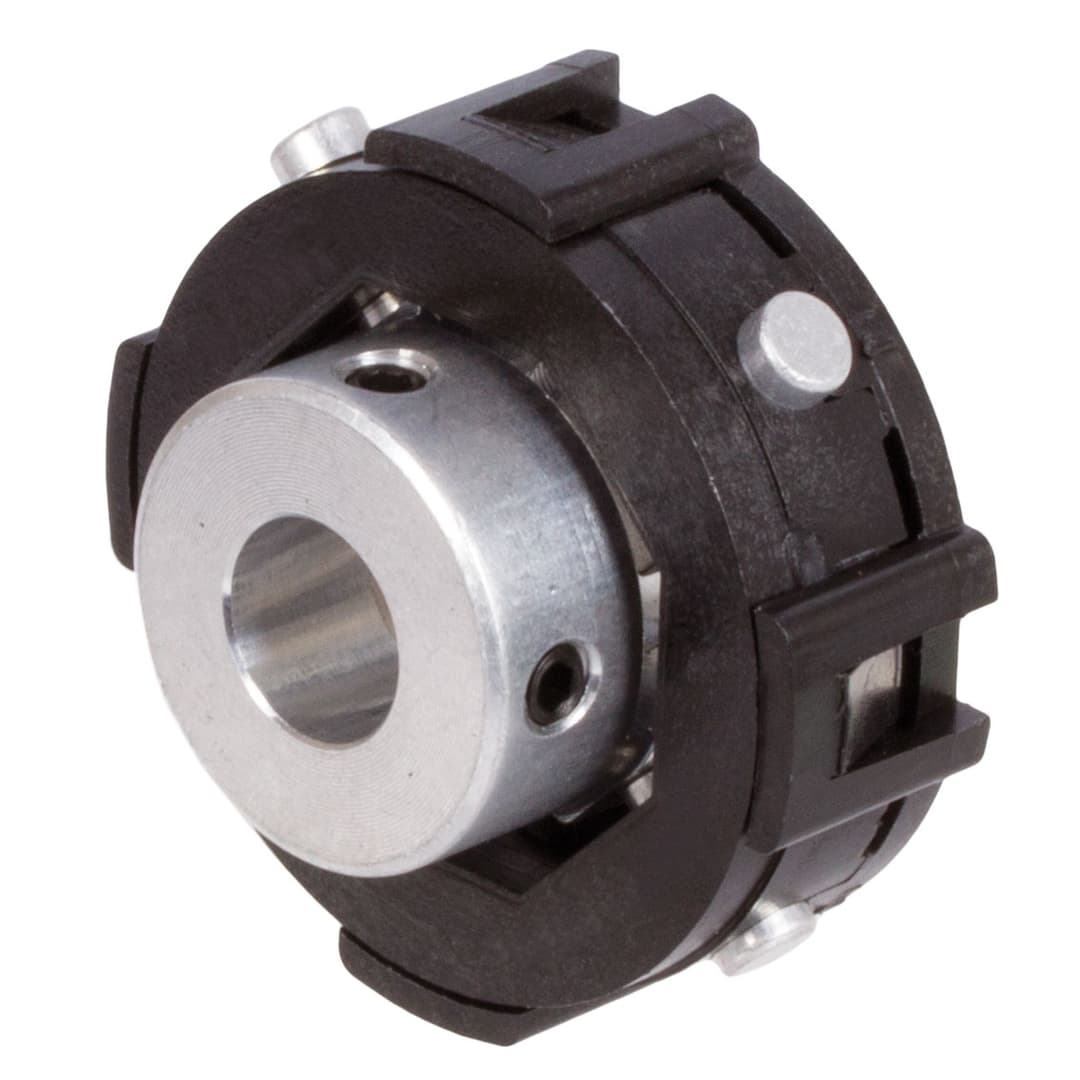

Name: Torsionally-stiff coupling HU bore 6mm max. torque 3.5 Nm outside diameter 41.4mm
Brand: MÄDLER
Price: 59.00 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Torque	35.689 kg·cm
Weight	30 g

Other characteristics

Bore diameter	6 mm
Max misalignment angular at 3000 min 1	2 °
Max misalignment axial	0 mm
Max misalignment radial at 3000 min 1	0.25 mm
Max speed	3 U/min
Max torque	3.5 Nm

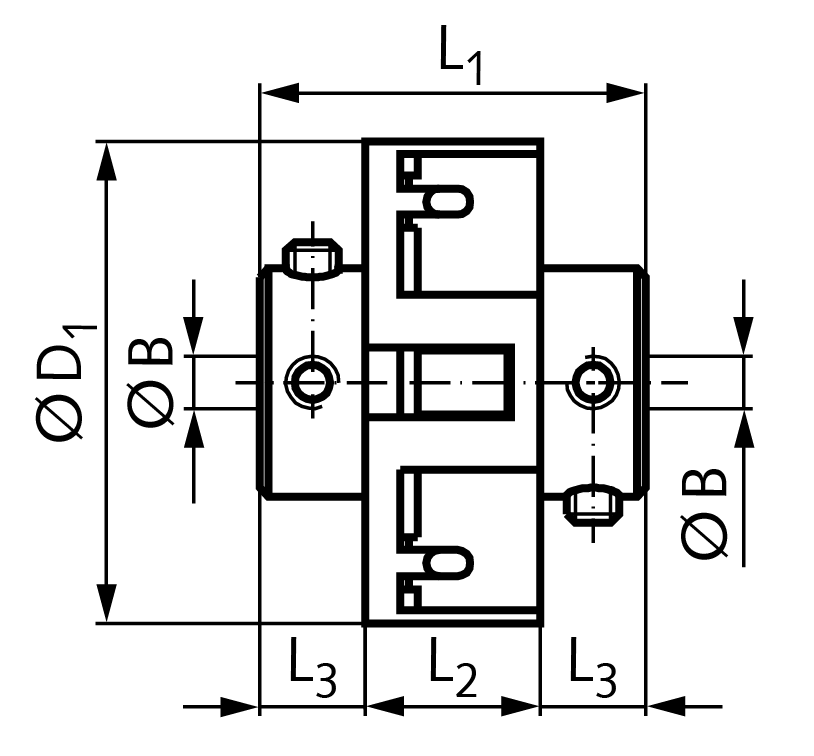

Outer diameter d1 mm	41.4 mm
Stat breaking torque	10.5 Nm
Temperature max.	60 °C
Temperature min.	-20 °C
Torsional stiffness	299 Nm/rad
Total length	28.4 mm

Description

Material: Up to D1 = 28 mm hubs made of brass, chromated and passivated. From D1 = 41,4 mm aluminium alloy with iridite NCP finish.Torque ring made of black polyacetal. These unique, zero backlash, general purpose couplings provide electrical insulation. They are designed for the lower torque range and offer generous angular and radial misalignment compensation. Their axial stiffness is unique and they can anchor unrestricted shafts or perform light push/pull duties. Applications: Ideal for stepper motors due to the damping properties of plastic torque rings. Positioning drives, position encoders and incremental or absolute encoders, pumps etc. Temperature range: -20ºC to +60ºC. 1) At lower speeds the couplings can compensate up to +/-1 mm radial and 10º angular displacement. 2) Operating factors: see coupling HB.
